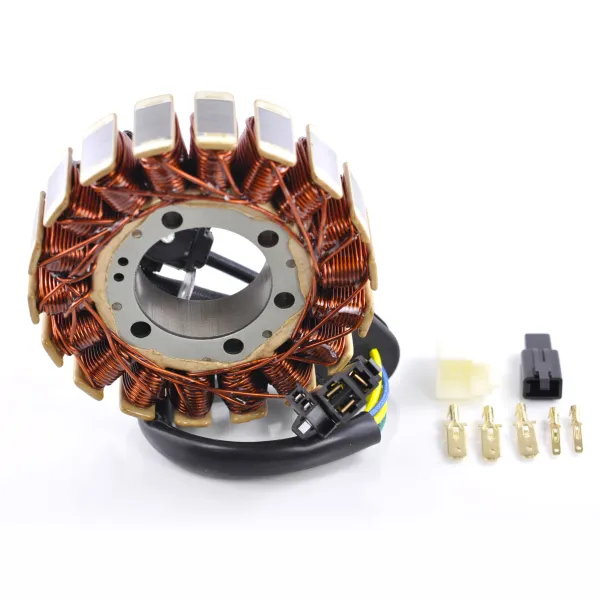

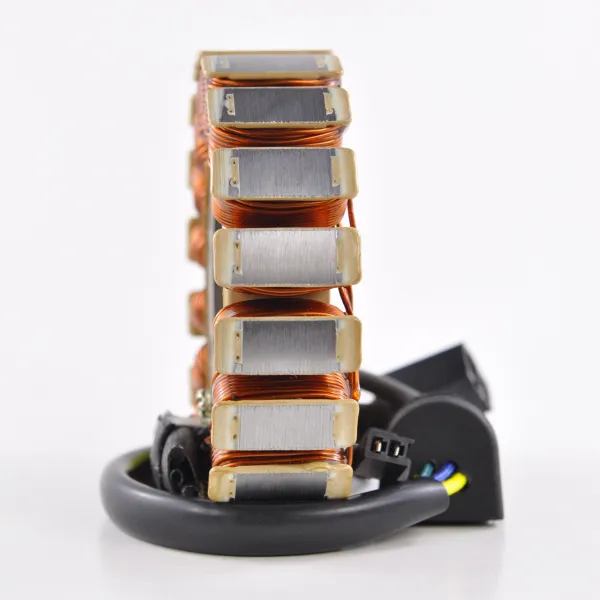

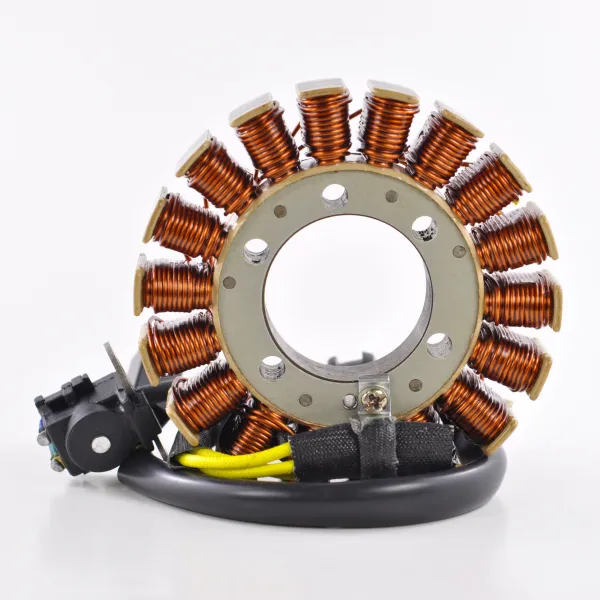

Stator Suzuki GSX1300 Hayabusa OEM 32101-24F20 32101-24F30

Stator 500W

Resistant to 200 degrees Celsius

Stator Suzuki GSX1300 Hayabusa 2008-2024

OEM 32101-24F20 32101-24F30

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 55 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%
