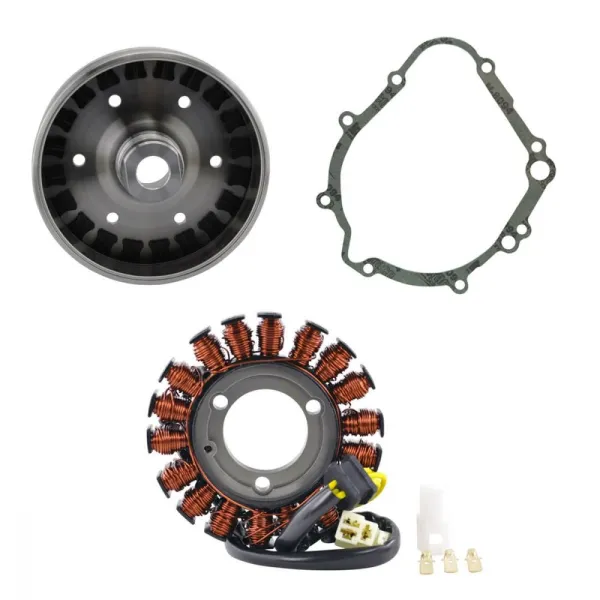

Rotor Stator Kit Suzuki GSXR 600 750 OEM 31401-01H00 31402-01H20 11483-01H00

2024 Suzuki GSXR 750
2024 Suzuki GSXR 600
2023 Suzuki GSXR 750
2023 Suzuki GSXR 600
2022 Suzuki GSXR 750
2022 Suzuki GSXR 600
2021 Suzuki GSXR 750
2021 Suzuki GSXR 600
2019 Suzuki GSXR 750
2019 Suzuki GSXR 600
2018 Suzuki GSXR 750
2018 Suzuki GSXR 600
2017 Suzuki GSXR 750
2017 Suzuki GSXR 600
2016 Suzuki GSXR 750
2016 Suzuki GSXR 600
2015 Suzuki GSXR 750
2015 Suzuki GSXR 600
2014 Suzuki GSXR 750
2014 Suzuki GSXR 600
2013 Suzuki GSXR 750
2013 Suzuki GSXR 600
2009 Suzuki GSXR 750
2009 Suzuki GSXR 600
2008 Suzuki GSXR 750
2008 Suzuki GSXR 600
2007 Suzuki GSXR 750
2007 Suzuki GSXR 600
2006 Suzuki GSXR 750
2006 Suzuki GSXR 600

OEM 31402-01H00
31402-01H20
31402-01H10

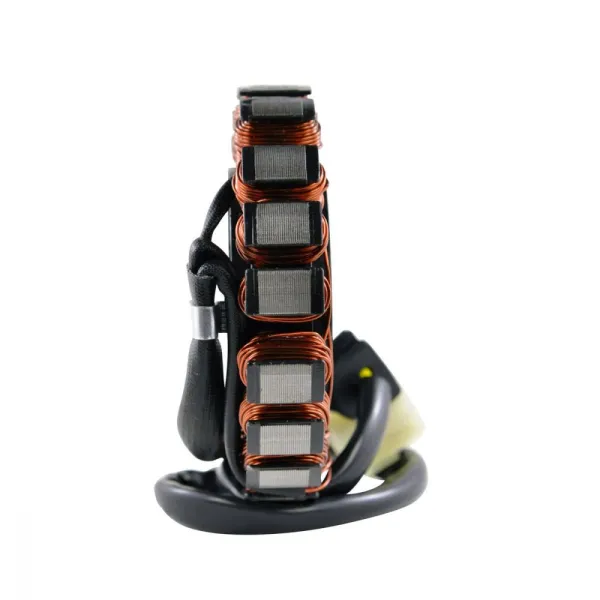

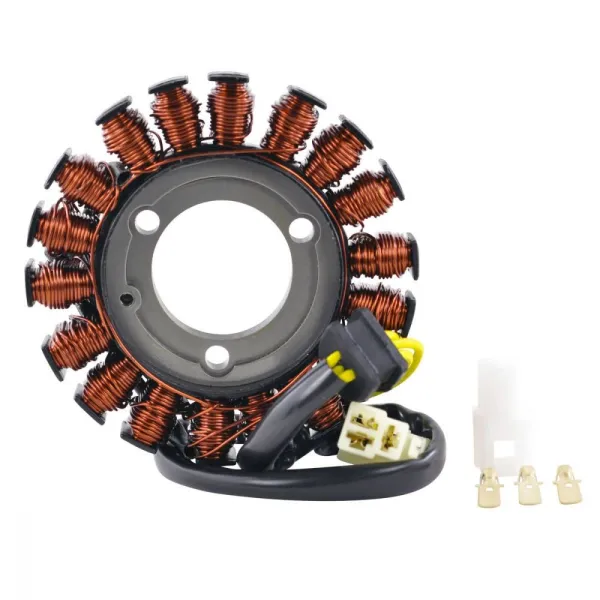

Stator Dimensions

Interior diameter: 38 mm

Exterior diameter: 107 mm

Thickness: 12 mm

Length of wires stator to grommet : 160 mm

Length of wires grommet to plug : 330 mm

Other specifications:

Number of wires:3

Number of plugs: 1

Number of pins: 3

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.5 ohms +/-20%

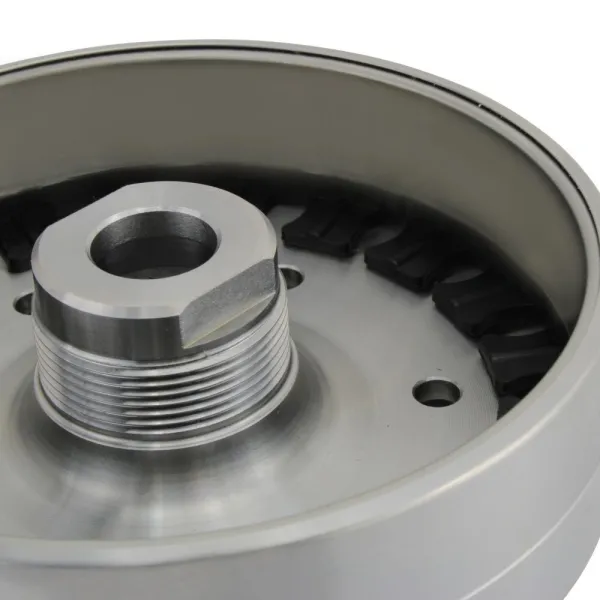

Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
