Kit Stator Mosfet Regulator Honda CBF1000 OEM 31120-MFA-D01 31120-MGJ-D01

2006 Honda CBF 1000
2007 Honda CBF 1000
2008 Honda CBF 1000
2009 Honda CBF 1000
2010 Honda CBF 1000

OEM 31120-MFA-D01
31120-MGJ-D01

Resistant to 200 degrees Celsius

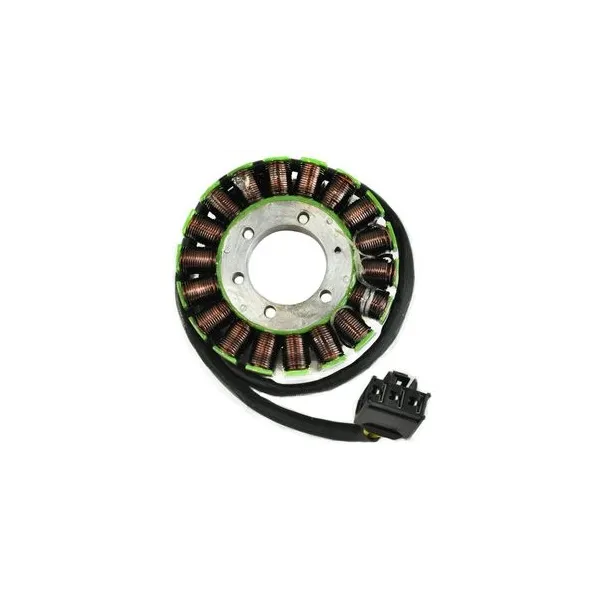

STATOR Dimensions :
Interior diameter : 41 mm
Exterior diameter : 115 mm
Thickness : 13 mm
Length of wires stator to grommet : 40 mm
Length of wires grommet to plug : 285 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator 3p: Between each Yellow = 0.4 ohms +-20%

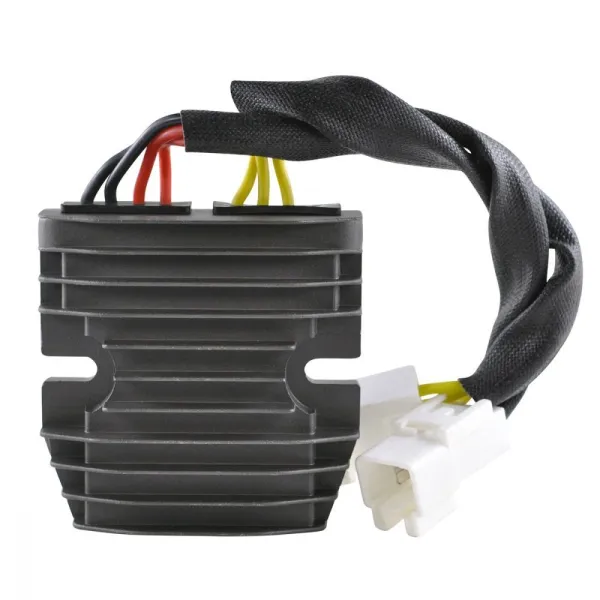

REGULATOR Dimensions:
Width: 90 mm
Length: 90 mm
Height: 30 mm
Wires length: 220 mm & 210 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
