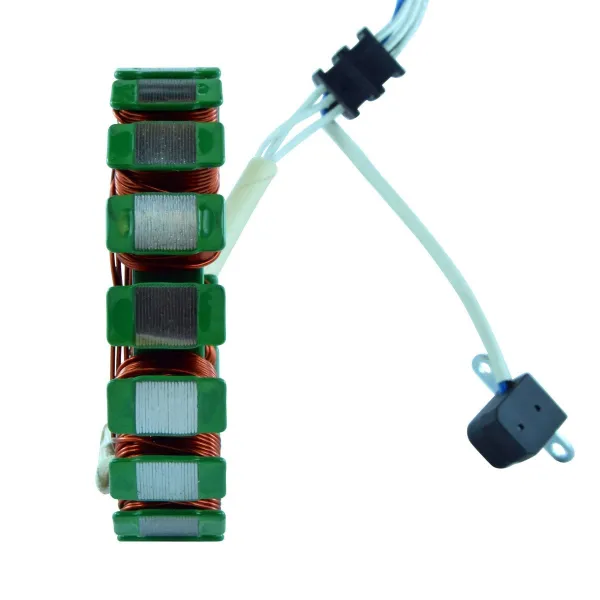

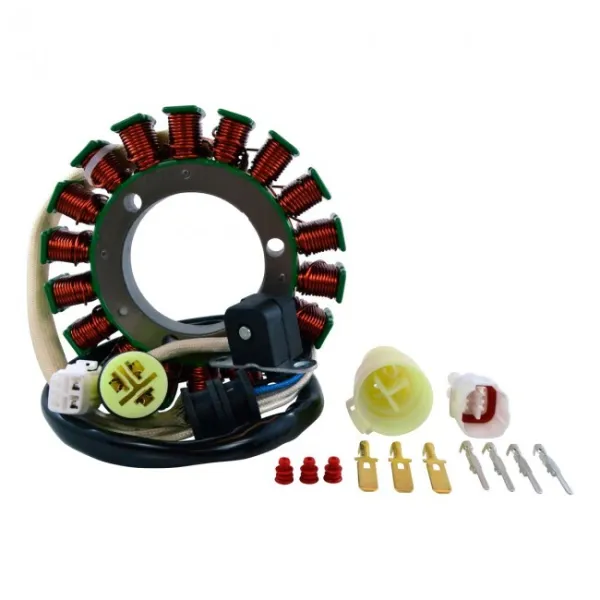

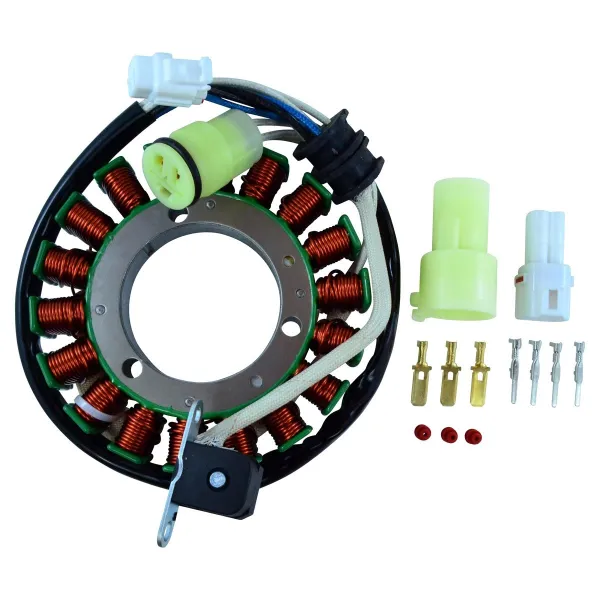

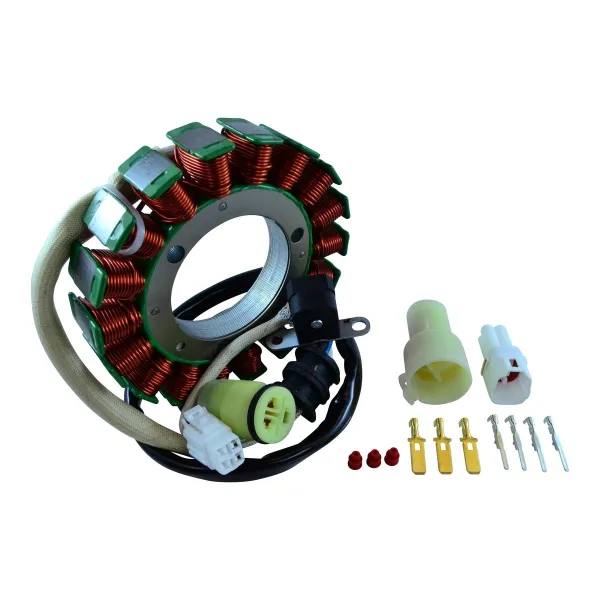

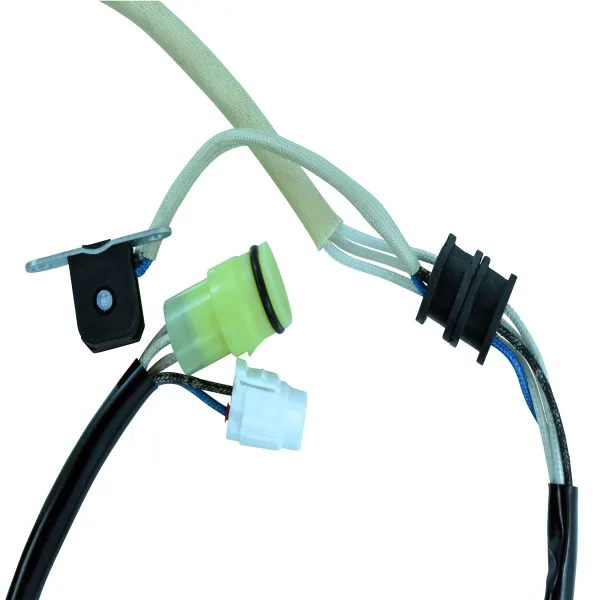

Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002
Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002
Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002
Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002
Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002
Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002

Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002

€210.00 Tax included

Stator HiSun Vector Sector 450 550 750 HS500 HS700 HS750 OEM 31120-004-000 31100-F39-0000 327700001 31100-F39-0002

Reference
CARMS010-104830
Contact Us

Stator

2017 Hisun Tactic 450 EFI
2017 Hisun Tactic 750 EFI
2016 Hisun Forge 450 EFI
2016 Hisun Forge 500 EFI
2016 Hisun Forge 550 EFI
2016 Hisun Forge 700 EFI
2016 Hisun Forge 750 EFI
2017 Hisun HS 500 EFI
2017 Hisun HS 700 EFI
2017 Hisun HS 750 EFI
2017 Hisun Sector 450 EFI
2017 Hisun Sector 550 EFI
2017 Hisun Sector 750 EFI
2017 Hisun Strike 550 EFI
2017 Hisun Vector 450 EFI
2017 Hisun Vector 500 EFI
2017 Hisun Vector 550 EFI
2017 Hisun Vector 750 EFI
2016 Hisun HS 500 EFI
2016 Hisun HS 700 EFI
2016 Hisun HS 750 EFI
2016 Hisun Sector 450 EFI
2016 Hisun Sector 550 EFI
2016 Hisun Sector 750 EFI
2016 Hisun Vector 450 EFI
2016 Hisun Vector 500 EFI
2016 Hisun Vector 550 EFI
2016 Hisun Vector 700 EFI
2016 Hisun Vector 750 EFI
2015 Hisun HS 500 EFI
2015 Hisun HS 700 EFI
2015 Hisun Sector 450 EFI
2015 Hisun Sector 550 EFI
2015 Hisun Sector 750 EFI
2014 Hisun HS 500 EFI
2014 Hisun HS 700 EFI
OEM 31120-004-000
31100-F39-0000
327700001
31100-F39-0002
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 15.50 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 450 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Blue to Black = 200 ohms +-20%
