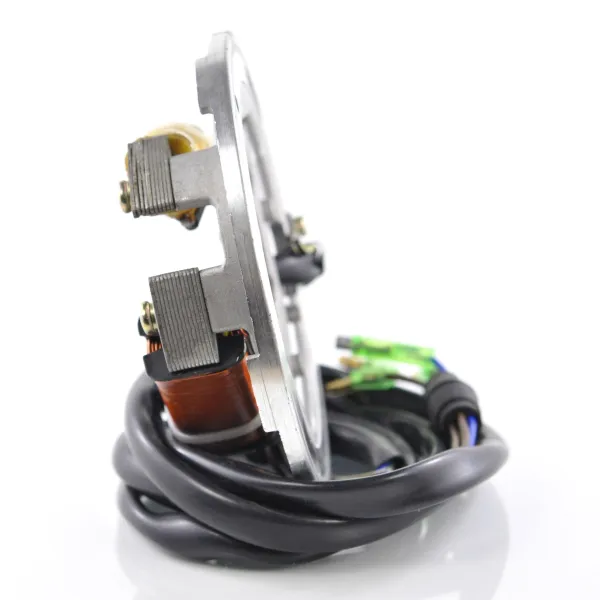

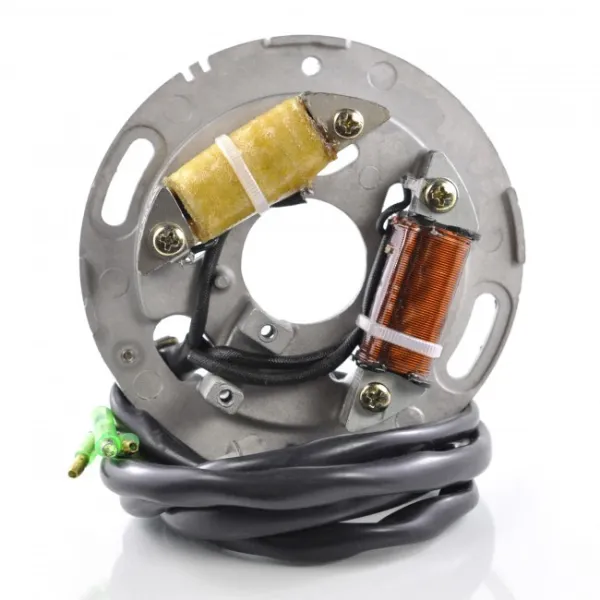

Stator Kawasaki Jet Ski 650X2 650 TS Tandem Sport OEM 21003-3713 21003-3716 21003-3718

Stator Kawasaki

1996 Kawasaki Jet Ski 650 TS Tandem Sport
1995 Kawasaki Jet Ski 650 TS Tandem Sport
1995 Kawasaki Jet Ski 650 X2
1994 Kawasaki Jet Ski 650 TS Tandem Sport
1994 Kawasaki Jet Ski 650 X2
1993 Kawasaki Jet Ski 650 TS Tandem Sport
1993 Kawasaki Jet Ski 650 X2
1992 Kawasaki Jet Ski 650 TS Tandem Sport
1992 Kawasaki Jet Ski 650 X2
1991 Kawasaki Jet Ski 650 TS Tandem Sport

OEM 21003-3713
21003-3716
21003-3718



Dimensions :
Interior diameter : 34 mm
Exterior diameter : 95 mm
Thickness : 13 mm
Length of wires stator to grommet 1 : 20 mm
Length of wires grommet 1 to grommet 2 : 1050 mm
Length of wires grommet 2 to plug : 75 mm

Other specifications :
Number of wires : 4
Number of plugs : 4
Number of pins : 4

Wire to wire resistance :
Alternator : Brown to Brown = 2.0 ohms +-20%
Source : Purple to Black/Yellow = 320 ohms +-20%
