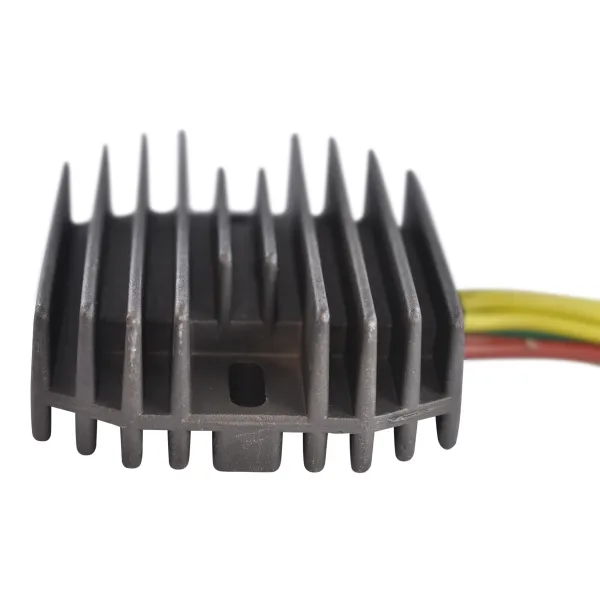

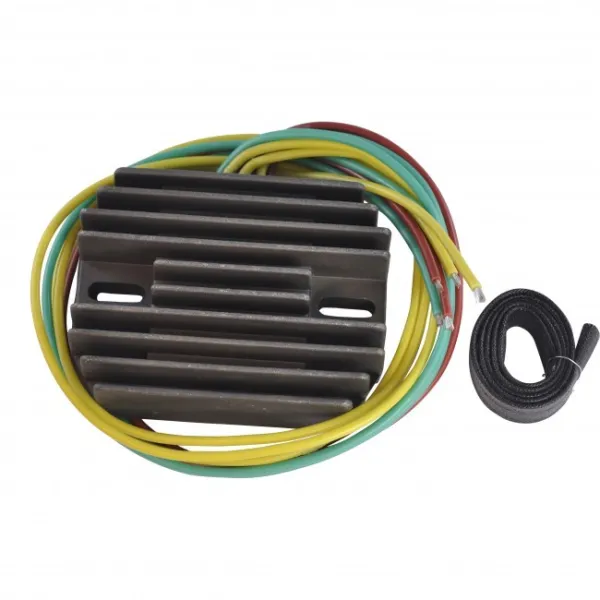

Regulator Rectifier-Kawasaki-KLF400 Bayou-Ninja ZX12R-Ninja ZX9R

Regulator Rectifier

1993 Kawasaki KLF 400 Bayou 4x4
1994 Kawasaki KLF 400 Bayou 4x4
1995 Kawasaki KLF 400 Bayou 4x4
1996 Kawasaki KLF 400 Bayou 4x4
1997 Kawasaki KLF 400 Bayou 4x4
1998 Kawasaki KLF 400 Bayou 4x4
1999 Kawasaki KLF 400 Bayou 4x4

2000 Kawasaki Ninja ZX12R
2002 Kawasaki Ninja ZX12R
2003 Kawasaki Ninja ZX12R

2000 Kawasaki Ninja ZX9R
2001 Kawasaki Ninja ZX9R
2002 Kawasaki Ninja ZX9R
2003 Kawasaki Ninja ZX9R

Improved heat sink and charging capabilities

OEM 10-515
21066-025
21066-1119
26h-81960-a0-00
2wr-81960-a0-00
3005-057
31600-mat-d50
31600-mat-d51
31600-mat-e01
31600-mb4-008
31600-mbg-306
31600-mcf-003
31600-mcf-d30
31600-mg8-008
31600-mk3-000
31600-mn0-008
32800-05a00
32800-12e01
32800-33e00
62511034100

Dimensions :
Width : 80mm
Length : 104mm
Height: 31mm
Fixation holes center to center : 75mm

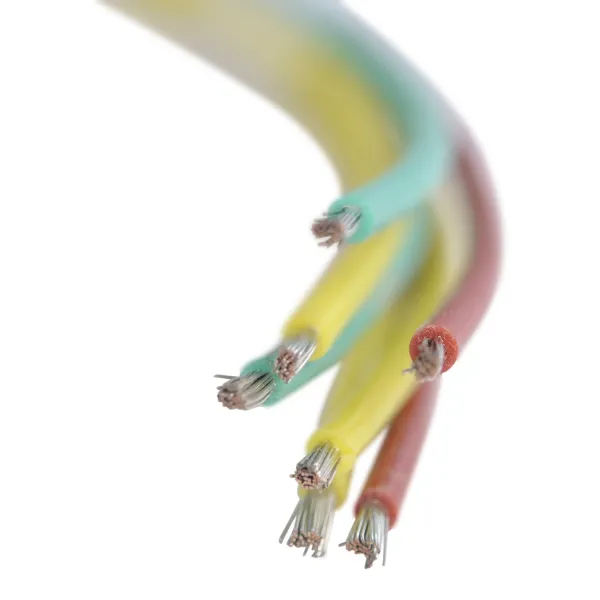

Wires length: 500mm

Other specifications :
Number of plugs : 0
Number of pins : 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
