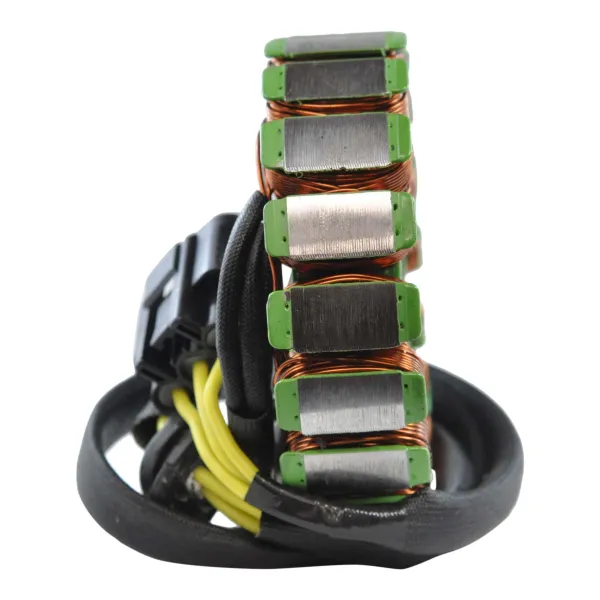

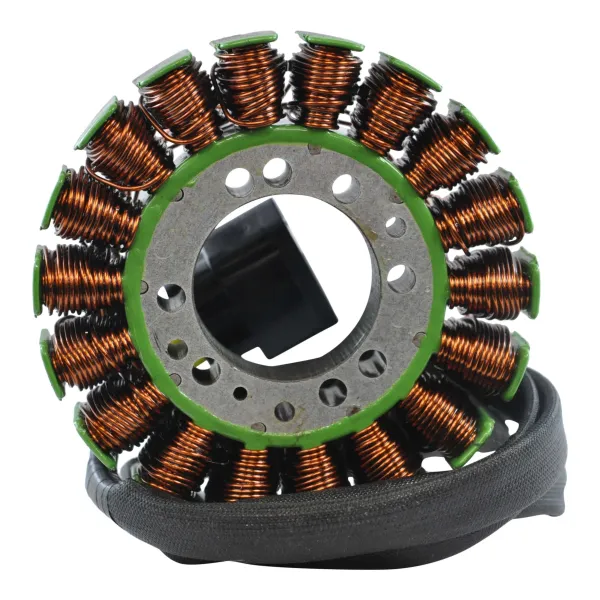

Stator Lynx Ranger 600 Rave 600 Xtrim 600 900 YETI 600 Adventure 600 OEM 420296908 420685635

Stator Lynx Resistant to 200°C

2014

    Lynx
        49 Ranger 600 ACE
            Snowmobile 2014 Lynx 49 Ranger 600 ACE
        59 YETI 600
            Snowmobile 2014 Lynx 59 YETI 600
        69 YETI 600
            Snowmobile 2014 Lynx 69 YETI 600
        Adventure 600
            Snowmobile 2014 Lynx Adventure 600
        Rave 600
            Snowmobile 2014 Lynx Rave 600
        Xtrim 600
            Snowmobile 2014 Lynx Xtrim 600
        Xtrim SC 900
            Snowmobile 2014 Lynx Xtrim SC 900

2013

    Lynx
        49 Ranger 600
            Snowmobile 2013 Lynx 49 Ranger 600
        59 YETI 600
            Snowmobile 2013 Lynx 59 YETI 600
        69 YETI 600
            Snowmobile 2013 Lynx 69 YETI 600
        Adventure 600
            Snowmobile 2013 Lynx Adventure 600
        Rave 600
            Snowmobile 2013 Lynx Rave 600
        Xtrim 600
            Snowmobile 2013 Lynx Xtrim 600

2012

    Lynx
        49 Ranger 600
            Snowmobile 2012 Lynx 49 Ranger 600
        59 YETI 600
            Snowmobile 2012 Lynx 59 YETI 600
        Adventure 600
            Snowmobile 2012 Lynx Adventure 600
        Rave 600
            Snowmobile 2012 Lynx Rave 600
        Xtrim 600
            Snowmobile 2012 Lynx Xtrim 600

2011

    Lynx
        59 YETI 600
            Snowmobile 2011 Lynx 59 YETI 600
        Adventure 600
            Snowmobile 2011 Lynx Adventure 600

OEM
420296908
420685635

Dimensions :
Interior diameter : 41mm
Exterior diameter : 114mm
Thickness : 22mm
Length of wires stator to grommet : 160mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
