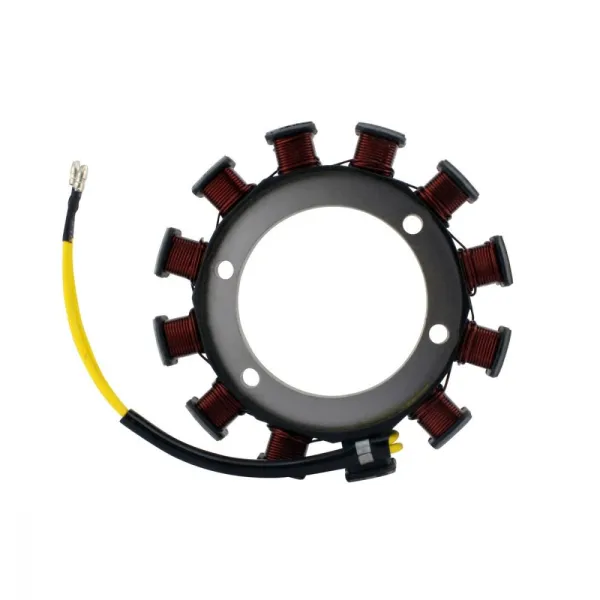

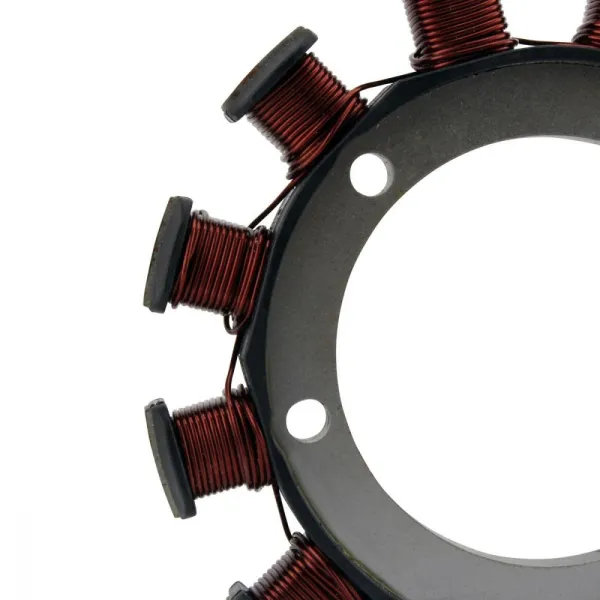

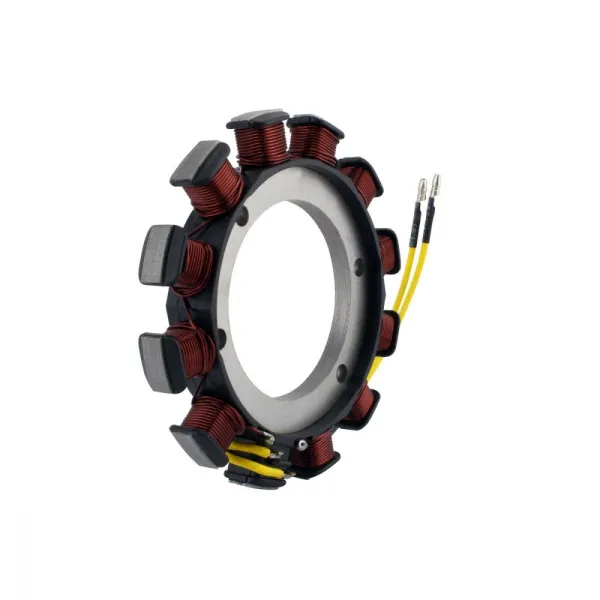

Stator Kawasaki KAF 300 Mule 500 520 550 OEM 59031-2097

2007 Kawasaki KAF 300 Mule 550
2007 Kawasaki KAF 300 Mule 520
2007 Kawasaki KAF 300 Mule 500
2004 Kawasaki KAF 300 Mule
2003 Kawasaki KAF 300 Mule
2002 Kawasaki KAF 300 Mule
2001 Kawasaki KAF 300 Mule
2000 Kawasaki KAF 300 Mule
1999 Kawasaki KAF 300 Mule
1998 Kawasaki KAF 300 Mule
1997 Kawasaki KAF 300 Mule
1996 Kawasaki KAF 300 Mule
1995 Kawasaki KAF 300 Mule
1994 Kawasaki KAF 300 Mule
1993 Kawasaki KAF 300 Mule
1992 Kawasaki KAF 300 Mule
1991 Kawasaki KAF 300 Mule

OEM 59031-2097

Dimensions:
Interior diameter: 70 mm
Exterior diameter: 133 mm
Thickness: 9 mm

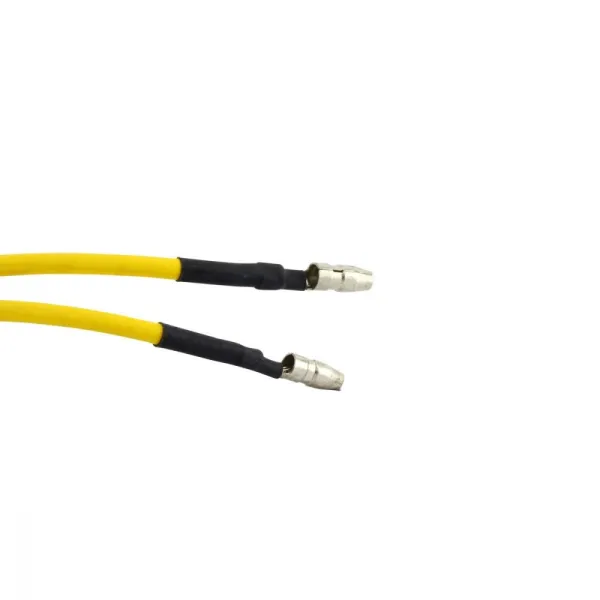

Length of wires stator to connector: 170 mm

Other specifications:
Number of wires: 2
Number of plugs: 2
Number of pins: 2
Number of poles: 12
Wire to wire resistance:
Alternator: White to White = 0.4 ohms +-20%
