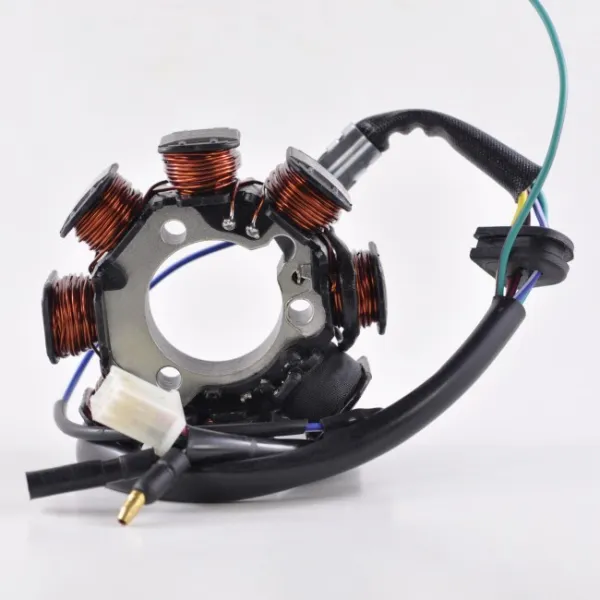

Stator Honda NX125 Transcity NX 125 Denso OEM 31120-KBB-901 31120-KW8-902 31120-KW8-901

Stator

Resistant to 200 degrees Celsius

1990 Honda NX 125
1989 Honda NX 125
1988 Honda NX 125

OEM 31120-KBB-901
31120-KW8-902
31120-KW8-901



Dimensions :
Interior diameter : 35 mm
Exterior diameter : 88 mm
Thickness : 17.8 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 380 mm

Other specifications :
Number of wires :6
Number of plugs : 3
Number of pins :6

Wire to wire resistance :
Alternator : Pink to Yellow = 0.9 ohms +-20%
Source : Black/Red to Green = 190 ohms +-20%
