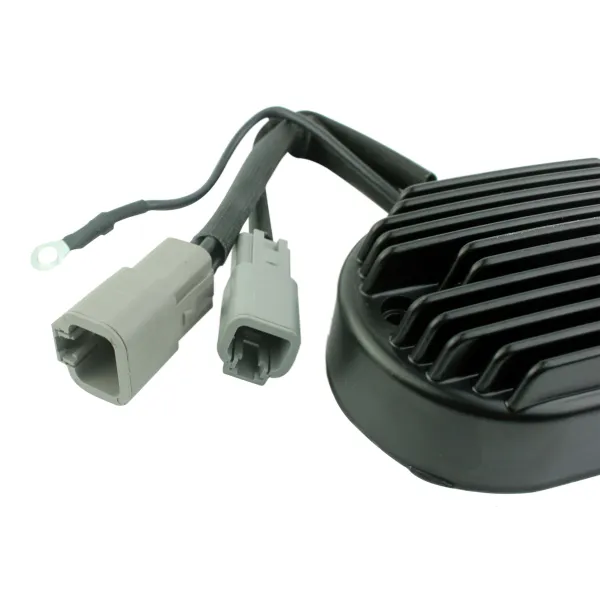

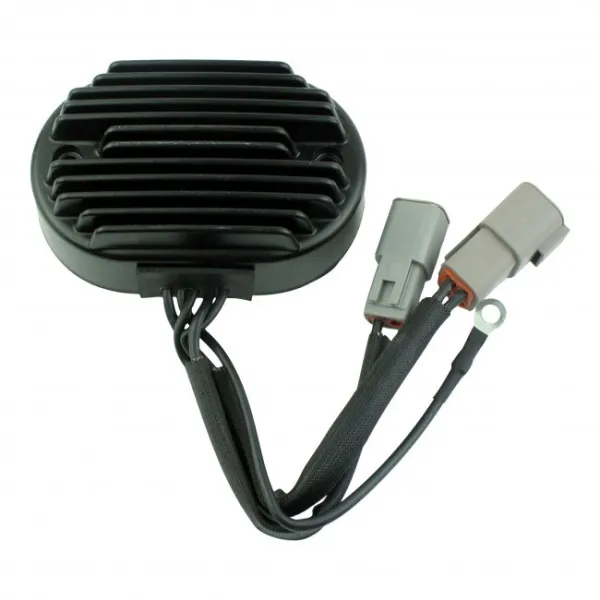

Regulator Rectifier Mosfet Harley Davidson Fat Boy 1580 Heritage Softail 1584 Softail 1584 2007

Regulator Rectifier Mosfet

2007 Harley Davidson Fat Boy 1580 FLSTF1580
2007 Harley Davidson Heritage Softail 1584 FLSTC1584
2007 Harley Davidson Softail 1584 Custom - FXSTC1584
2007 Harley Davidson Softail 1584 Deluxe - FLSTN1584
2007 Harley Davidson Softail 1584 Deuce - FXSTD1584
2007 Harley Davidson Softail 1584 FXST1584
2007 Harley Davidson Softail 1584 Fat Boy - FLSTF1584
2007 Harley Davidson Softail 1584 Night Train - FXSTB1584
2007 Harley Davidson Softail 1584 Springer Classic - FLSTC1584

OEM
74540-07

Dimensions :
Width : 90mm
Length : 130mm
Height: 40mm
Fixation holes center to center : 95mm
Wires length: 200mm 200mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
