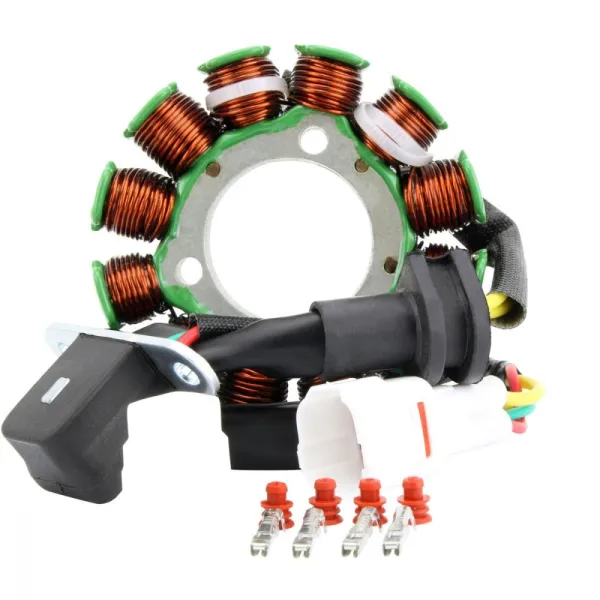

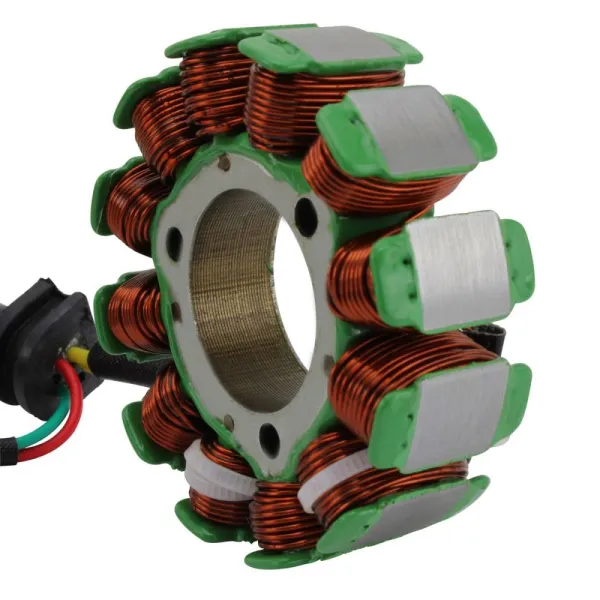

Stator Suzuki RMZ250 RMZ450 OEM 32101-28HA0 32101-28HA1

2022 Suzuki RM Z 450
2020 Suzuki RM Z 450
2019 Suzuki RM 450 Z
2018 Suzuki RM-Z250
2018 Suzuki RM 450 Z
2017 Suzuki RM-Z250
2017 Suzuki RM 450 Z
2016 Suzuki RM-Z250
2016 Suzuki RM 450 Z
2015 Suzuki RM-Z250
2015 Suzuki RM 450 Z
2014 Suzuki RM-Z250
2014 Suzuki RM 450 Z
2013 Suzuki RM-Z250
2013 Suzuki RM 450 Z

OEM 32101-28HA0 32101-28HA1

Dimensions :
Interior diameter : 32 mm
Exterior diameter : 76.6 mm

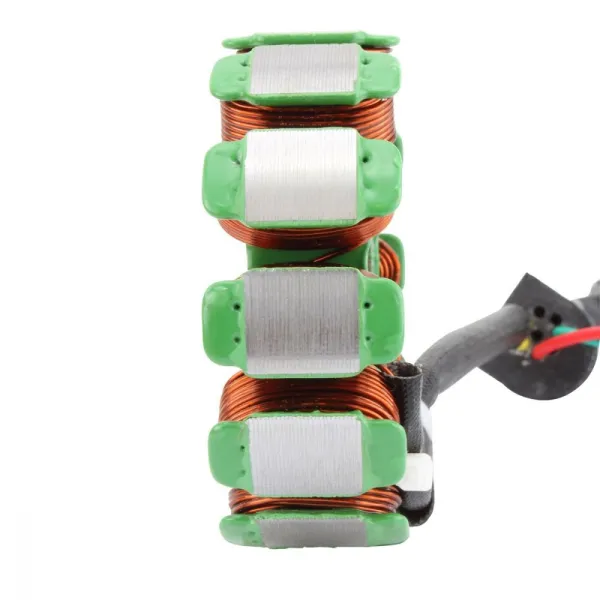

Thickness : 14 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 30 mm

Other specifications :
Number of wires : 4

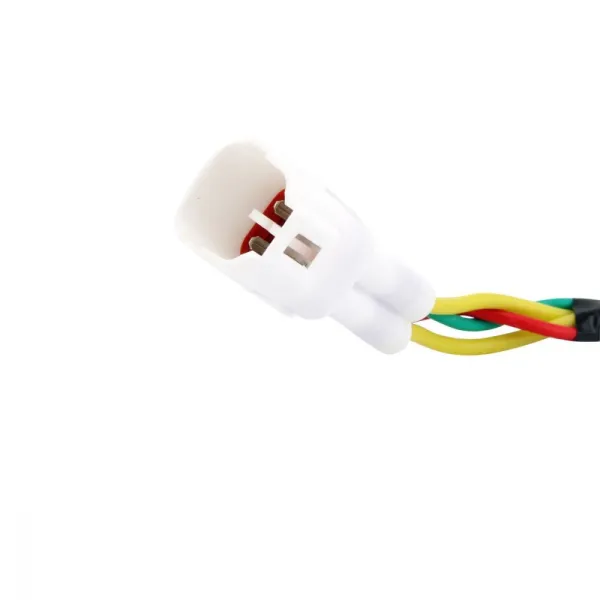

Number of plugs : 1
Number of pins : 4
Number of poles : 12

Wire to wire resistance :
Alternator : Yellow to Yellow = 1.8 ohms +-20%
Pickup : = Red to Green = 100 ohms +-20%
