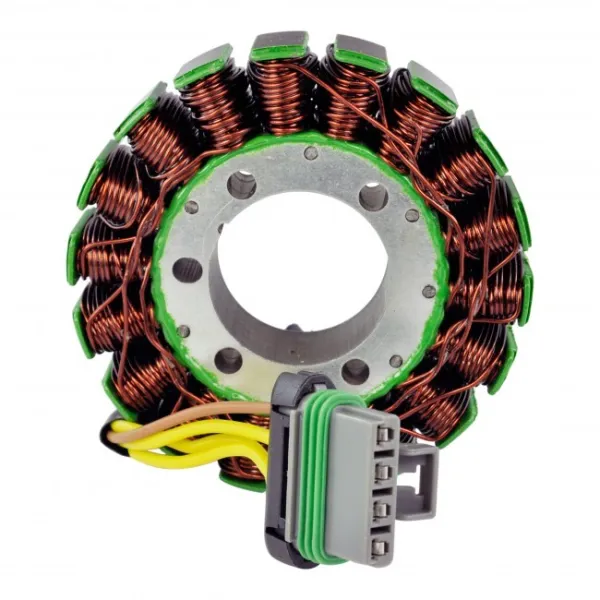

Kit Stator Mosfet Regulator Polaris Sportsman 800 Sportsman 700 RZR 800S RZR800 Ranger 700 OEM 4011982 4014034 4011399

• Stator Resistant to 200 degrees Celsius

• 2010 Polaris Sportsman 800 Big Boss
  2009 Polaris Sportsman 800 EFI
  2009 Polaris Sportsman 800 HO
  2009 Polaris Sportsman 800 Touring
  2009 Polaris Sportsman X2 800
  2008 Polaris Sportsman 800 EFI
  2008 Polaris Sportsman 800 HO
  2008 Polaris Sportsman 800 Touring
  2008 Polaris Sportsman X2 700
  2008 Polaris Sportsman X2 800
  2009 Polaris RZR 800 EFI
  2009 Polaris RZR 800 S
  2009 Polaris Ranger 700
  2009 Polaris Ranger Crew 700
  2008 Polaris RZR 800 EFI
  2008 Polaris Ranger 700
  2008 Polaris Ranger 700 6x6 EFI
  2008 Polaris Ranger Crew 700
  2007 Polaris Ranger 700
  2007 Polaris Ranger 700 6x6 EFI
  2007 Polaris Ranger 700 XP


  OEM
  4011982
  4011399
  4014034

Interior diameter : 40mm
Exterior diameter : 106mm
Thickness : 24mm
Length of wires stator to grommet : 45mm
Length of wires grommet to plug : 100mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%

REGULATOR Dimensions:
Width: 107 mm
Length: 112 mm
Height: 50 mm
Wires length: 90 mm & 145 mm
Fixation holes center to center: 84 mm
Other specifications:
Number of plugs: 3
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
