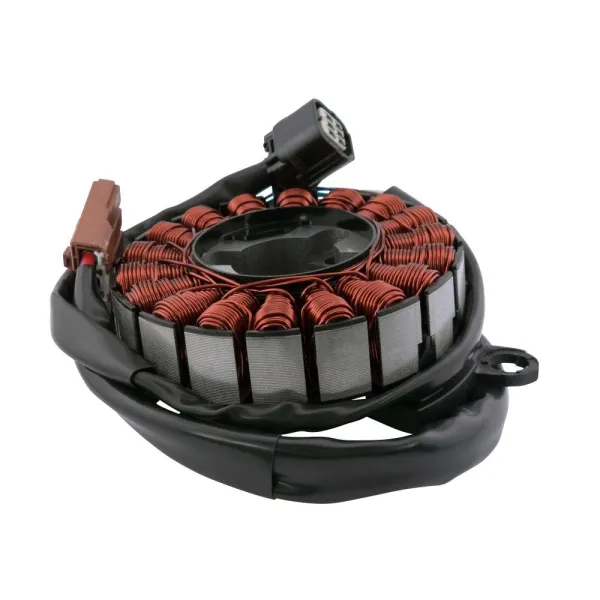

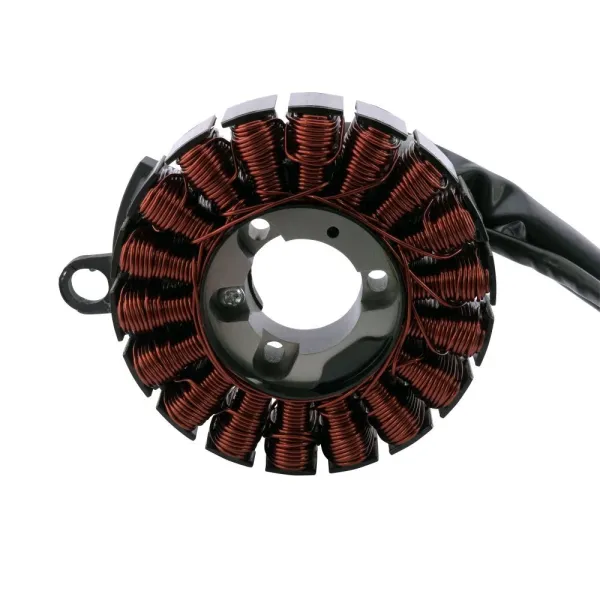

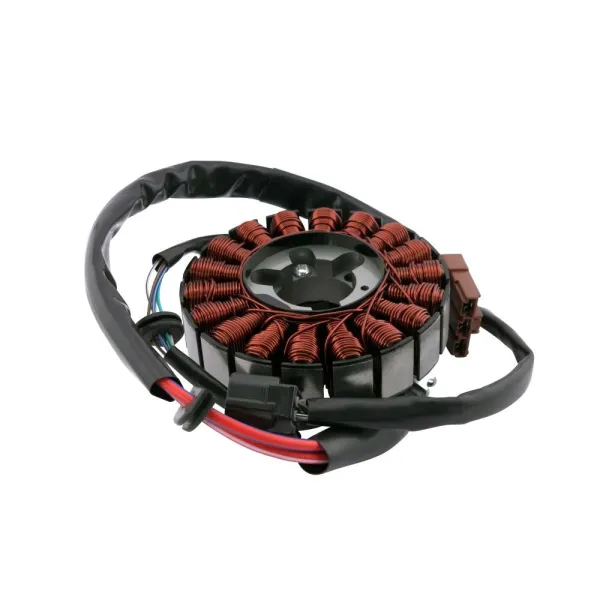

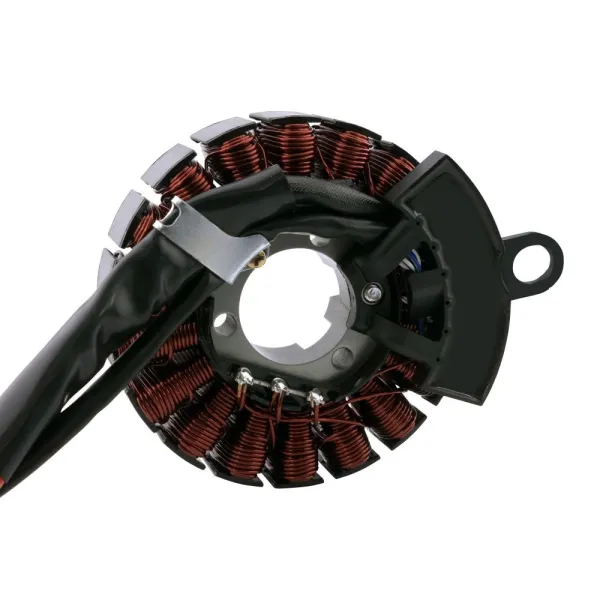

Stator Honda SH125i OEM 31220-K02-901 31220-K78-V01 31220-K1N-D01 31220-K0R-D01 31220-K29-D81 31220-K89-D21

2024 Honda SH 125i

2023 Honda SH 125i

2022 Honda SH 125i

2021 Honda SH 125i

2020 Honda SH 125i

2019 Honda SH 125i

2018 Honda SH 125i

2017 Honda SH 125i

2016 Honda SH 125i

2015 Honda SH 125i

2014 Honda SH 125i

2013 Honda SH 125i

OEM 31220-K02-901

31220-K78-V01

31220-K1N-D01

31220-K0R-D01

31220-K29-D81

31220-K89-D21

Dimensions:

Interior diameter: 33 mm

Exterior diameter: 108 mm

Thickness: 21 mm

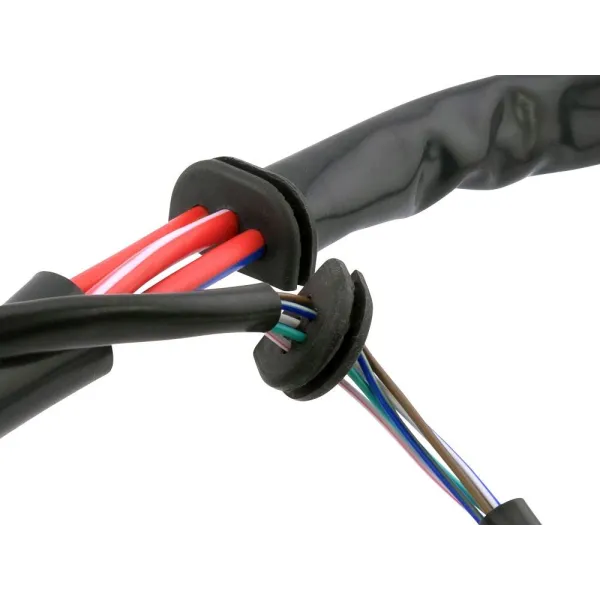

Length of wires stator to grommet: 90 mm

Length of wires grommet to plug: 420 mm

Other specifications:

Number of wires: 9

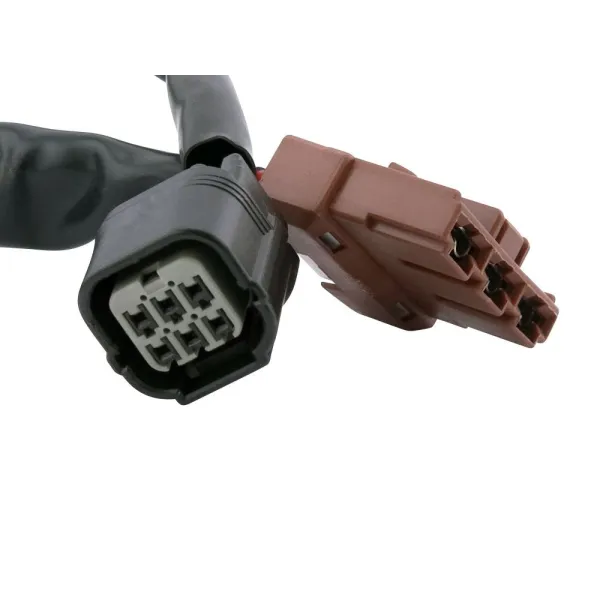

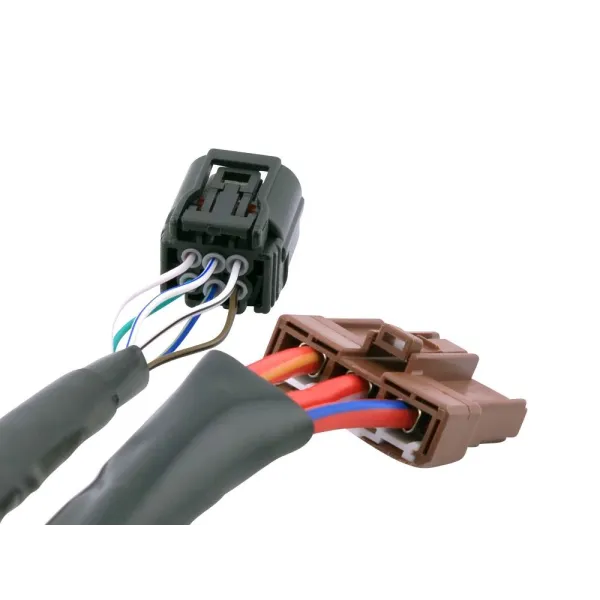

Number of plugs: 2

Number of pins: 9

Number of poles: 18

Wire to wire resistance:

Alternator: Between Red/Yellow, Red/Blue and Red/White = 0.6 ohms +/-20%

Alternator: Red/Yellow, Red/Blue and Red/White to ground = O.L
