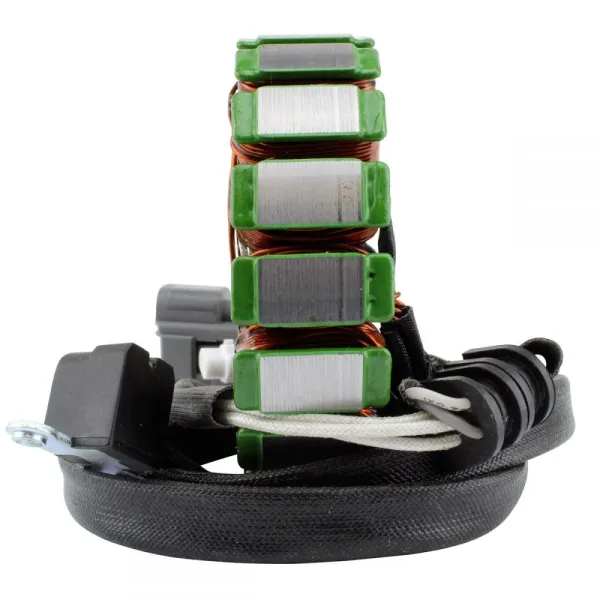

Stator Snowmobile Yamaha 1000 Sidewinder OEM 8KJ-81410-00-00

2020 Yamaha 1000 Sidewinder B TX LE EFI L/C
2020 Yamaha 1000 Sidewinder EFI L/C
2019 Yamaha 1000 Sidewinder EFI L/C
2018 Yamaha 1000 Sidewinder EFI L/C
2017 Yamaha 1000 Sidewinder EFI L/C

OEM 8KJ-81410-00-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 34 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 850 mm
Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 5

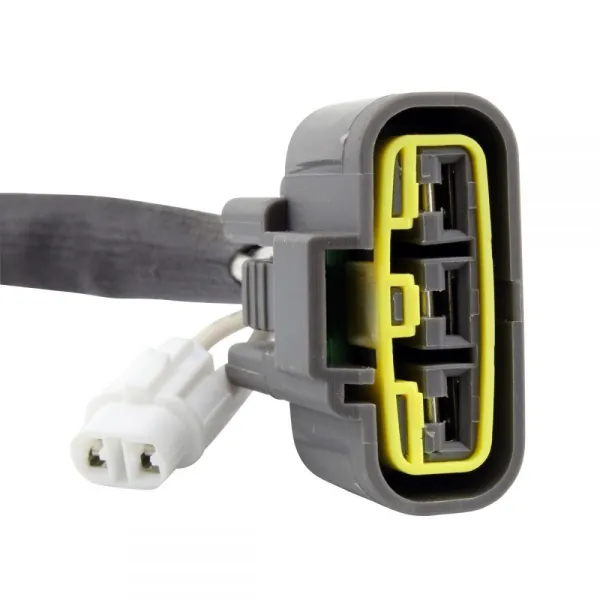

Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Black to Grey = 500 ohms +-20%
