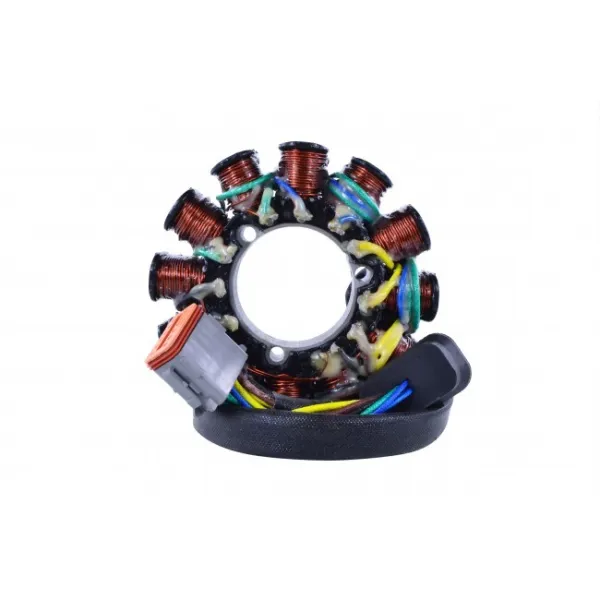

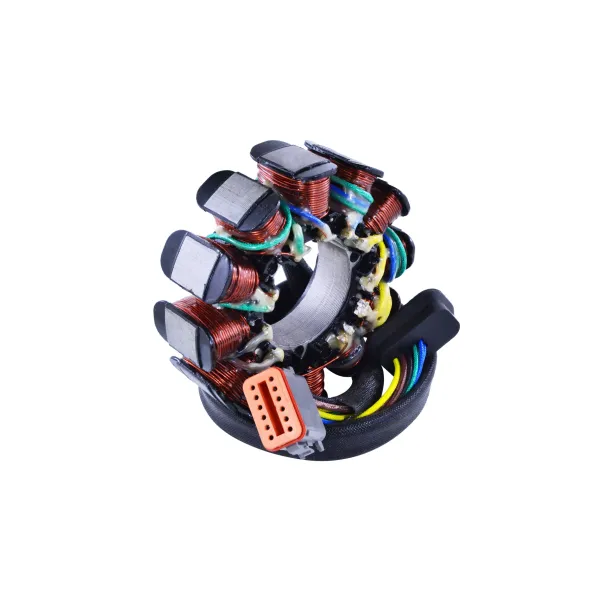

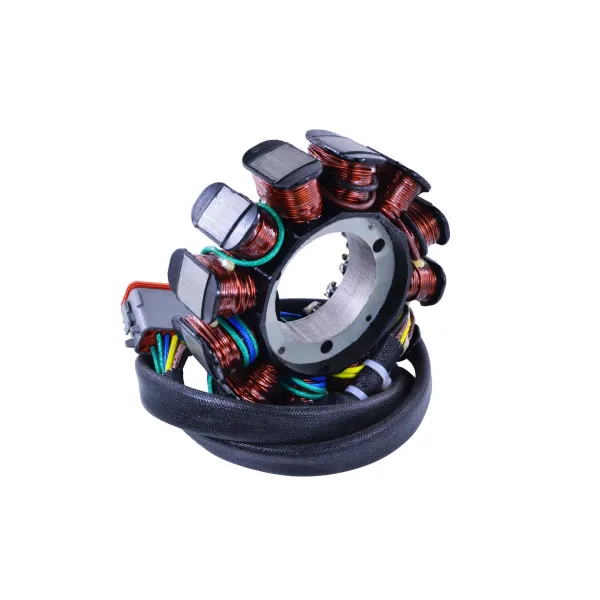

Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741
Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741
Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741
Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741
Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741

Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741

€250.80 Tax included

Stator Kawasaki PWC Ultra 130 STX1100 OEM 21003-3744 21003-3741

Reference
CARM01539
7-8 Days (4 Items)

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

2004 Kawasaki Ultra 130
2003 Kawasaki 1100 STX
2003 Kawasaki Ultra 130
2002 Kawasaki 1100 STX
2002 Kawasaki Ultra 130
2001 Kawasaki 1100 STX
2001 Kawasaki Ultra 130
2000 Kawasaki 1100 STX
OEM 21003-3744
21003-3741
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 127 mm
Thickness : 21 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 700 mm
Other specifications :
Number of wires : 10
Number of plugs : 1
Number of pins : 10
Wire to wire resistance :
Alternator : White to white/brown = 0.8 ohms +-20%
Alternator : Black/white to green/white = 0.8 ohms +-20%
Alternator : Blue to Yellow = 0.7 ohms +-20%
Alternator : Purple to black = 0.6 ohms +-20%
Alternator : Green to gray = 0.6 ohms +-20%
