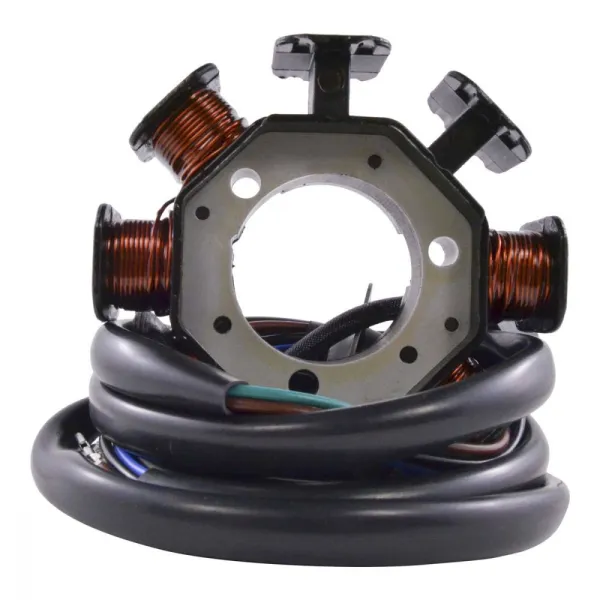

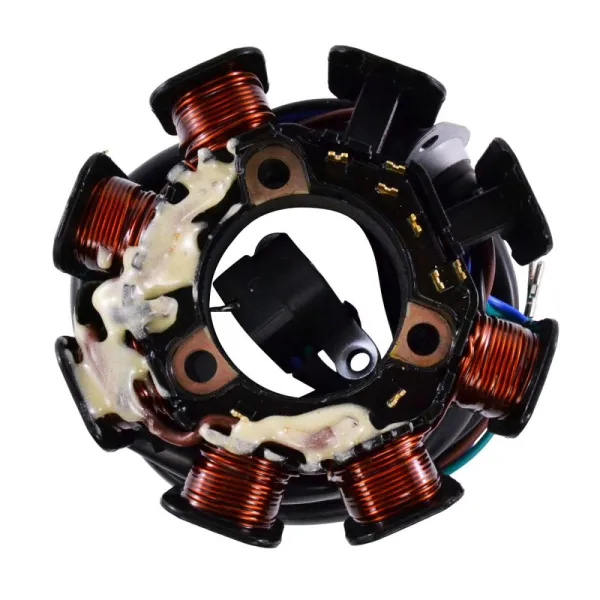

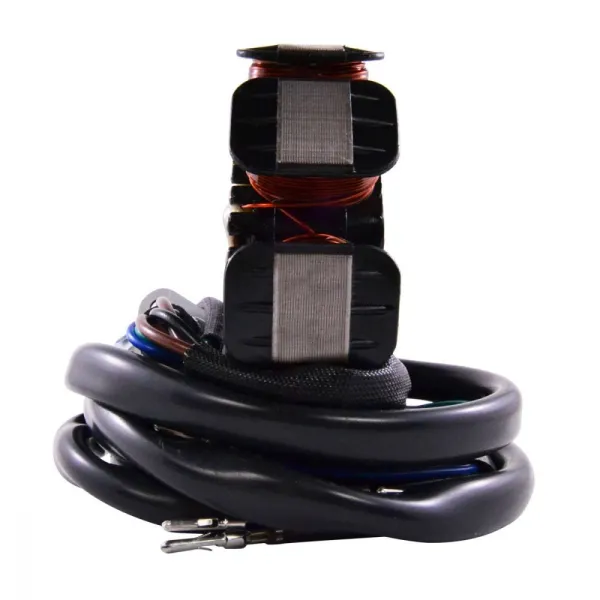

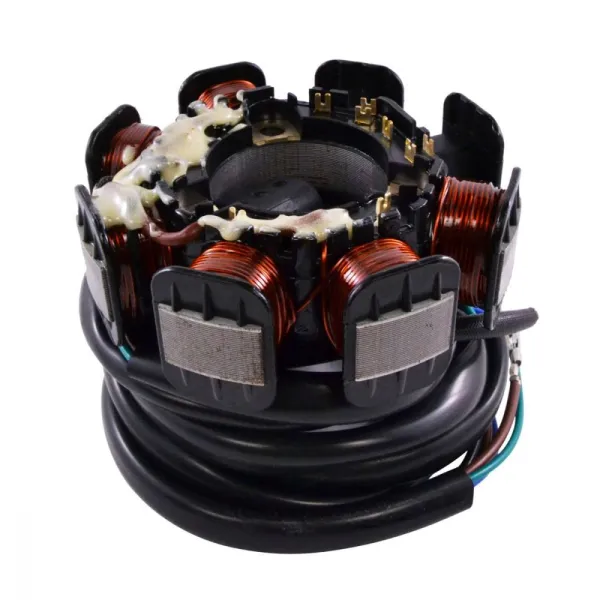

Stator Kawasaki 800 SXR Kawasaki 750 ZXi OEM 21003-3734 21003-3748

2011 Kawasaki 800 SX-R
2010 Kawasaki 800 SX-R
2009 Kawasaki 800 SX-R
2008 Kawasaki 800 SX-R
2007 Kawasaki 800 SX-R
2006 Kawasaki 800 SX-R
2005 Kawasaki 800 SX-R
2004 Kawasaki 800 SX-R
1999 Kawasaki 750 XI Sport
1998 Kawasaki 750 XI Sport
1997 Kawasaki 750 ZXi
1996 Kawasaki 750 ZXi

OEM 21003-3734
21003-3748

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 16 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 1615 mm

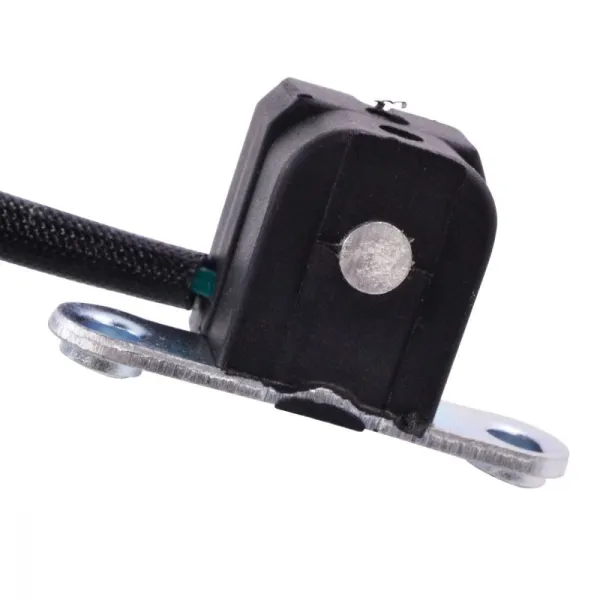

Length of pickup coil's wire to grommet : 95 mm

Other specifications :

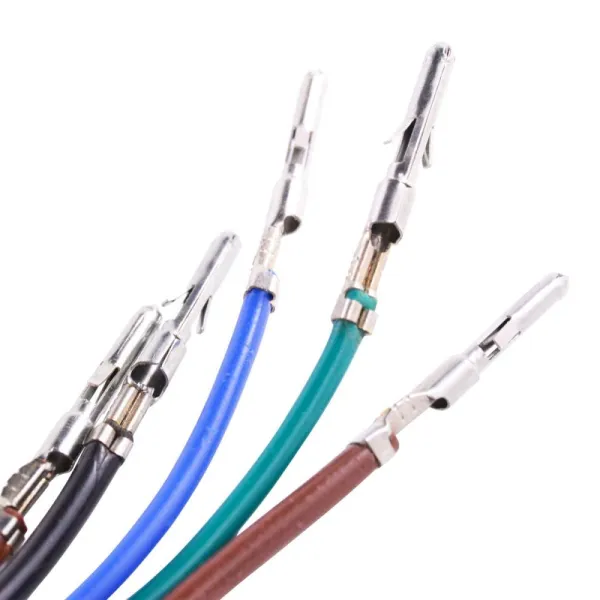

Number of wires :5
Number of plugs : 2
Number of pins :5

Wire to wire resistance :
Alternator : Brown to Brown = 1.2 ohms +-20%
Pickup : Blue to Green = 496 ohms +-20%
