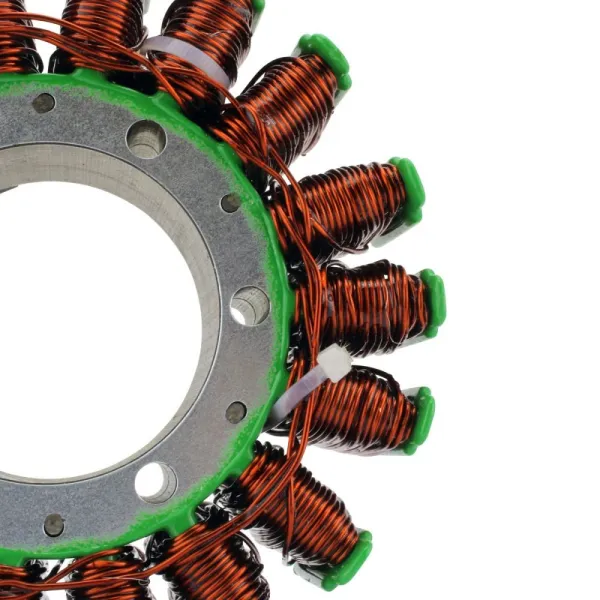

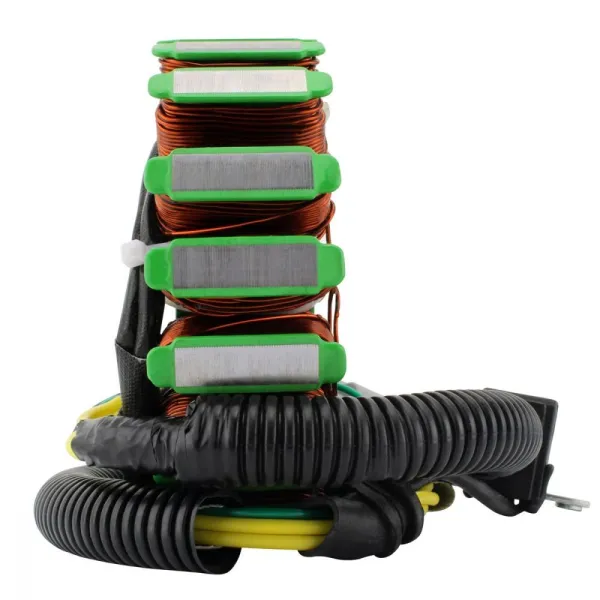

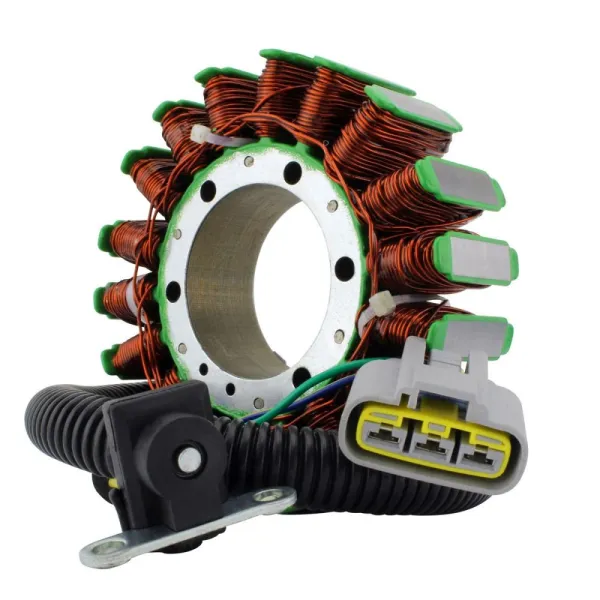

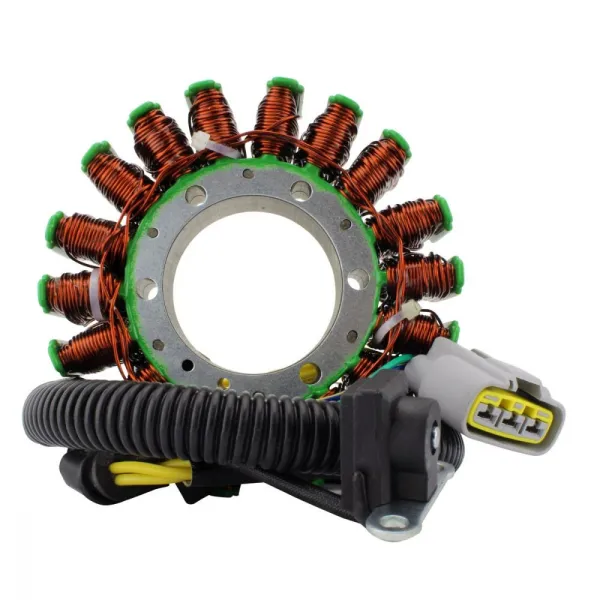

Stator Honda SXS 1000 RX Talon OEM 31120-HL6-A01 31120-HL6-A02 31120-HL6-A03

Stator

2021 Honda SXS 1000 X-4 Talon

2021 Honda SXS 1000 X Talon

2021 Honda SXS 1000 R Talon

2020 Honda SXS 1000 X-4 Talon

2020 Honda SXS 1000 X Talon

2020 Honda SXS 1000 R Talon

2019 Honda SXS 1000 X Talon

2019 Honda SXS 1000 R Talon

OEM 31120-HL6-A01

31120-HL6-A02

31120-HL6-A03

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 128 mm

Thickness: 30 mm

Length of wires stator to grommet: 200 mm

Length of wires grommet to plug: 540 mm

Length of pickup coil's wire to grommet: 110 mm

Other specifications:

Number of wires: 5

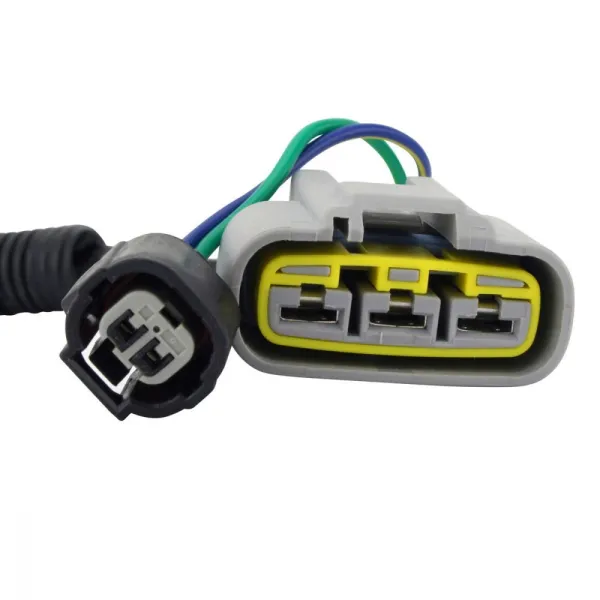

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.4 ohms +-20%

Pickup: Blue/Yellow to Green = 117 ohms +-20%
