Stator Pick-Up Pulsar Coil Husqvarna TE630 SMS630 TE610 SM610 OEM 8000A6767 8000A6778
€46.15
Stator Husqvarna SM630S TE630 SM610 TE610 OEM 8000A6767 8000A6778
€185.00
Tax included

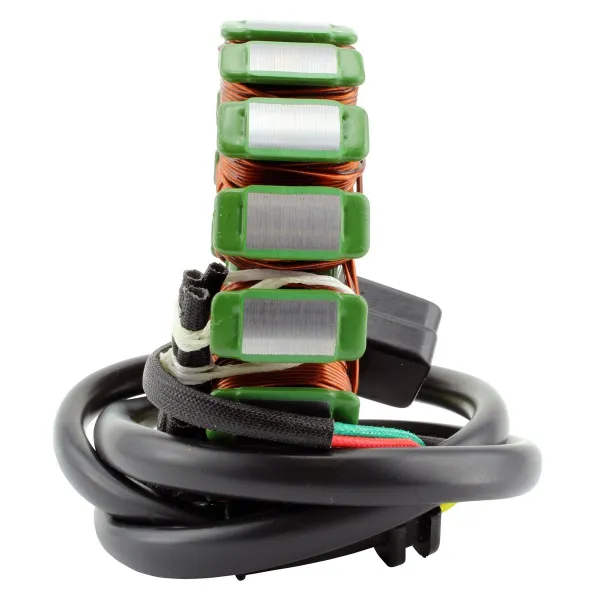

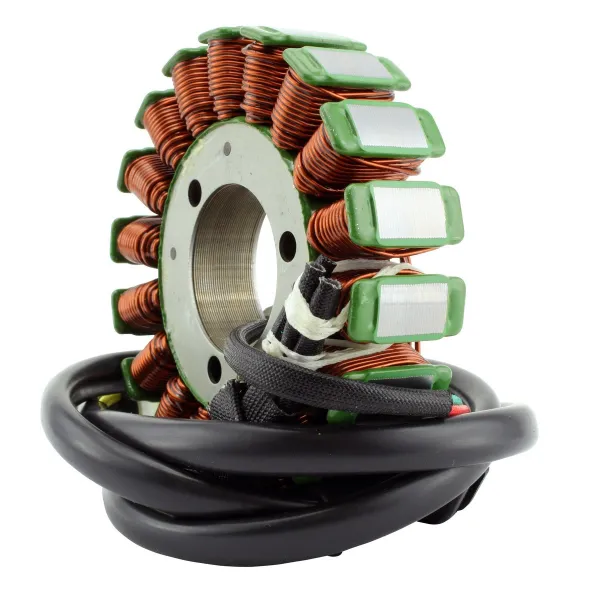

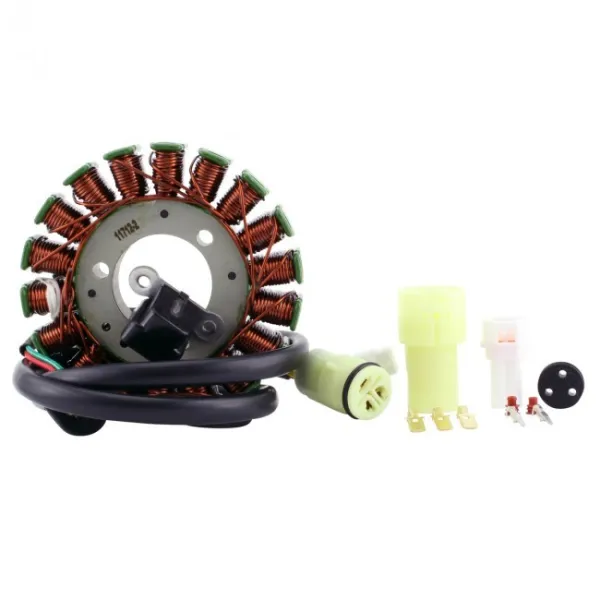

Stator Husqvarna SM630S TE630 SM610 TE610 OEM 8000A6767 8000A6778
Stator
2011 Husqvarna SMS 630
2011 Husqvarna TE 630
2008 Husqvarna SM 610
2008 Husqvarna TE 610
2011 Husqvarna TE 630
2008 Husqvarna SM 610
2008 Husqvarna TE 610
OEM 8000A6767 8000A6778
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 61 mm
Thickness : 19 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 640 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Interior diameter : 38 mm
Exterior diameter : 61 mm
Thickness : 19 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 640 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Source : Green to Red = 100 ohms +-20%
Alternator : Yellow between each Yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Source : Green to Red = 100 ohms +-20%
