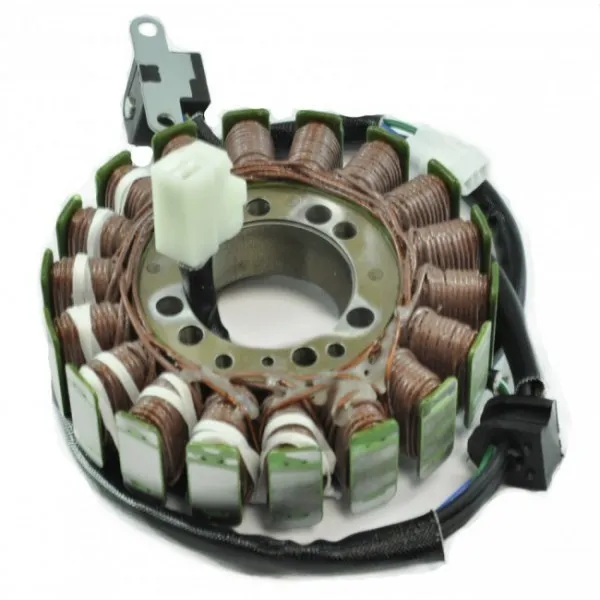

Technical Stator

Before installing your stator


1. Check the AC output of the stator.

2. Replace any burned or corroded connectors on stator and regulator/rectifier.

3. Check and repair any melted wiring.

4. Use hi-temp dielectric grease on all connectors.


This stator is designed as a direct plug-in play replacement and should be used as such.

When bolting stator in, always use locking compound.

If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as

close as possible no less than 0.010"
