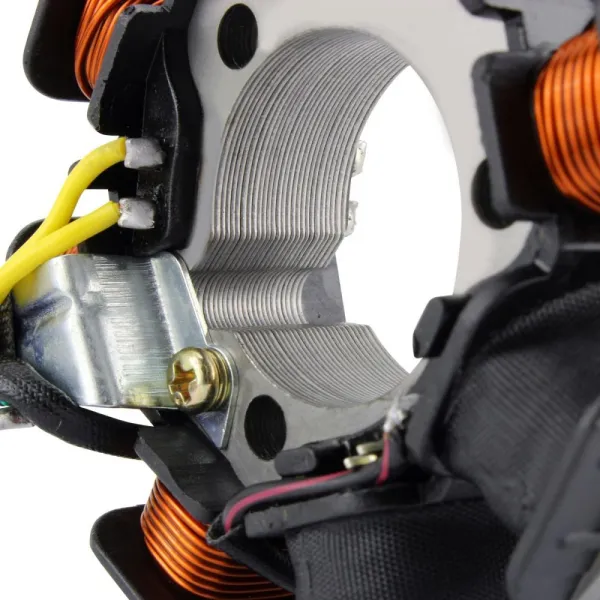

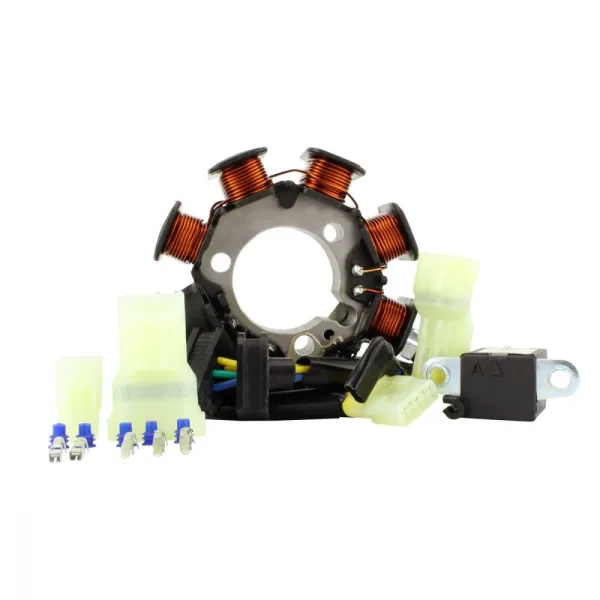

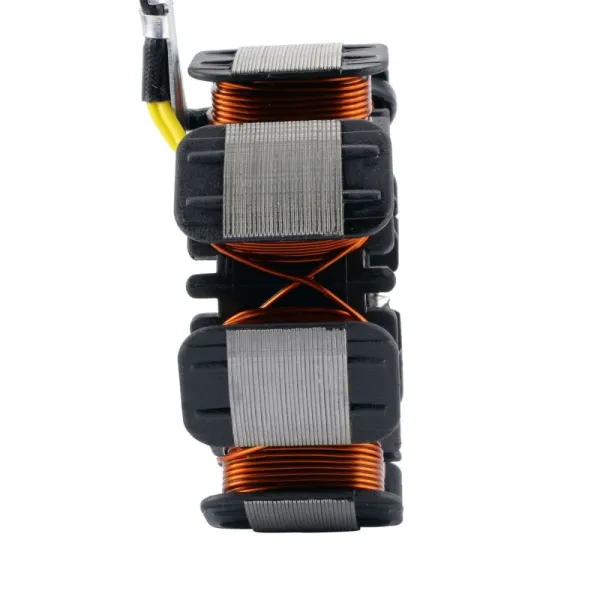

Stator Honda TRX 250X TRX250 EX Sportrax OEM 31120-HN6-A31 31120-HN6-A30

2024 Honda TRX 250 X
2023 Honda TRX 250 X
2022 Honda TRX 250 X
2021 Honda TRX 250 X
2020 Honda TRX 250 X
2019 Honda TRX 250 X
2018 Honda TRX 250 X
2017 Honda TRX 250 X
2016 Honda TRX 250 X
2014 Honda TRX 250 X
2013 Honda TRX 250 X
2012 Honda TRX 250 X
2011 Honda TRX 250 X
2010 Honda TRX 250 X European
2009 Honda TRX 250 X
2008 Honda TRX 250 EX Sportrax
2007 Honda TRX 250 EX Sportrax
2006 Honda TRX 250 EX Sportrax

OEM 31120-HN6-A31 31120-HN6-A30

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 88 mm
Thickness: 18 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 140 mm

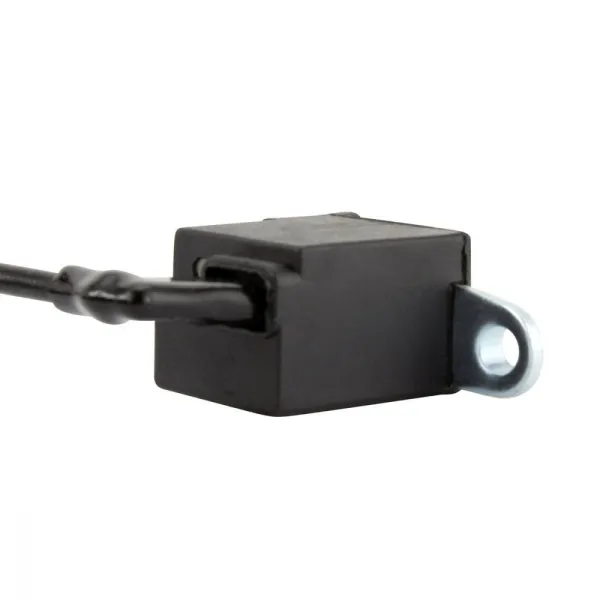

Length of pickup coil's wire to grommet #1: 330 mm
Length of pickup coil's wire to grommet #2: 370 mm

Other specifications:

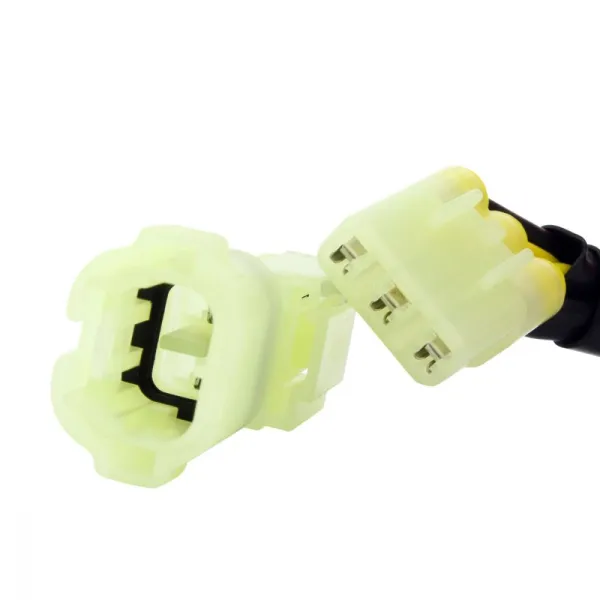

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 8
Wire to wire resistance:
Alternator: Between each Yellow = 0.7 ohms +-20%
Pickup: Blue/Yellow to Ground = 336 ohms +-20%
Source: Black/Red to Ground = 185 ohms +-20%
