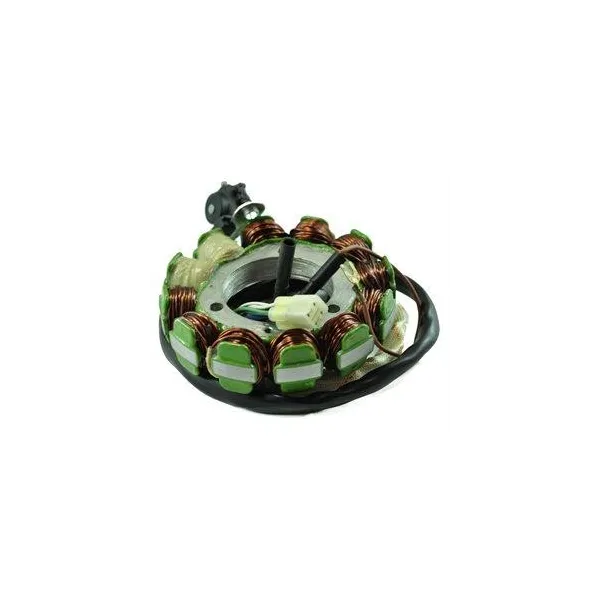

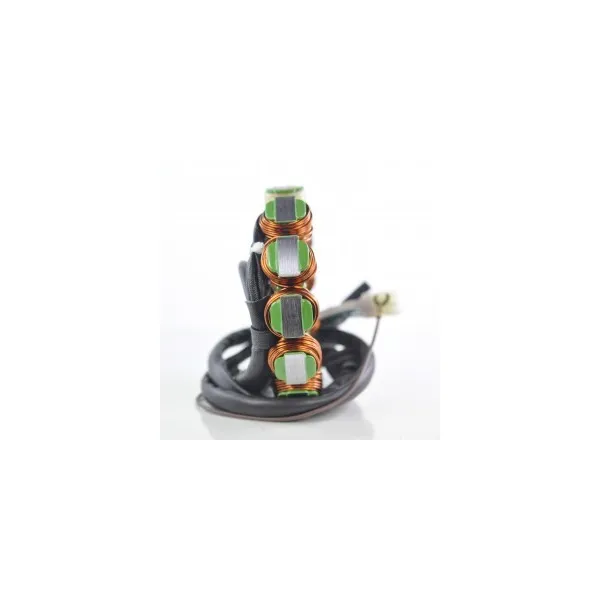

Stator-Honda-TRX400EX Sportrax-TRX400

Stator - 200 Watts

Resistant to 200 degrees Celsius

1999 - 2008 Honda TRX 400 Sportrax EX - Electric Start

2009-2014 Honda TRX 400 X

OEM 31120-hn1-003
31120-hn1-a41

Ext Diameter: 115mm
Int Diameter : 54mm
Thickness : 14mm

Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 560 mm
Length of pickup coil's wire to grommet: 250 mm

Other specifications :
Number of wires: 6

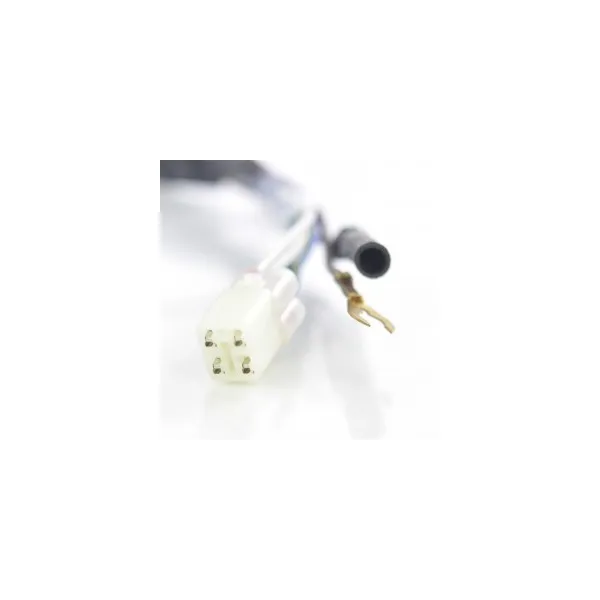

Number of plugs: 2
Number of terminals: 6
Alternator: Green to White = 0.4 ohms +/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms +/-20%
Source: Black/Red to Brown = 90 ohms +/-20%
