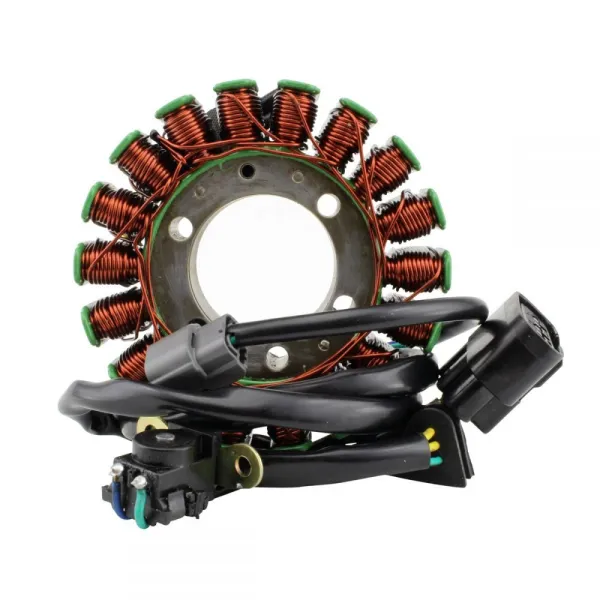

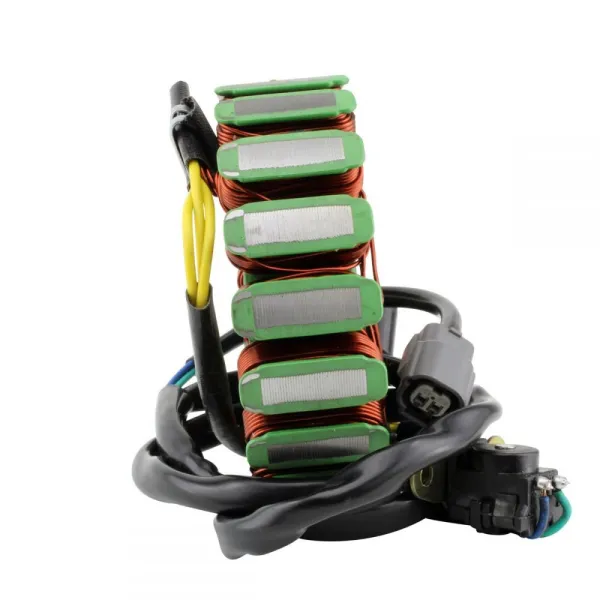

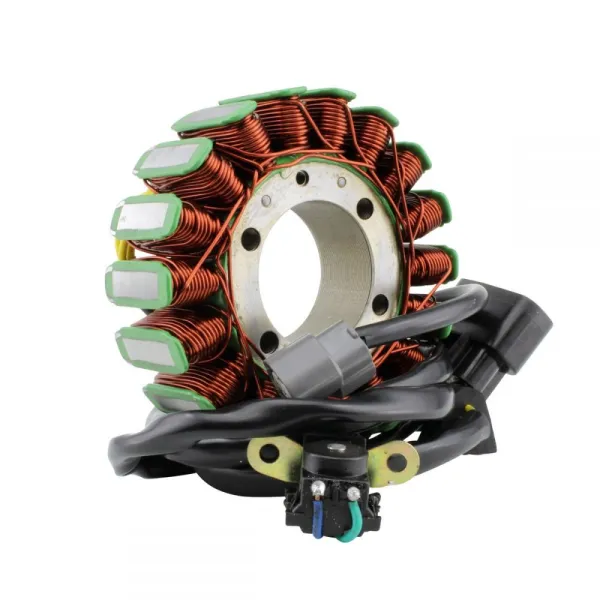

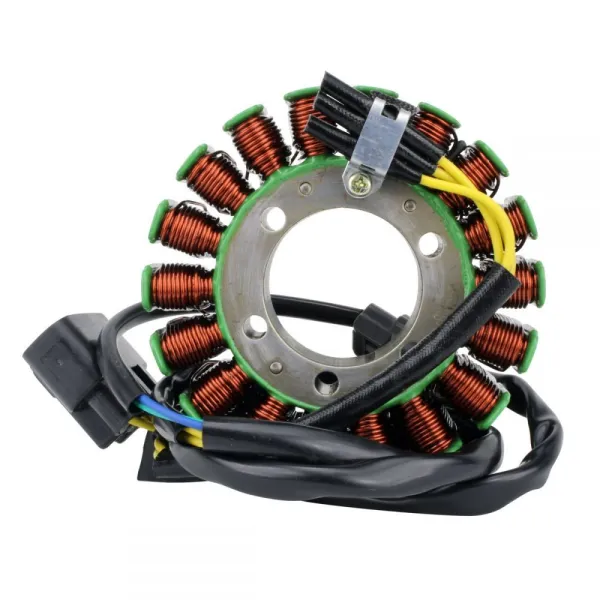

Stator Honda TRX420 Rancher OEM 31120-HR3-A42 31120-HR3-A41

Stator Honda TRX420 Rancher

Honda TRX 420 Rancher FA -- 2020
Honda TRX 420 Rancher FE -- 2014-2021
Honda TRX 420 Rancher FM -- 2014-2021
Honda TRX 420 Rancher TE -- 2014-2016, 2020-2021
Honda TRX 420 Rancher TM -- 2014-2021

OEM 31120-HR3-A42
31120-HR3-A41

Dimensions:
Internal diameter: 42 mm
External diameter: 107 mm
Thickness: 20mm

Other specifications:
Number of wires: 5

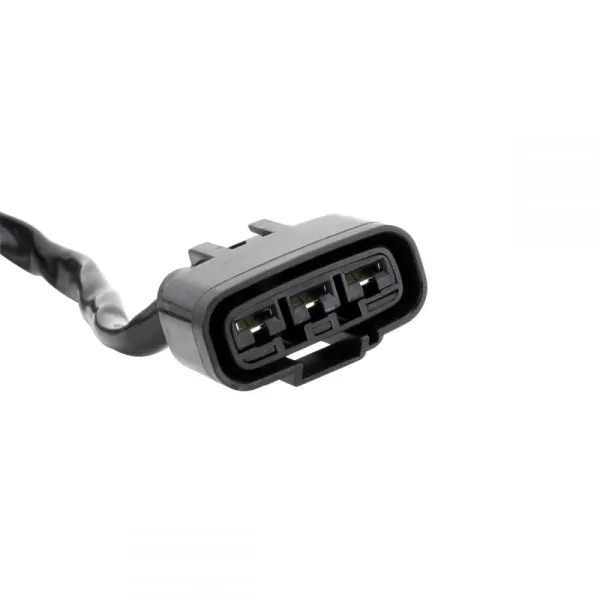

Number of connectors: 2
Number of terminals: 5
Number of poles: 18

Resistance between wires:
Alternator: Yellow to Yellow = 0.6 ohms +/- 20%
Ignition sensor: Blue to Green = 241 ohms +/- 20%

Resistant to 200 degrees Celsius
