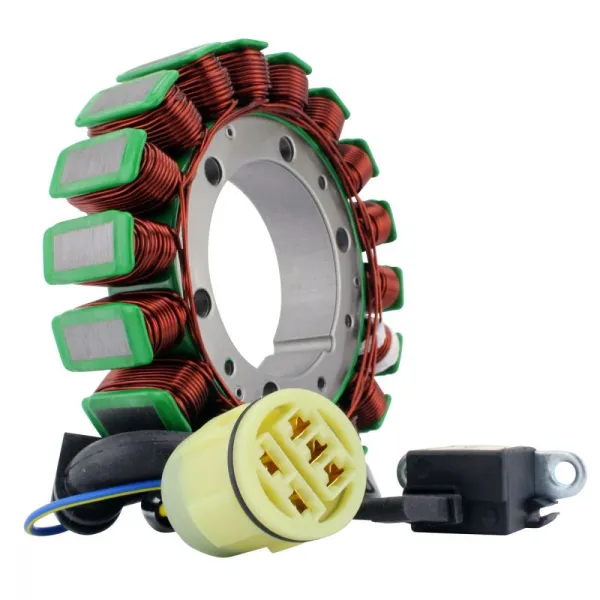

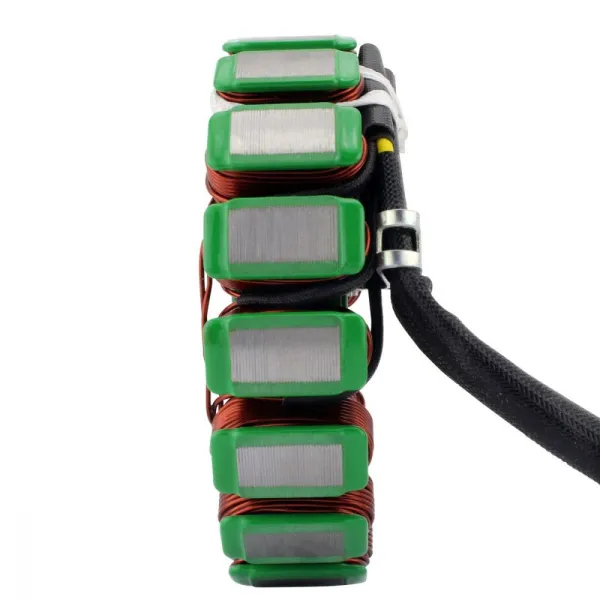

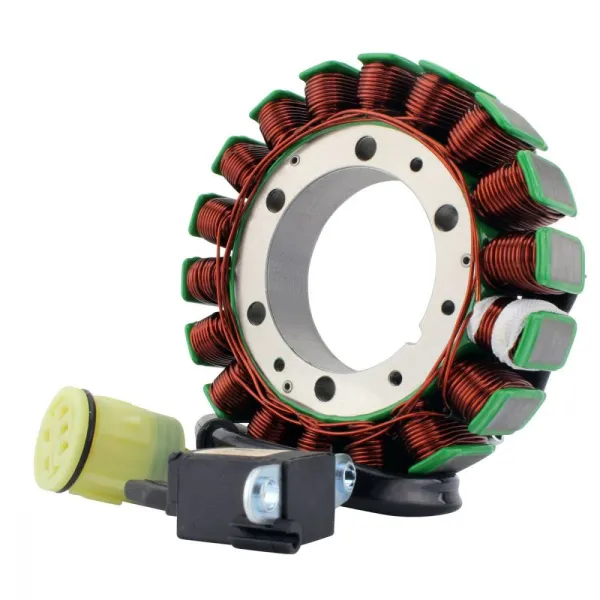

Stator Honda TRX650 Fourtrax Rincon OEM 31120-HN8-650 31120-HN8-003

• Stator

Highest grade copper windings, resistant to 200 degrees Celsius

2005 Honda TRX 650 Fourtrax Rincon
2004 Honda TRX 650 Fourtrax Rincon
2003 Honda TRX 650 Fourtrax Rincon

OEM 31120-HN8-650
31120-HN8-003

Dimensions:
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet: : 75 mm
Length of wires grommet to plug : 180 mm


Other specifications:
Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance:
Alternator : Yellow between each Yellow = 0.6 ohms +/-20%
Pickup : Blue/Yellow to White/Green = 340 ohms +/-20%
