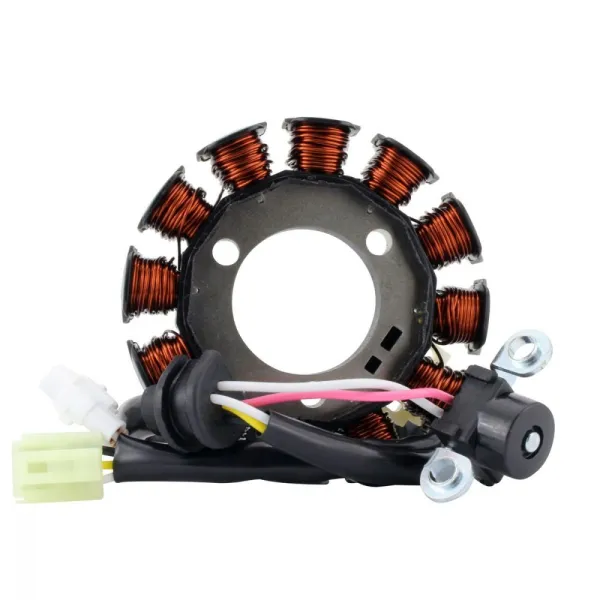

Stator Yamaha TTR110 OEM 5B6-H1410-01-00 5B6-H1410-00-00

2022 Yamaha TTR 110
2021 Yamaha TTR 110
2020 Yamaha TTR 110
2019 Yamaha TTR 110
2018 Yamaha TTR 110
2017 Yamaha TTR 110
2016 Yamaha TTR 110
2015 Yamaha TTR 110
2014 Yamaha TTR 110
2013 Yamaha TTR 110
2012 Yamaha TTR 110
2011 Yamaha TTR 110
2009 Yamaha TTR 110
2008 Yamaha TTR 110

OEM 5B6-H1410-01-00 5B6-H1410-00-00

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 92 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 280 mm
Length of pickup coil's wire to grommet: 55 mm

Other specifications:
Number of wires: 5

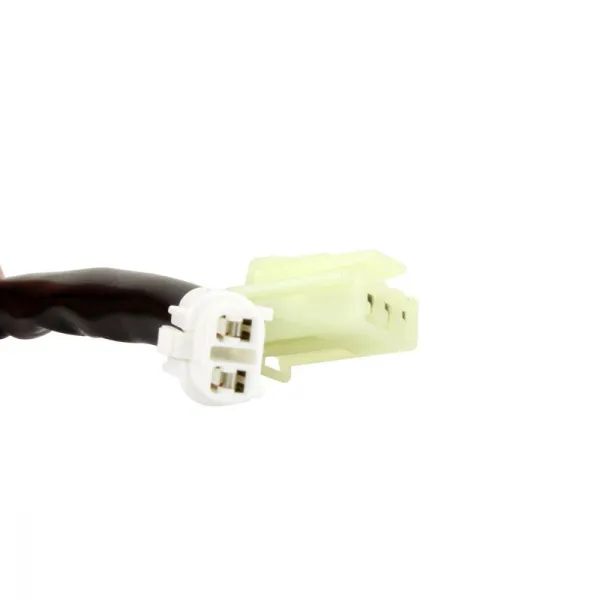

Number of plugs: 2
Number of pins: 5

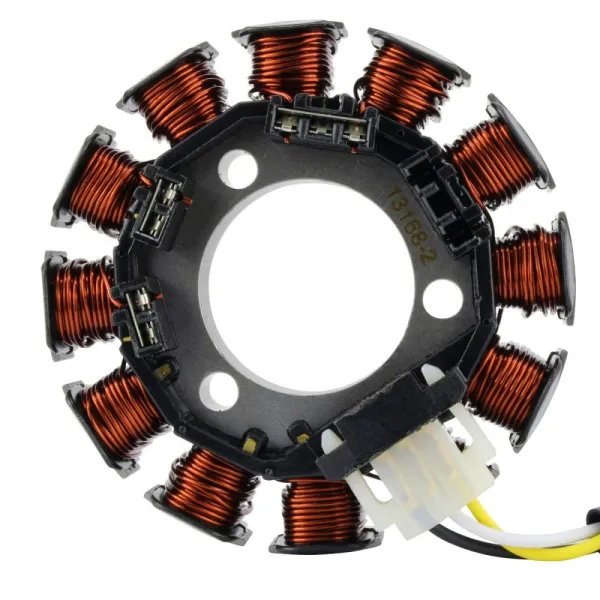

Number of poles: 12
Wire to wire resistance:
All 1p winding: Black to White = 0.9 ohms +-20%
Alternator #1: Yellow to Black = 0.6 ohms +-20%
Alternator #2: Yellow to White = 0.8 ohms +-20%

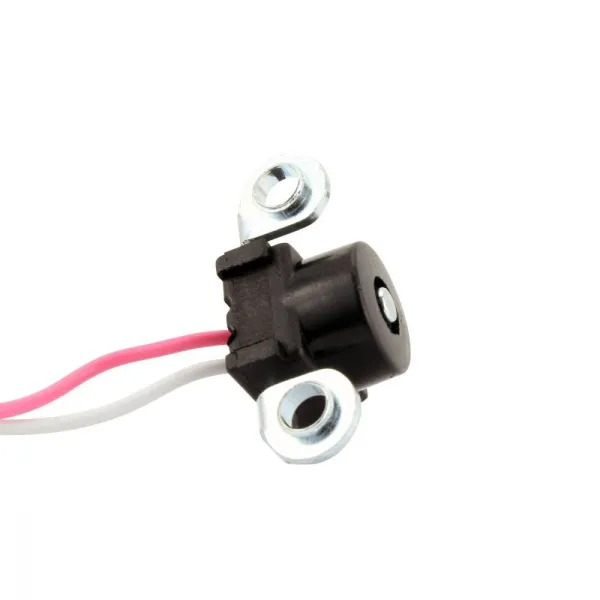

Pickup: Pink to White = 280 ohms +-20%
