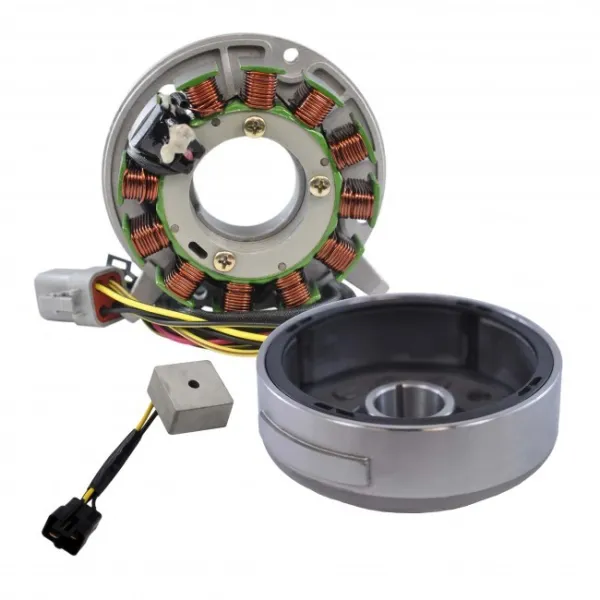

Kit Magneto Flywheel Stator Regulator Rectifier SkiDoo Tundra 300 R 1999-2005

Kit Magneto Flywheel Stator  Regulator Rectifier SkiDoo Tundra 300 R  1999-2005

Stator Resistant to 200 degrees Celsius

1999-2005 Ski-doo Tundra 300 R Carb F/C

OEM
Stator
420886603
420889365
420889366
420889369
420886602
420889368
420886608
410922749

Flywheel
420996829

Voltage Regulator Rectifier
515163800
410110600

Stator

Dimensions :
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to grommet : 500mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Grounf = 0.L Source : Red to Black = 80 ohms +/-20%

Flywheel

Dimensions:
Exterior Diameter: 117 mm
Interior Diameter: 96 mm
Interior Diameter Center Housing: 24 mm
Exterior Diameter Center Housing: 35 mm
Thickness (exterior): 46 mm
Thickness (interior): 23 mm
