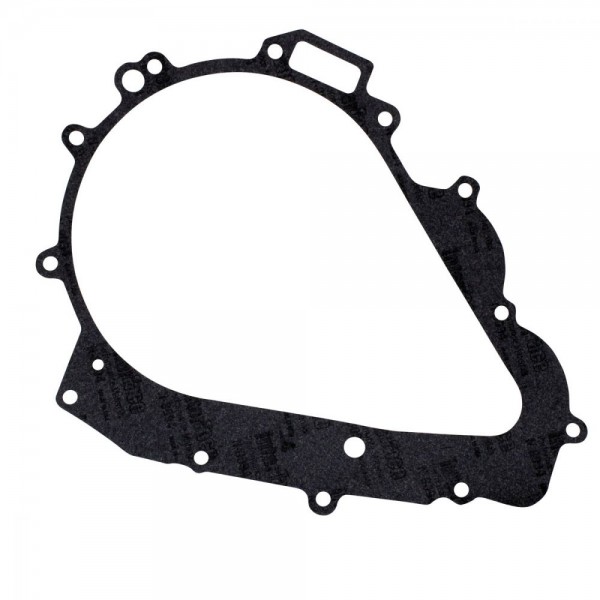

Stator Regulator Rectifier Gasket Aprilia Tuono 1000R RSV1000R OEM AP0685330

Stator Regulator Rectifier Gasket Aprilia Tuono 1000R RSV1000R

2009 Aprilia Tuono 1000 R
2008 Aprilia Tuono 1000 R
2008 Aprilia RSV 1000 R
2007 Aprilia Tuono 1000 R
2007 Aprilia RSV 1000 R
2006 Aprilia Tuono 1000 R
2006 Aprilia RSV 1000 R
2005 Aprilia RSV 1000 R
2004 Aprilia RSV 1000 R

OEM
AP0685330

Resistant to 200 degrees Celsius.

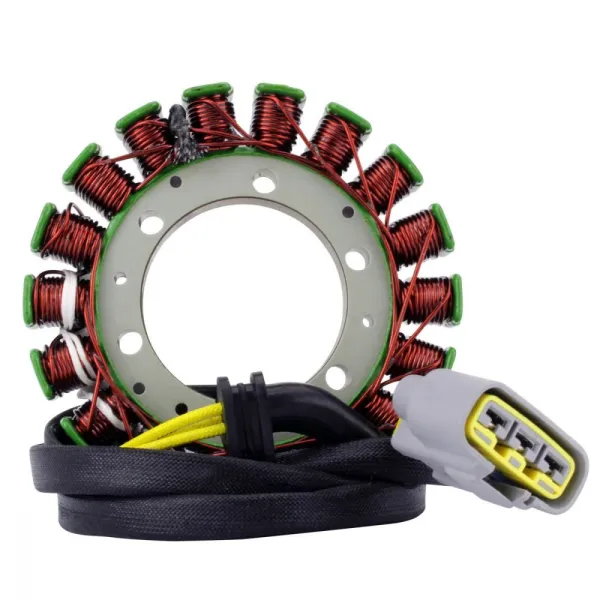

Dimensions :
Interior diameter : 55mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 950mm

Other specifications :
Number of wires : 3

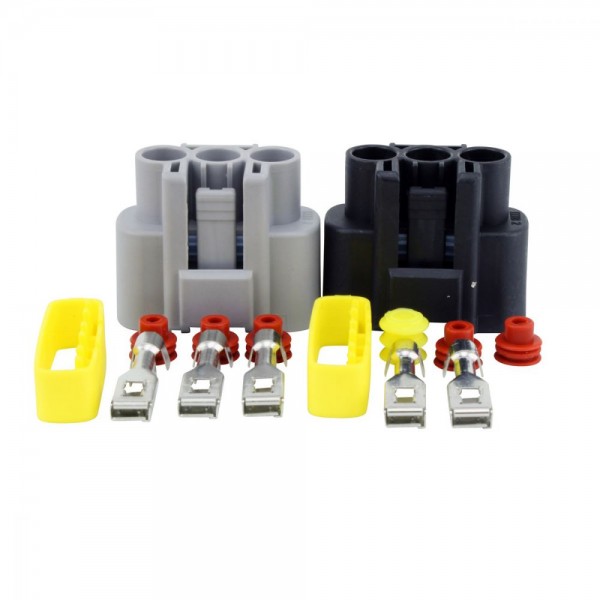

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%

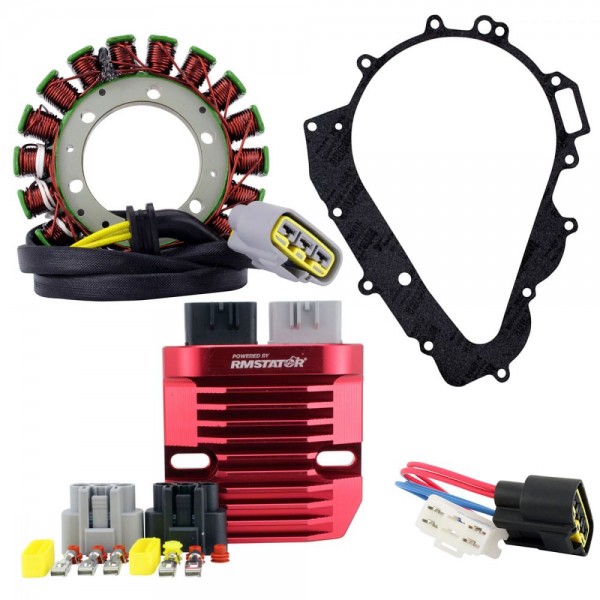

This solution kit replaces our CARM01445 stator
Our new solution kit brings a thinner stator with included
replacement bolts which generate about 85% of the stock
stator power without impact on the battery charging.

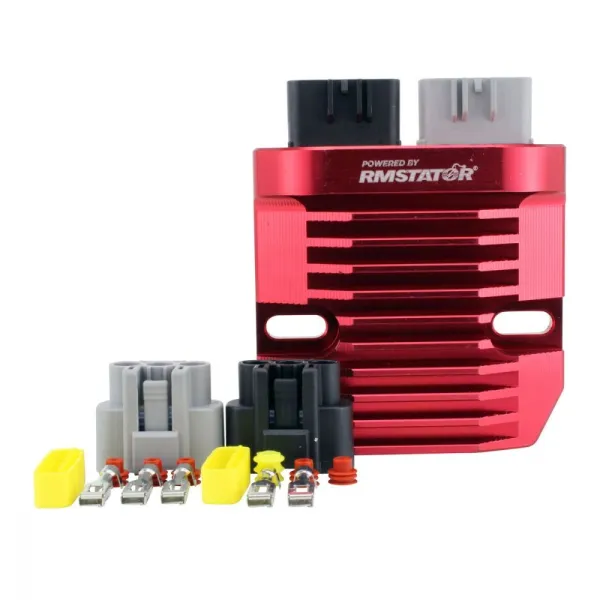

The stator is coupled with a 50A-rated SERIES-type voltage
regulator which runs cooler by stopping the power sent to
the voltage regulator instead of shunting it to the ground.
This configuration showed no defect on our test bike
which ran for a complete summer. The testing bike had
the dreaded 500W-generating flywheel (the 370W recall
flywheel was not installed) and still run our solution kit
without issues.
