Stator Yamaha Trailway 200 TW200 OEM 4WP-85510-10-00

€208.80 Tax included

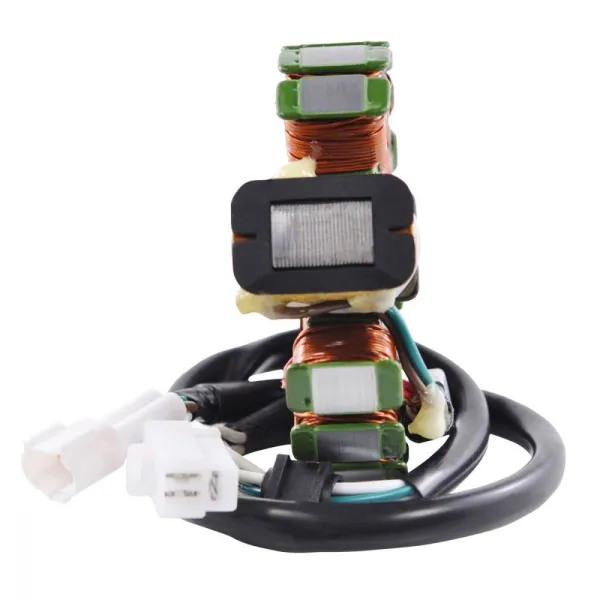

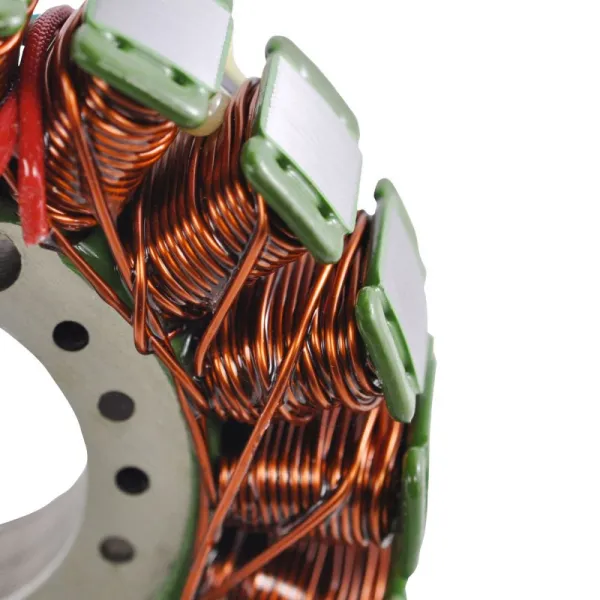

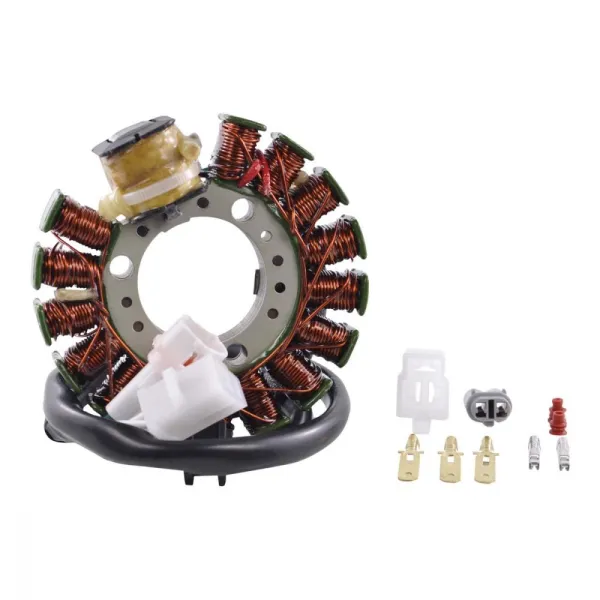

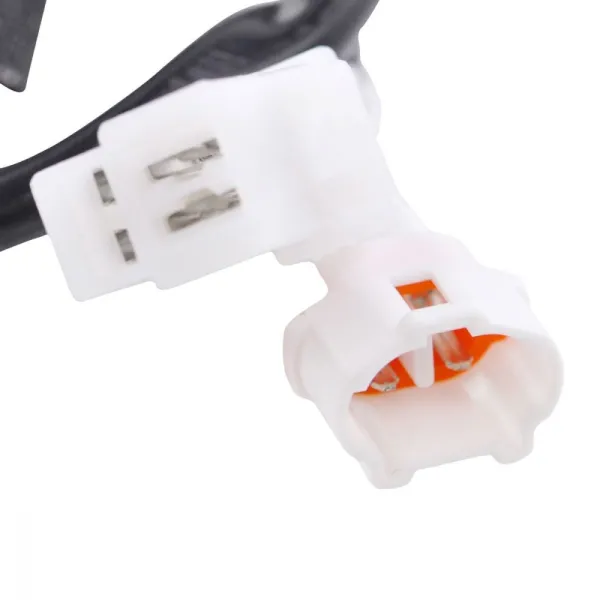

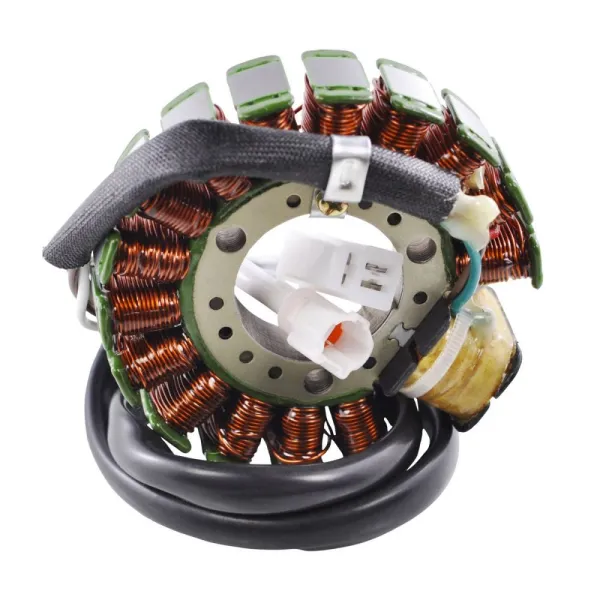

Stator Yamaha Trailway 200 TW200 OEM 4WP-85510-10-00

Reference
CARM01548
5-7 Days (2 Items)

  • Stator
  • Resistant to 200 degrees Celsius
  • 2001-2023 Yamaha Trailway 200 TW200
  • OEM 4WP-85510-10-00


    Dimensions :
    Interior diameter : 36 mm
    Exterior diameter : 97 mm
    Thickness : 14 mm
    Length of wires stator to grommet : 100 mm
    Length of wires grommet to plug : 500 mm

    Other specifications :
    Number of wires : 5
    Number of plugs : 2

    Wire to wire resistance :
    Alternator : White to White = 1.0 ohms +/-20%
    Source : Green to Brown = 800 ohms +/-20%
