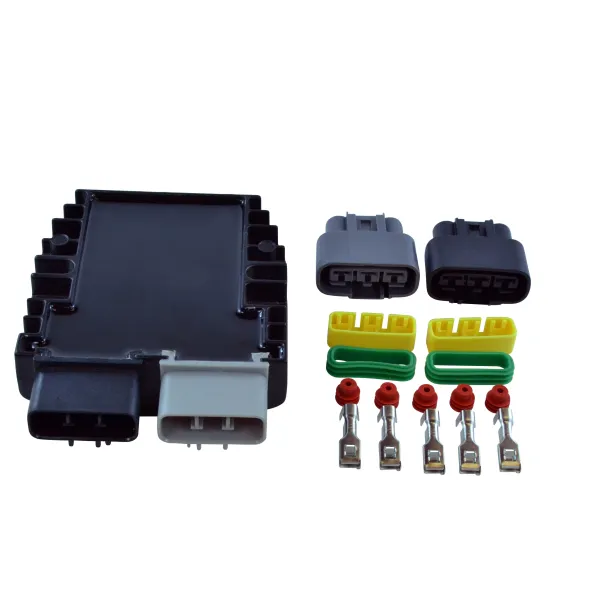

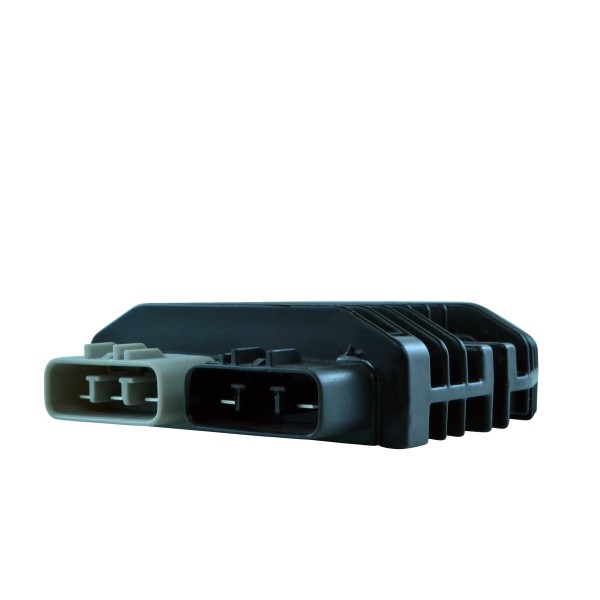

Lithium Ion Batteries Compatible Mosfet Voltage Regulator Rectifier ATV UTV Motorcycle Snowmobile PWC

Lithium Ion Batteries Compatible Mosfet Voltage Regulator Rectifier ATV UTV Motorcycle Snowmobile PWC

More details...

129,00 €

CARMS023-106203

Availability : 5-7 Days

4 items in stock

  • Regulator Rectifier
  • Dimensions:
    Width: 94 mm
    Length: 114 mm
    Height: 32 mm
    Fixation holes center to center: 74 mm
    Other specifications:
    Number of plugs: 2
    Number of pins: 5
    Number of wires: 5
    Minimum Charging Voltage: 14.5V +- 0.5V
    Maximum Charging Current: 50A/500W
    Open Circuit Voltage: 15V
    Operation Temperature: -20⁰ to 85⁰

  • It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

    Improved heat sink and charging capabilities

    Before installing your new voltage regulator rectifier:
    Check the AC output of the stator.
    Replace any burned or corroded connectors on stator and regulator/rectifier
    Check and repair any melted wiring.
    Use hi-temp dielectric grease on all connectors.

  • This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
    Brand new Mosfet voltage regulator rectifier
    WORKS WITH LITHIUM BATTERIES ONLY
    STOP BURNING YOUR REGULATOR RECTIFIER!
    It is time to update or replace your voltage regulator with the advanced MOSFET type.
    It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
    Direct replacement to your original unit.
    Plug-and-play, direct fit, easy installation.
    The quality exceeds the OEM equipment
    Higher grade of electric components.
    All shipped products are tested. All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

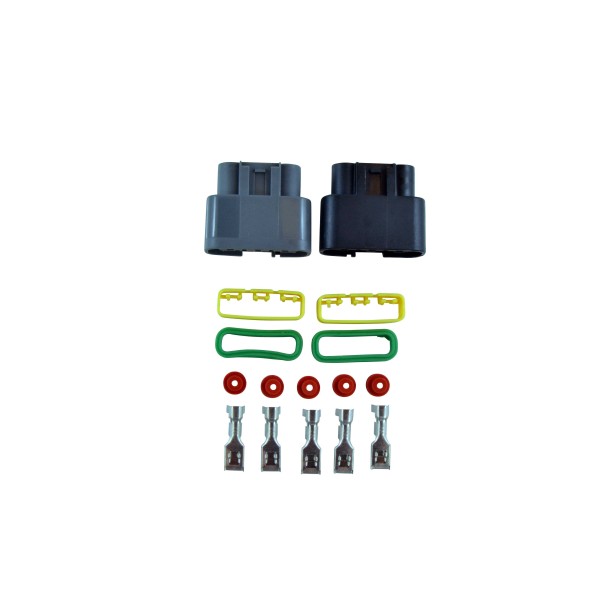

    We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
    *All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
    Why do you need a different voltage regulator for lithium batteries?
    Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The regulator is designed around the optimal parameters for these factors.
    The ripple effect is all that matters
    Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
    In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The  Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
    PLEASE NOTE : This universal voltage regulator is ONLY for lithium batteries THIS IS NOT FOR LEAD ACID BATTERIES. Output Voltage is the key factor in a voltage regulator designed specifically for Lithium batteries. The ideal charging voltage for Lithium batteries is 13.9-14.2VDC. The RMSTATOR regulator has a carefully set output voltage of 14.1VDC (+/- 0.1VDC). This stable and ideal output voltage carefully keeps a lithium battery in it’s ideal charging range.
    Please contact the manufacturer of your Lithium Ion Battery to ensure our product has the correct set point for their product
    Protect your investment in an expensive lithium battery with our lithium battery voltage regulator!

  • OEM
    4012941
    31600-MGZ-J01
    21066-0008
    1D7-81960-00-00
    1D7-81960-01-00
    710000908
    710001103
    710000870
    278002021
    515177325
    32800-26J01
    0824-072
    0824-078
    21066-0022
    21066-0714
    21066-0744
    0800-177000
    12317718422
    27D-81960-00-00
    31600-HP0-A01
    31600-HR0-F01
    31600-MJF-A01
    5JW-81960-00-00
    710000261
    T1300470
    T1300675
    8JP-H1960-00-00
    31600-HN8-003
    0000516
    21066-0771
    31600-HN8-000
    32800-26J00
    54040301B
    12318523367
