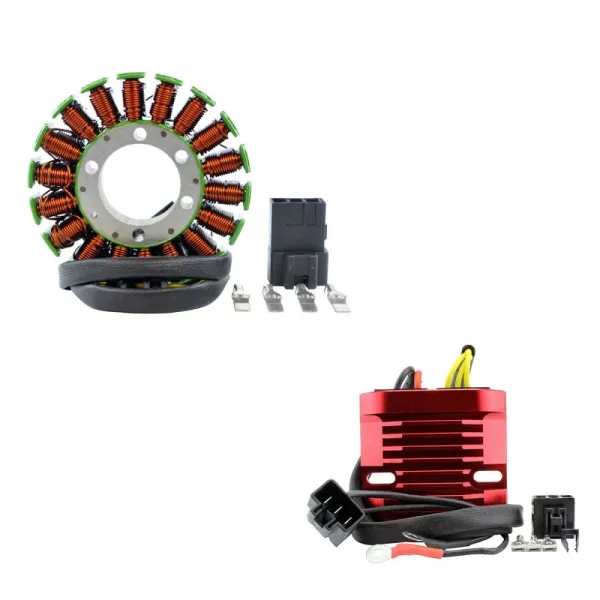

Kit Stator Aluminum Mosfet Regulator Honda VFR800 Interceptor OEM 31100-MCW-315 31100-MCW-325 31110-MCW-D01 31120-MCW-D01

Stator Resistant to 200°C

2009 Honda VFR 800 Interceptor
2008 Honda VFR 800 Interceptor
2007 Honda VFR 800 Interceptor
2006 Honda VFR 800 Interceptor
2005 Honda VFR 800 Interceptor
2004 Honda VFR 800 Interceptor
2003 Honda VFR 800 Interceptor
2002 Honda VFR800 Interceptor

OEM 31100-MCW-315 31100-MCW-325 31110-MCW-D01 31120-MCW-D01

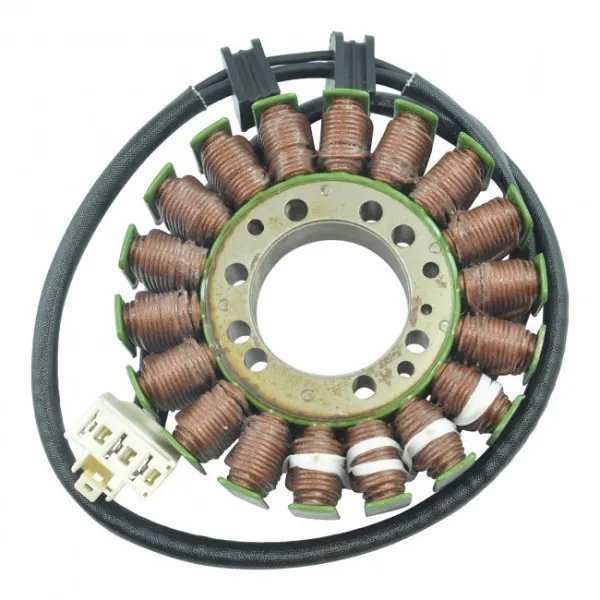

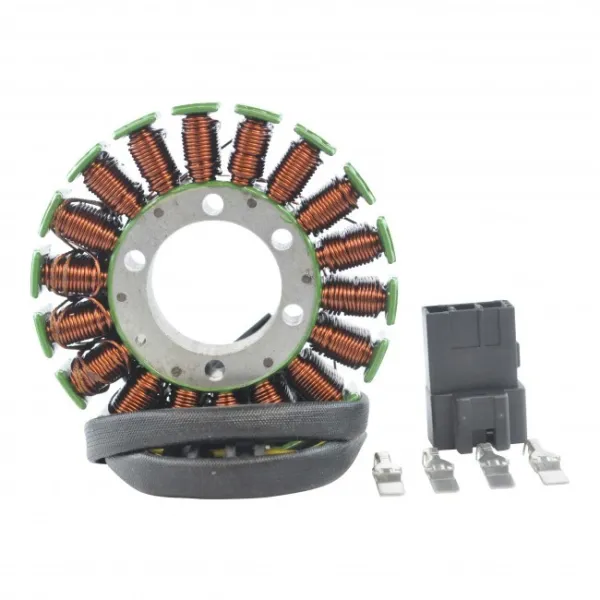

Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 600 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L

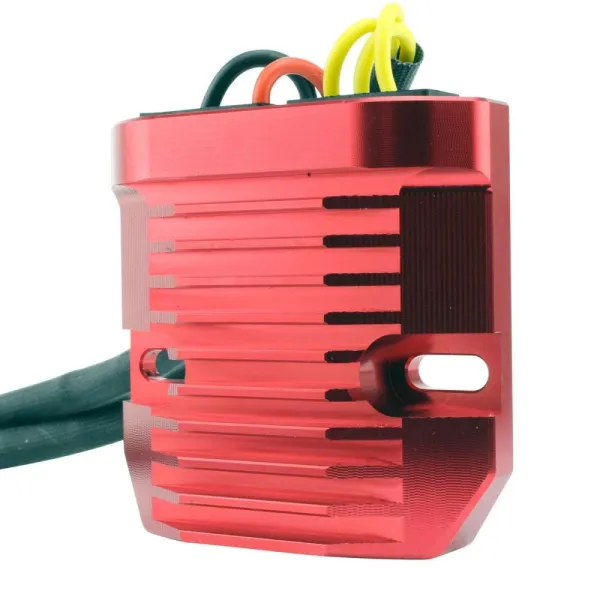

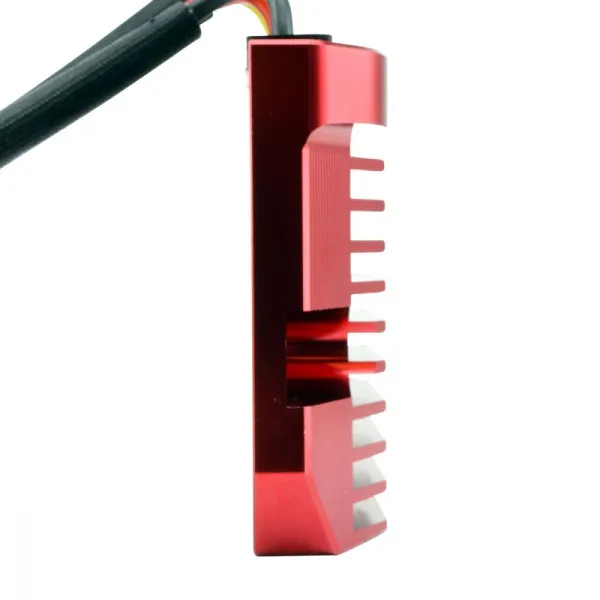

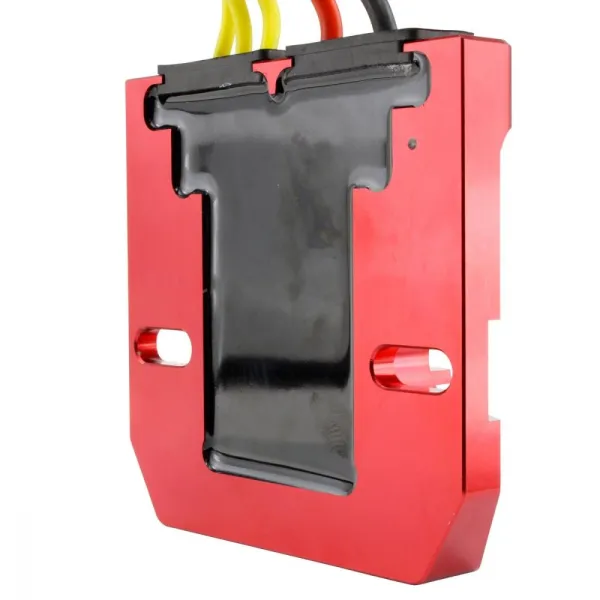

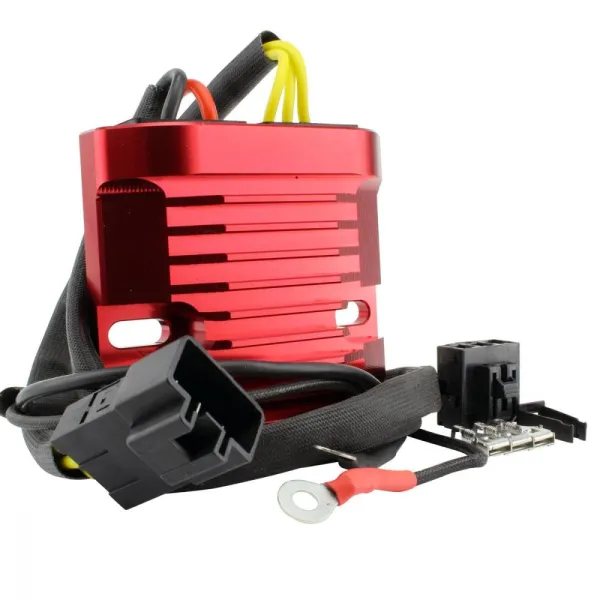

Red Machined Aluminum Mosfet Voltage Regulator Rectifier
Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 810 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
