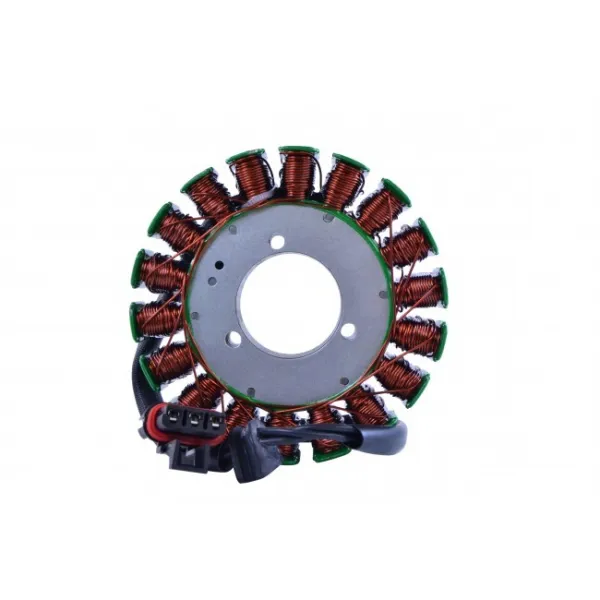

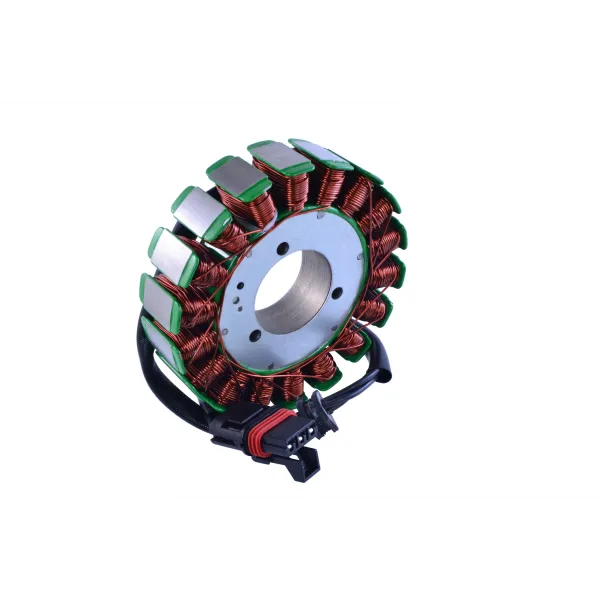

Stator Victory Kingpin Cory Ness Jackpot Vegas 8 Ball Special Edition Sport Cruiser Standard Cruiser OEM 4010436

2006 Victory Cory Ness Jackpot
2006 Victory Touring Cruiser
2006 Victory Vegas
2006 Victory Vegas 8 Ball
2005 Victory Cory Ness Jackpot
2005 Victory Kingpin
2005 Victory Touring Cruiser
2005 Victory Vegas
2005 Victory Vegas 8 Ball
2004 Victory Cory Ness Jackpot
2004 Victory Kingpin
2004 Victory Touring Cruiser
2004 Victory Vegas
2004 Victory Vegas 8 Ball
2003 Victory Classic Cruiser
2003 Victory Cory Ness Jackpot
2003 Victory Touring Cruiser
2003 Victory Vegas
2003 Victory Vegas 8 Ball
2002 Victory Deluxe Cruiser
2002 Victory Standard Cruiser
2002 Victory Touring Cruiser
2001 Victory Deluxe Cruiser
2001 Victory Sport Cruiser
2001 Victory Standard Cruiser
2000 Victory Special Edition
2000 Victory Sport Cruiser
2000 Victory Standard Cruiser
1999 Victory Standard Cruiser

OEM 4010436

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 124 mm
Thickness : 34 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 220 mm
Other specifications :

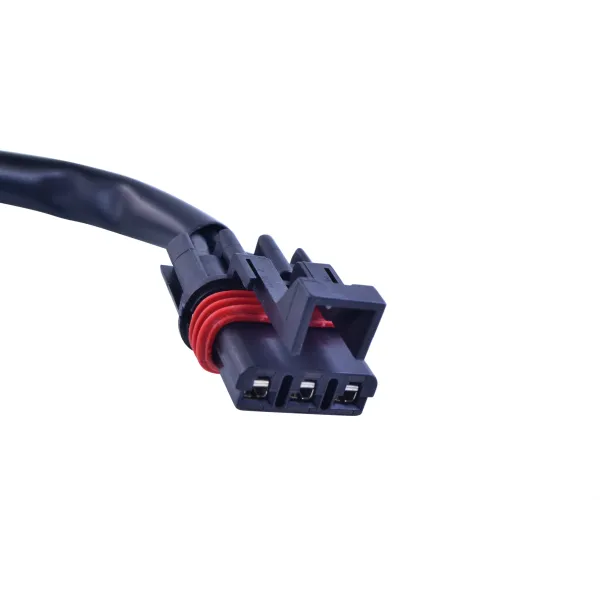

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black between each Black = 0.7 ohms +-20%
