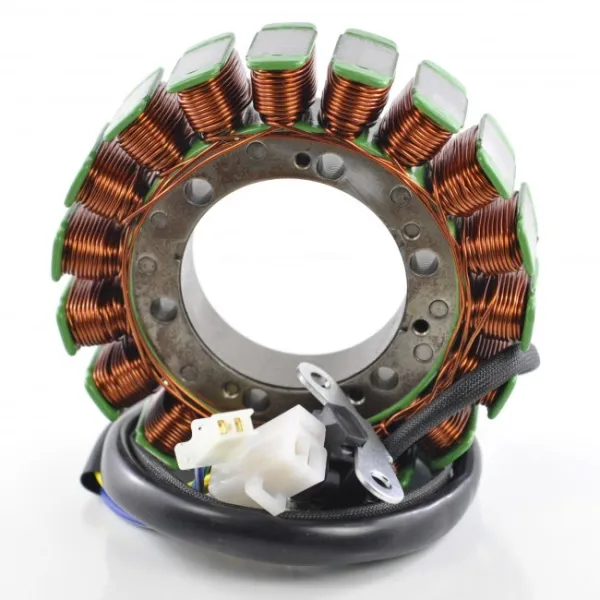

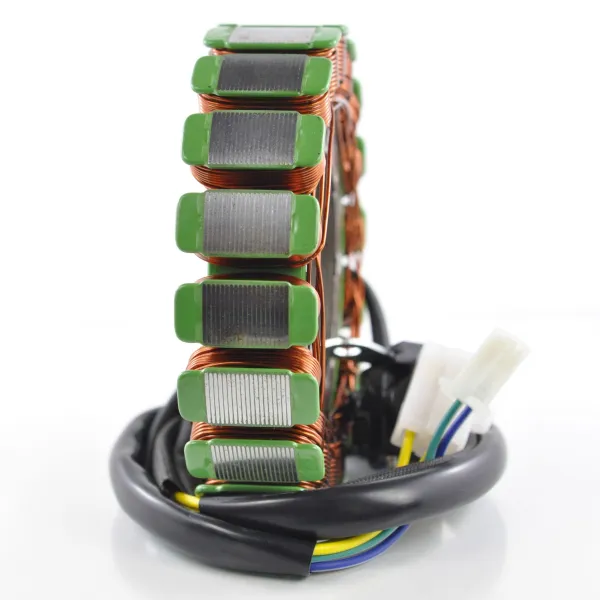

Stator Suzuki Boulevard C50 VL800 Volusia OEM 32101-41F00

Stator

2005 Suzuki Boulevard C50 VL800
2004 Suzuki VL800 Volusia
2003 Suzuki VL800 Volusia
2002 Suzuki VL800 Volusia
2001 Suzuki VL800 Volusia

OEM 32101-41F00

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 330 mm
Length of wires grommet to plug : 355 mm
Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5

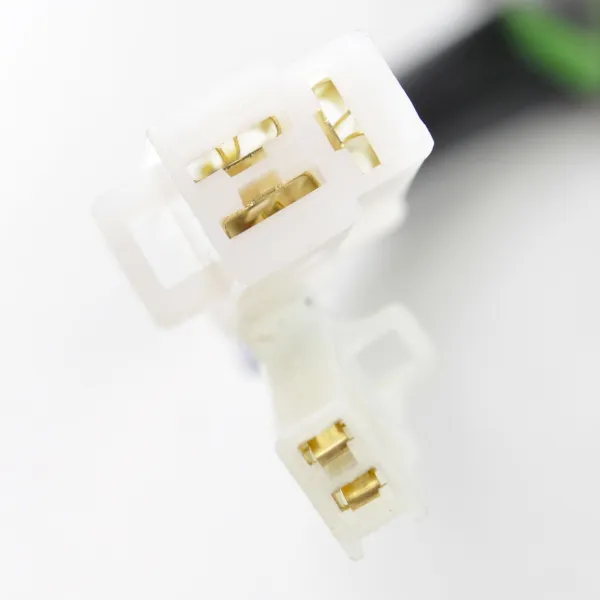

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Green To Blue = 251 ohms +-20%

Resistant to 200 degrees Celsius
