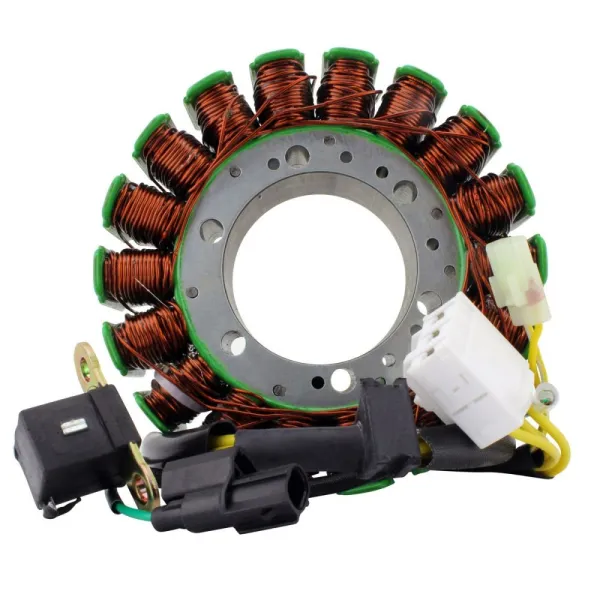

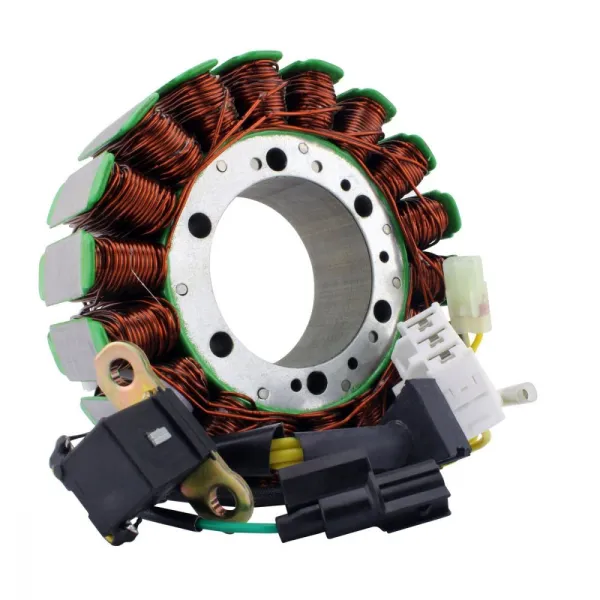

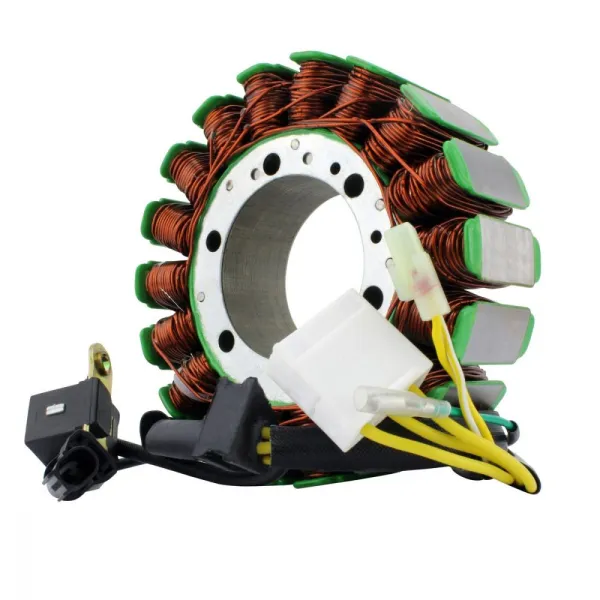

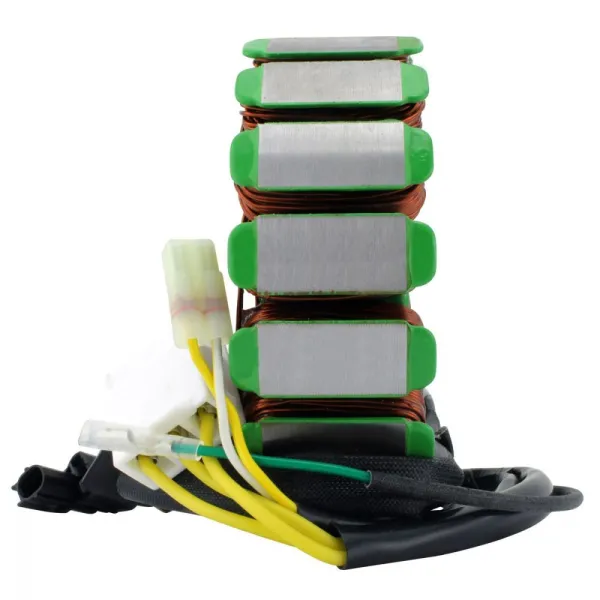

Stator Honda VT1300 OEM 31120-MFR-671

2010-2024 Honda VT 1300

OEM 31120-MFR-671

Dimensions:
Interior diameter: 54mm
Exterior diameter: 126mm
Thickness: 32 mm
Length of wires stator to grommet: 150mm
Length of wires grommet to plug: 220,220,250 mm
Length of pickup coil's wire to grommet: 100mm

Other specifications:
Number of wires: 6

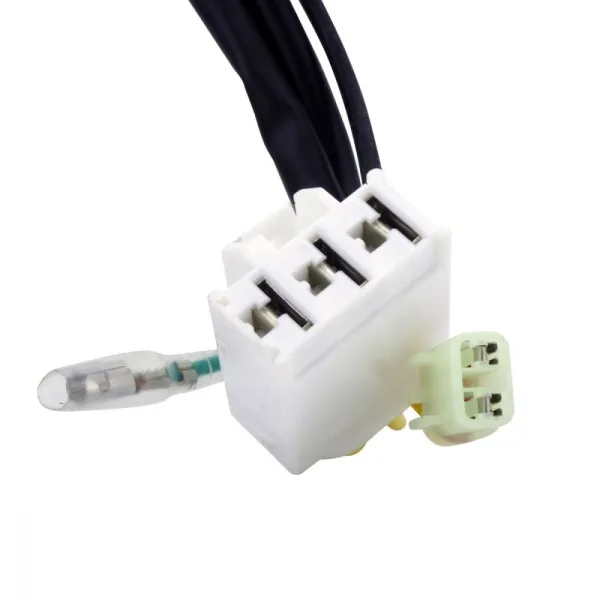

Number of plugs: 3
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%

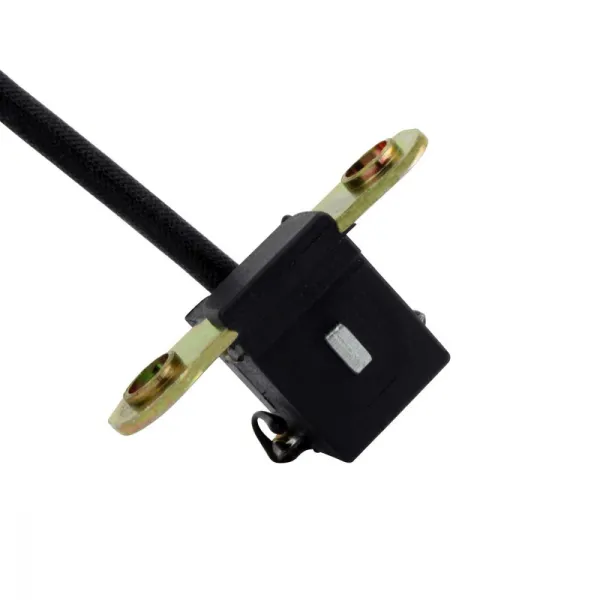

Pickup: Yellow to White/Yellow= 198 ohms +-20%
