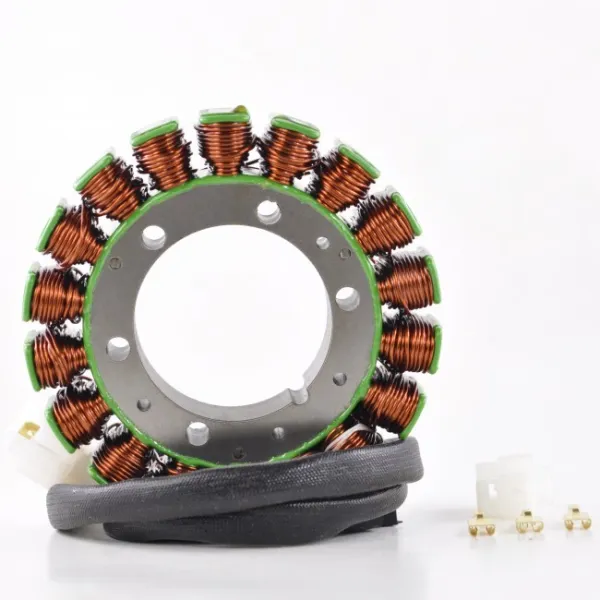

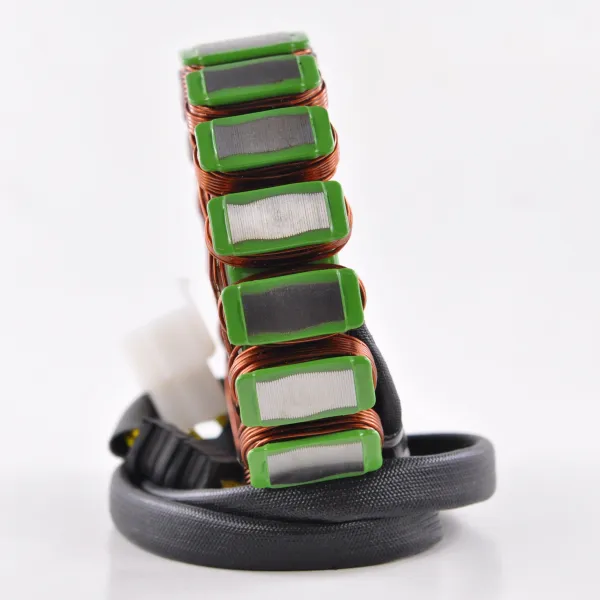

Stator-Honda-VT750 Spirit-American-Ace

Stator

OEM 31120-MBA-004

Resistant to 200 degrees Celsius

1998 Honda VT 750 C2
1999 Honda VT 750 C2
2000 Honda VT 750 C2

2001 Honda VT 750 CD Ace Shadow
2002 Honda VT 750 CD Ace Shadow
2003 Honda VT 750 CD Ace Shadow

1998 Honda VT 750 CD2 American Classic
1999 Honda VT 750 CD2 American Classic
2000 Honda VT 750 CD2 American Classic
2001 Honda VT 750 CD2 American Classic

2001 Honda VT 750 DC Spirit
2002 Honda VT 750 DC Spirit
2003 Honda VT 750 DC Spirit
2005 Honda VT 750 DC Spirit
2006 Honda VT 750 DC Spirit
2007 Honda VT 750 DC Spirit

1988 Honda VT 750C Ace
1989 Honda VT 750C Ace
1990 Honda VT 750C Ace
1991 Honda VT 750C Ace
1992 Honda VT 750C Ace
1993 Honda VT 750C Ace
1994 Honda VT 750C Ace
1995 Honda VT 750C Ace
1996 Honda VT 750C Ace
1997 Honda VT 750C Ace
1998 Honda VT 750C Ace
1999 Honda VT 750C Ace
2000 Honda VT 750C Ace

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 113 mm
Thickness : 24 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 600 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
