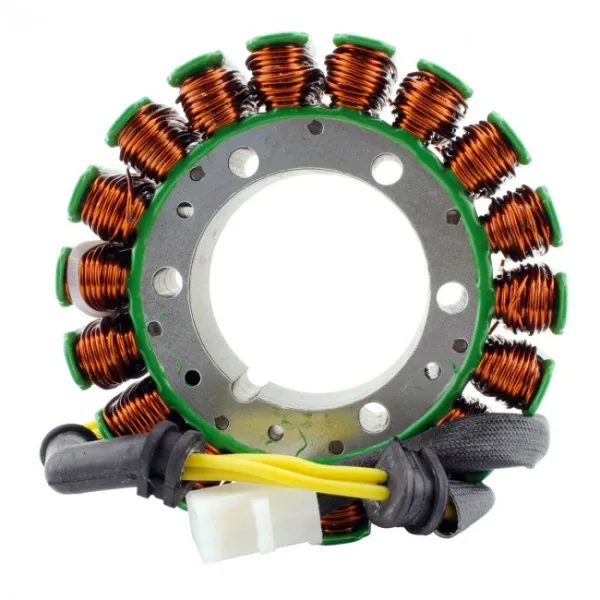

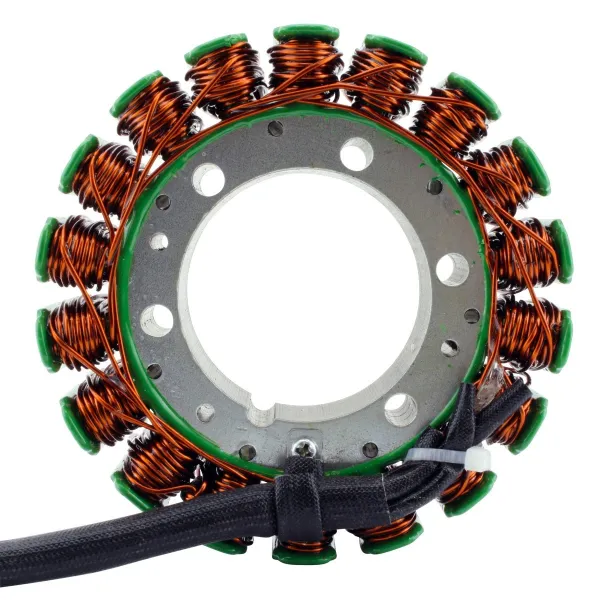

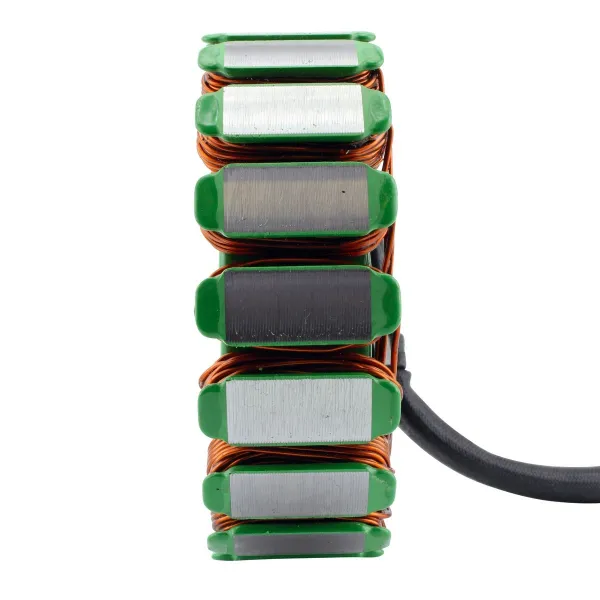

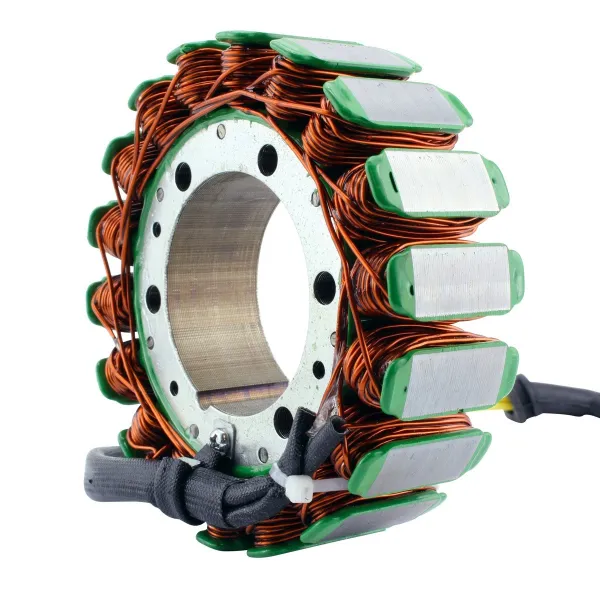

Stator Honda VT800 Shadow VT700 Shadow OEM 31120-MK7-005

Stator

1988 Honda VT 800 Shadow
1987 Honda VT 700 Shadow
1986 Honda VT 700 Shadow

OEM 31120-MK7-005

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 26 mm
Length of wires stator to grommet : 105 mm
Length of wires grommet to plug : 290 mm

Other specifications :
Number of wires : 3

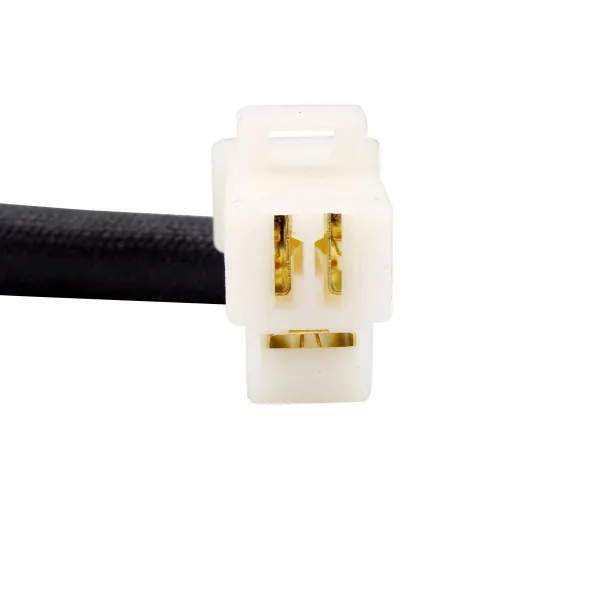

Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator : Between each Yellow = 0.9 ohms +-20%

Resistant to 200 degrees Celsius
