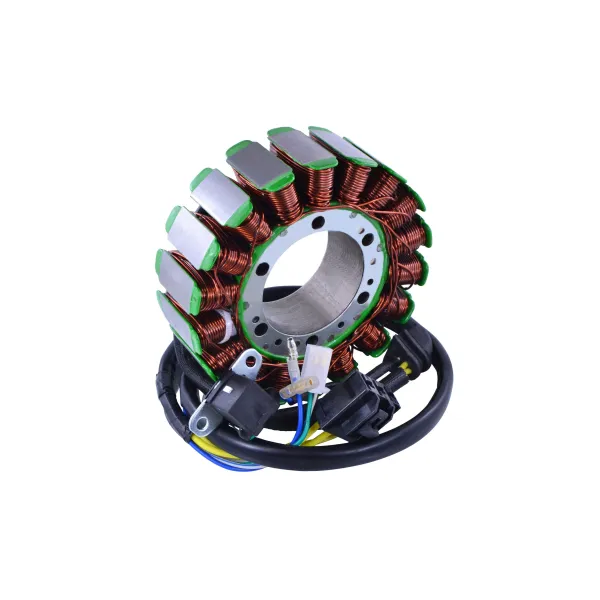

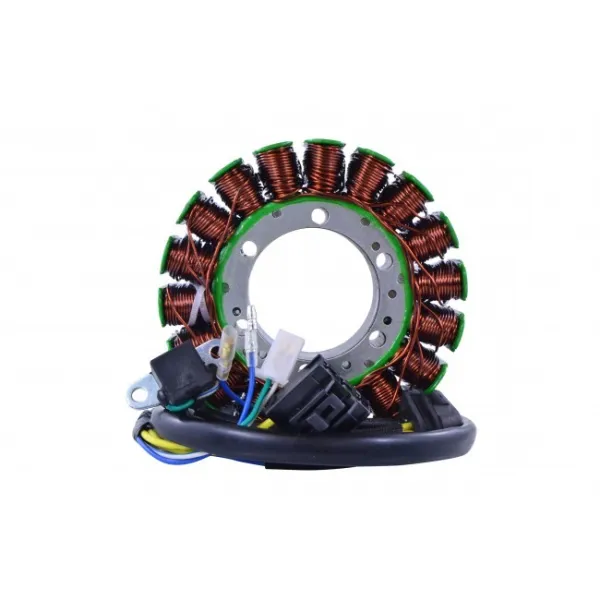

Stator Honda VTX1300 OEM 31120-MEA-741

Stator

2009 Honda VTX 1300 C
2009 Honda VTX 1300 R
2009 Honda VTX 1300 T
2008 Honda VTX 1300 C
2008 Honda VTX 1300 R
2008 Honda VTX 1300 T
2007 Honda VTX 1300 C
2007 Honda VTX 1300 R
2007 Honda VTX 1300 S
2006 Honda VTX 1300 C
2006 Honda VTX 1300 R
2006 Honda VTX 1300 S
2005 Honda VTX 1300 C
2005 Honda VTX 1300 R
2005 Honda VTX 1300 S

OEM 31120-MEA-741

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 42 mm
Length of wires stator to grommet : 175 mm
Length of wires grommet to plug : 640 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7

Wire to wire resistance :
Alternator 3p : Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Blue/White to Green = 0.36 ohms +-20%
