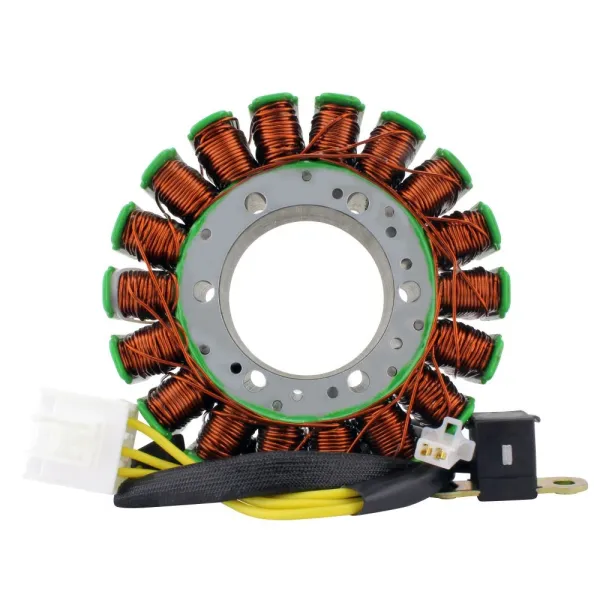

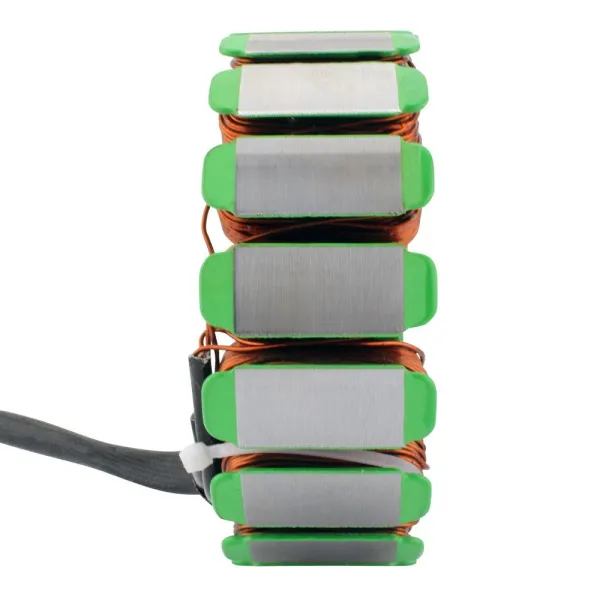

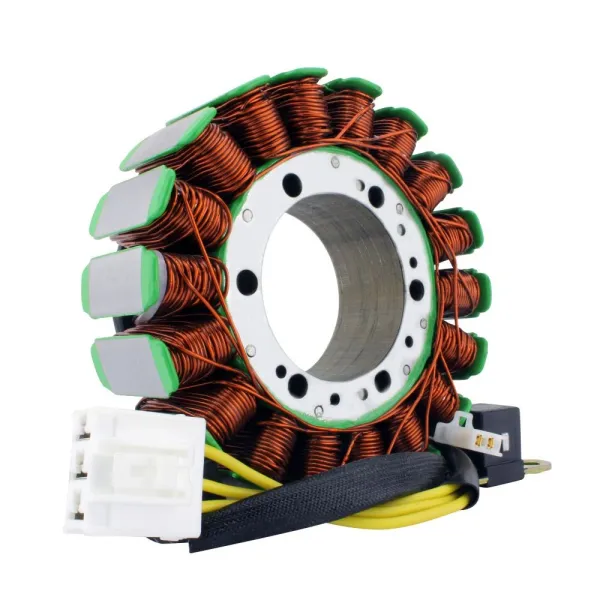

Stator-Honda-VTX1800

2008 Honda VTX 1800 T
2008 Honda VTX 1800 N
2007 Honda VTX 1800 T
2007 Honda VTX 1800 R Retro
2007 Honda VTX 1800 N
2007 Honda VTX 1800 F
2007 Honda VTX 1800 C
2006 Honda VTX 1800 S Spoke Wheel
2006 Honda VTX 1800 R Retro
2006 Honda VTX 1800 N
2006 Honda VTX 1800 F
2006 Honda VTX 1800 C
2005 Honda VTX 1800 S Spoke Wheel
2005 Honda VTX 1800 R Retro
2005 Honda VTX 1800 N
2005 Honda VTX 1800 F
2005 Honda VTX 1800 C
2004 Honda VTX 1800 S Spoke Wheel
2004 Honda VTX 1800 R Retro
2004 Honda VTX 1800 N
2004 Honda VTX 1800 C
2003 Honda VTX 1800 S Spoke Wheel
2003 Honda VTX 1800 R Retro
2003 Honda VTX 1800 C
2002 Honda VTX 1800 S Spoke Wheel
2002 Honda VTX 1800 R Retro
2002 Honda VTX 1800 C

OEM 31120-MCH-003

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 32 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug #1: 100 mm
Length of wires grommet to plug #2: 190 mm
Length of pickup coil's wire to grommet: 180mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%
Pickup: Green to White/Blue = 194 ohms +-20%
