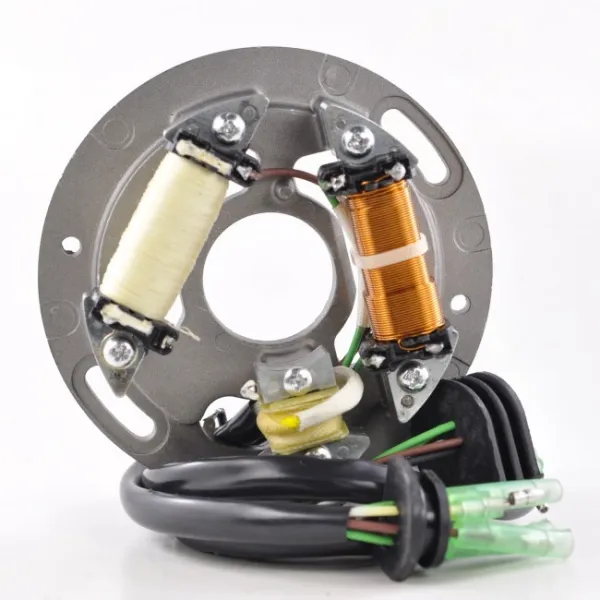

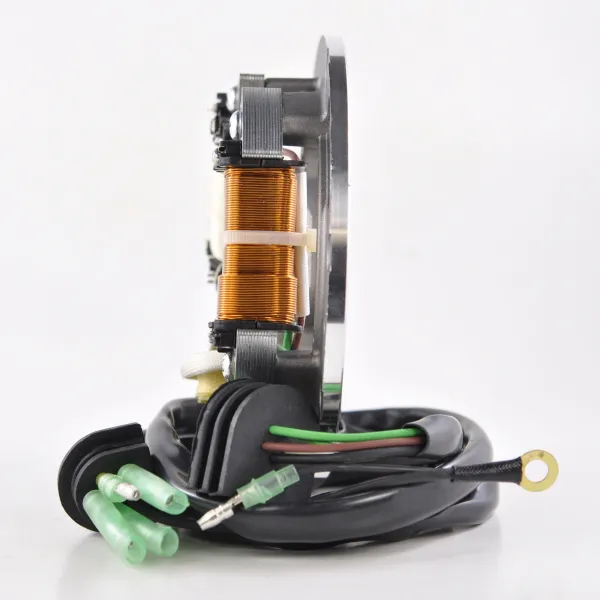

Stator Yamaha SJ700 Super Jet 700 Waverunner XL700 Wave Venture 700 Wave Raider 700

Stator - resistant to 200 degrees Celsius

2017 Yamaha SJ 700
2016 Yamaha SJ 700
2015 Yamaha SJ 700
2014 Yamaha SJ 700
2013 Yamaha SJ 700
2012 Yamaha Super Jet 700
2011 Yamaha Super Jet 700
2010 Yamaha Super Jet 700
2009 Yamaha Super Jet 700
2008 Yamaha Super Jet 700
2007 Yamaha Super Jet 700
2006 Yamaha Super Jet 700
2005 Yamaha Super Jet 700
2004 Yamaha Super Jet 700
2004 Yamaha Waverunner XL 700
2003 Yamaha Waverunner XL 700
2002 Yamaha Super Jet 700
2002 Yamaha Waverunner XL 700
2001 Yamaha Super Jet 700
2001 Yamaha Waverunner XL 700
2000 Yamaha Super Jet 700
2000 Yamaha Waverunner XL 700
1999 Yamaha Super Jet 700
1999 Yamaha Waverunner XL 700
1998 Yamaha Wave Venture 700
1996 Yamaha Wave Raider 700
1996 Yamaha Wave Venture 700
1995 Yamaha Wave Raider 700
1995 Yamaha Wave Venture 700
1994 Yamaha Wave Raider 700

OEM 6R8-85560-10-00
62T-85560-00-00
6R7-85560-10-10
6R8-85560-10-00

Dimensions :
Source diameter : 89 mm
Other specifications :
Number of wires: 6
Number of plugs :
Number of pins: 6

Wire to wire resistance :
Alternator : Green to Green = 1.6 ohms +-20%
Pickup :Yellow/White To Black = 16 ohms +-20%
Source :Brown to Black = 560 ohms +-20%
