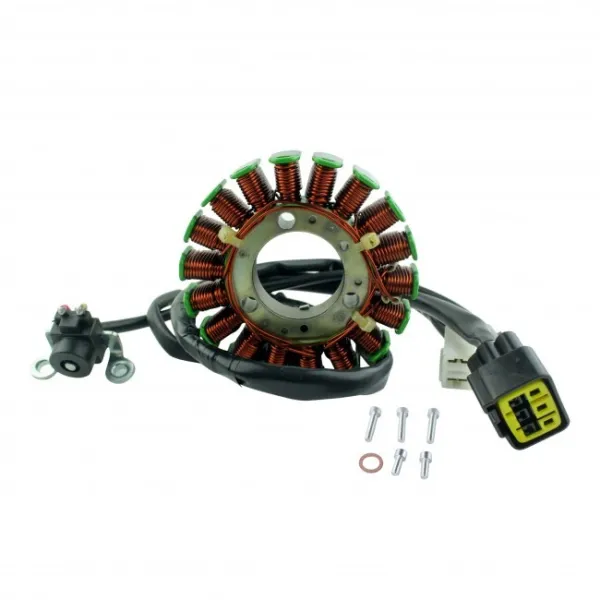

Stator Yamaha WR250R

2020 Yamaha WR 250 R

2019 Yamaha WR 250 R

2018 Yamaha WR 250 R

2017 Yamaha WR 250 R

2016 Yamaha WR 250 R

2015 Yamaha WR 250 R

2014 Yamaha WR 250 R

2013 Yamaha WR 250 R

2012 Yamaha WR 250 R

2011 Yamaha WR 250 X

2011 Yamaha WR 250 R

2010 Yamaha WR 250 X

2010 Yamaha WR 250 R

2009 Yamaha WR 250 X

2009 Yamaha WR 250 R

2008 Yamaha WR 250 X

2008 Yamaha WR 250 R

Resistant to 200 degrees Celsius

OEM Stator:
3D7-81410-00-00
3D7-81410-01-00

Dimensions:

Interior diameter : 35mm

Exterior diameter : 98mm

Thickness : 15mm

Length of wires stator to grommet : 140mm

Length of wires grommet to plug : 400mm

Length of pickup coil's wire to grommet : 85mm

Other specifications :

Number of wires : 7

Number of plugs : 3

Number of pins : 9

Wire to wire resistance :

Alternator : White between each White = 0.4ohms +/-20%

Pickup : Pink to White = 265ohms +/-20%
