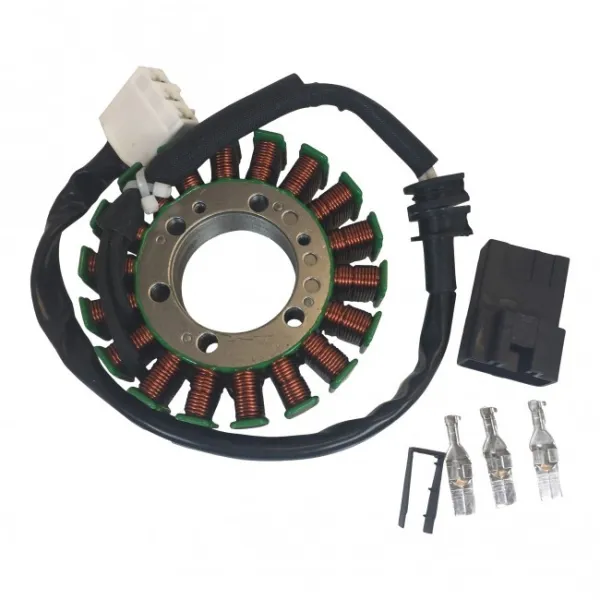

Stator Yamaha FZ6R XJ600

2017 Yamaha FZ6 R 600
2016 Yamaha FZ6 R 600
2016 Yamaha XJ 600 A EFI
2016 Yamaha XJ 600 EFI
2015 Yamaha FZ6 R 600
2015 Yamaha XJ 600 A EFI
2015 Yamaha XJ 600 EFI
2014 Yamaha FZ6 R 600
2014 Yamaha XJ 600 A EFI
2014 Yamaha XJ 600 EFI
2013 Yamaha FZ6 R 600
2013 Yamaha XJ 600 A EFI
2013 Yamaha XJ 600 EFI
2012 Yamaha FZ6 R 600
2011 Yamaha FZ6 R 600
2011 Yamaha XJ 600 A EFI
2011 Yamaha XJ 600 EFI
2010 Yamaha FZ6 R 600
2010 Yamaha XJ 600 A EFI
2010 Yamaha XJ 600 EFI
2009 Yamaha FZ6 R 600
2009 Yamaha XJ 600 A EFI
2009 Yamaha XJ 600 EFI

OEM 20S-81410-00-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 31 mm
Length of wires stator to grommet : 122 mm
Length of wires grommet to plug : 285 mm

For the XJ6, there may be different stator sizes.

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
