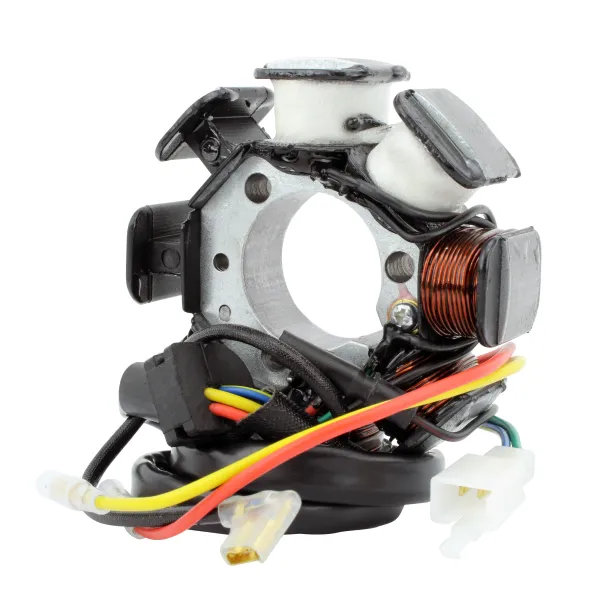

Stator Honda XR250R OEM 31120-KCE-671

Stator

Resistant to 200 degrees Celsius

1996-2004  HONDA XR250R

OEM 31120-KCE-671

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92.8 mm
Thickness : 8 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 500 mm
Length of wires Pickup coil to grommet : 90 mm

Other specifications :
Number of wires : 5
Number of plugs : 4
Number of pins : 5

Wire to wire resistance :
Alternator : Red to Yellow = 1.1 ohms +-20%
Source Coil : Black/Red to Green = 160 ohms +-20%
