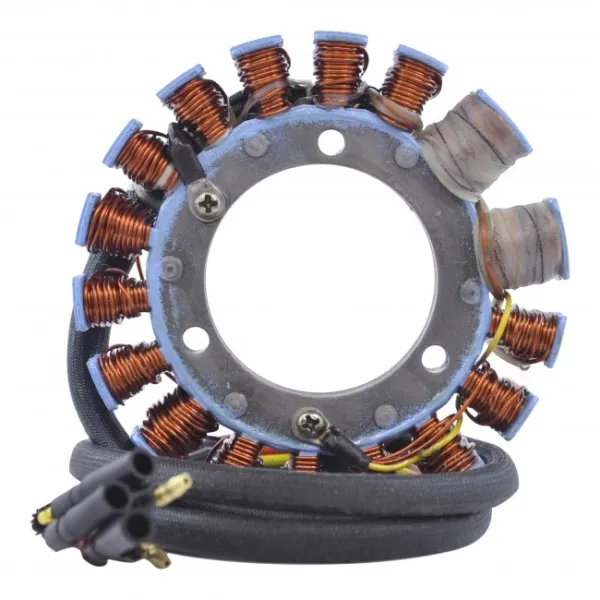

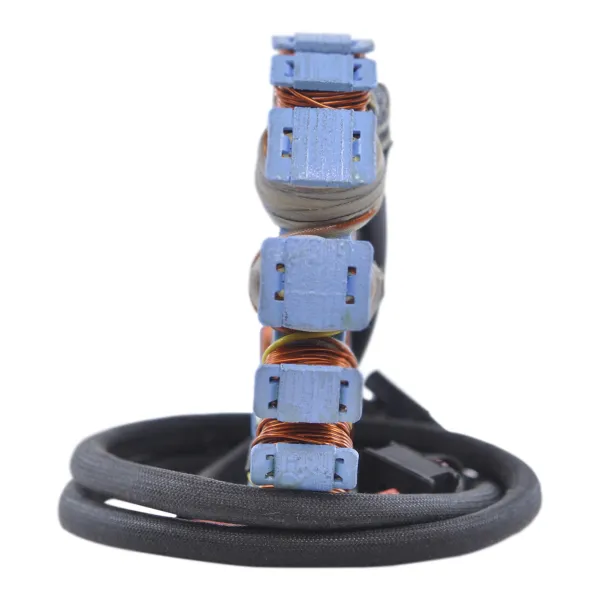

Stator Honda XL600R XR350R XR500R

Stator

Resistant to 200 degrees Celsius

1987 Honda XL 600 R
1986 Honda XL 600 R
1985 Honda XL 600 R
1985 Honda XR 350 R
1984 Honda XL 600 R
1984 Honda XR 350 R
1984 Honda XR 500 R
1983 Honda XL 600 R
1983 Honda XR 350 R
1983 Honda XR 500 R

OEM 31120-HN5-416
31120-KF0-004
31120-KF0-771
31120-KN5-004
31120-KN5-406
31120-KN5-416
31120-MG2-005
31120-MG2-015
31120-MG3-000
31120-MG3-005
31120-MG3-015
31120-MK2-005
31120-MK5-004
31120-MK5-406

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 130 mm

Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 5

Wire to wire resistance:
Alternator: White to Green = 0.4 ohms +/-20%
Alternator: Yellow to Red= 0.4 ohms +/-20%
Source: Green to Red/Black =14 ohms +/-20%

The CARM01050S stator looks very different from many of the compatible OEM Honda XR/XL 350/500/600 stators. However, it will work perfectly to replace and upgrade these parts.
To duplicate OEM functionality connect the Red/Black wire (ignition source coil), and the White wire (lighting coil) to their respective wires on the bike's harness, and ground the Green wire to the frame. The Yellow and Red wires can be insulated and tied up, unused.
Between the Yellow and Red wires is another 100 Watt coil that is floated, or NOT grounded to the stator core. This coil can be used with a regulator/rectifier to charge a battery, or to drive additional lights, heated grips, or other electrical accessories. If you are running an additional light directly from this coil (AC current), make sure to use an additional AC regulator to protect this lighting circuit (our CARM30Y15 regulator will work great!).
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
