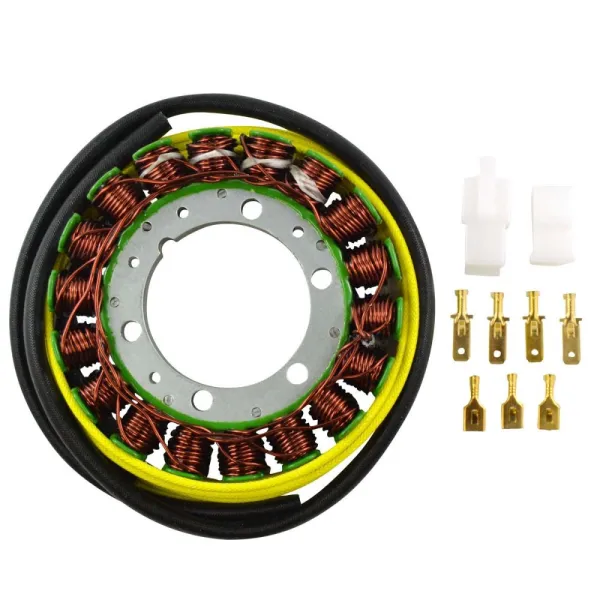

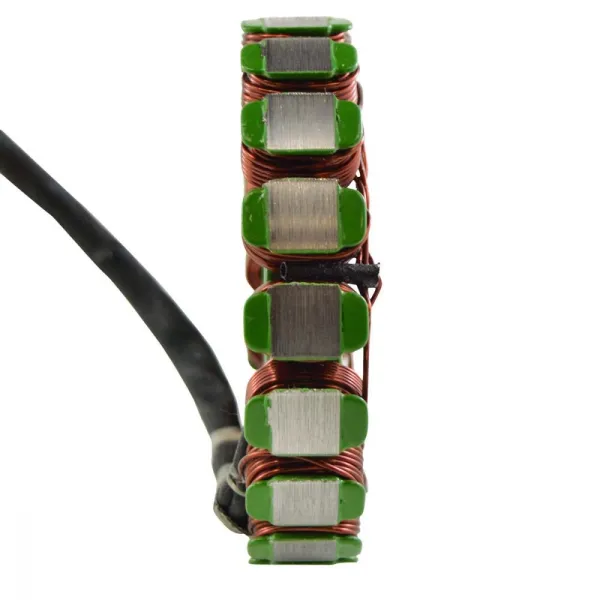

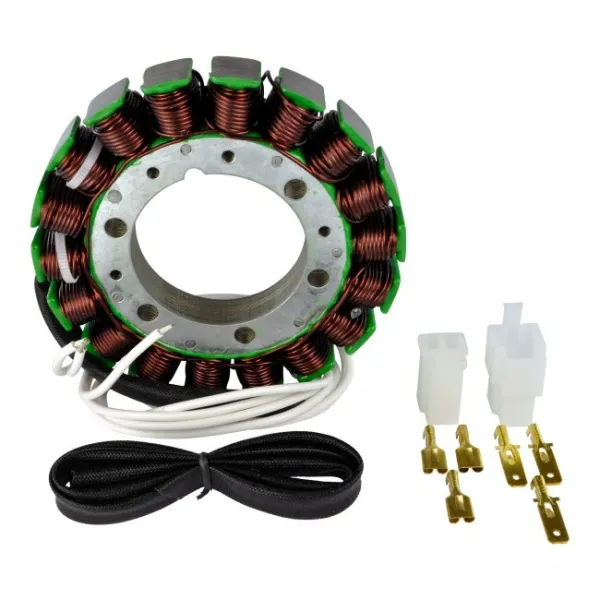

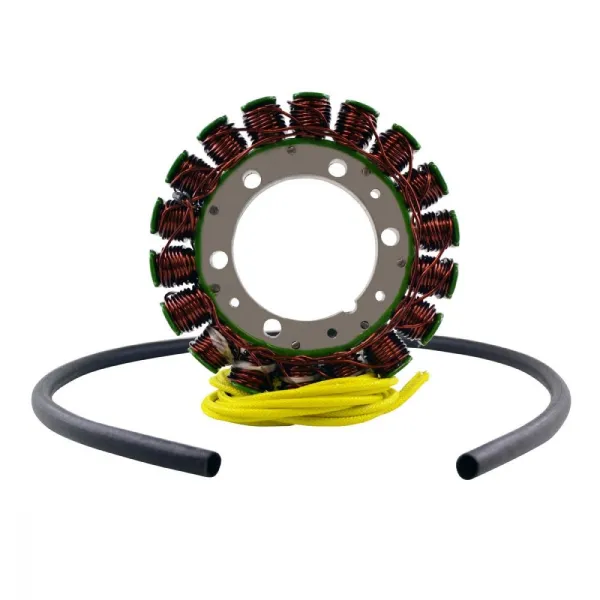

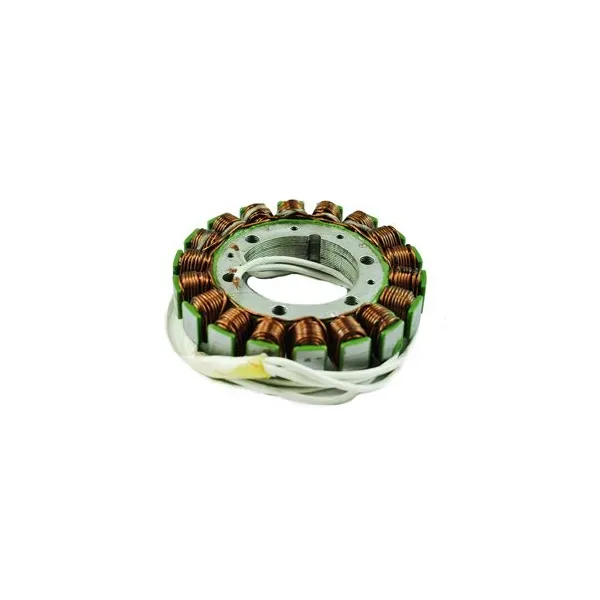

Stator-Honda-XR650L

Stator

Resistant to 200 degrees Celsius

1993-2024 Honda XR 650 L

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 115 mm

Thickness: 28 mm

Length of wires stator to terminals: 700 mm

Other specifications:

Number of wires:3

Number of pins:3

Wire to wire resistance:

Alternator: Between each White = 0.4 ohms +/-20%

OEM
31120-mk4-602
31120-mn9-025
31120-mw2-781
