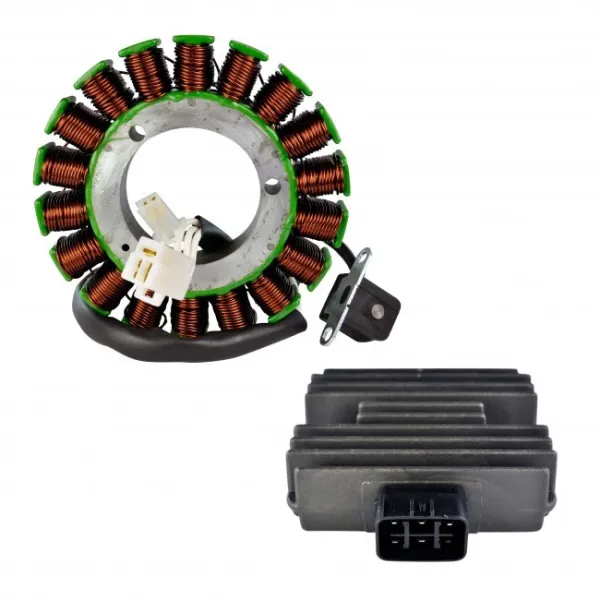

Stator Regulator Rectifier Yamaha XVS1100 VStar Silverado Custom Classic

Stator

2002 Yamaha V Star 1100 XVS1100
2002 Yamaha V Star 1100 Classic XVS1100A
2002 Yamaha V Star 1100 Custom XVS1100
2001 Yamaha V Star 1100 XVS1100
2001 Yamaha V Star 1100 Classic XVS1100A
2001 Yamaha V Star 1100 Custom XVS1100
2000 Yamaha V Star 1100 XVS1100
2000 Yamaha V Star 1100 Classic XVS1100A
2000 Yamaha V Star 1100 Custom XVS1100
1999 Yamaha V Star 1100 XVS1100

OEM
5EL-81410-00-00
5BN-81960-00-00



Stator

Number of wires : 3
Number of terminals : 3
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L ON DISPLAY
Pick up: White to Black = 190 ohms+/-20%

Voltage Regulator Rectifier

Number of pins : 6
Bracket center to center 72 mm
Thickness 28 mm
Height 84 mm

Stator Resistant to 200 degrees Celsius

Stator Pick-Up Pulsar Coil
