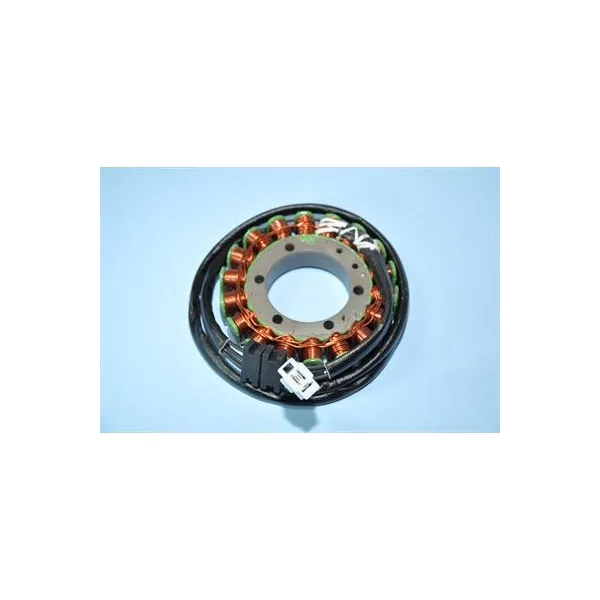

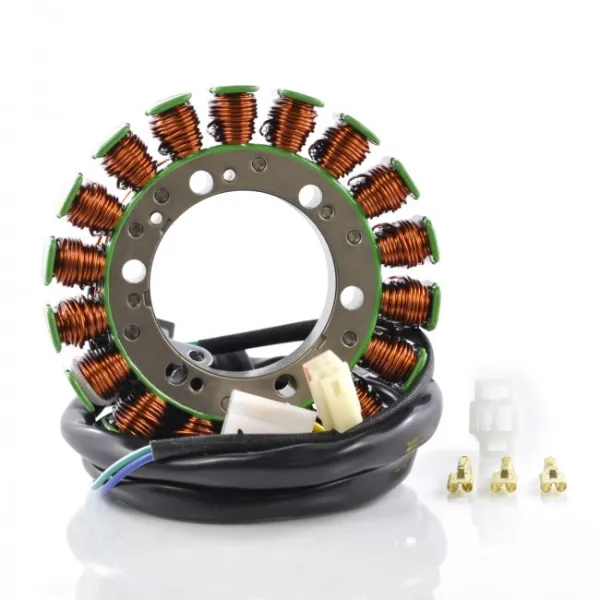

Stator-Yamaha-XVS650 VStar Classic-Custom-Silverado

Stator

    2003
        Yamaha
            V Star 650 Classic
                Motorcycle 2003 Yamaha V Star 650 Classic XVS650A
            V Star 650 Custom
                Motorcycle 2003 Yamaha V Star 650 Custom XVS650
            V Star 650 Silverado
                Motorcycle 2003 Yamaha V Star 650 Silverado XVS650AT
    2002
        Yamaha
            V Star 650 Classic
                Motorcycle 2002 Yamaha V Star 650 Classic XVS650A
            V Star 650 Custom
                Motorcycle 2002 Yamaha V Star 650 Custom XVS650
    2001
        Yamaha
            V Star 650 Classic
                Motorcycle 2001 Yamaha V Star 650 Classic XVS650A
            V Star 650 Custom
                Motorcycle 2001 Yamaha V Star 650 Custom XVS650
    2000
        Yamaha
            V Star 650 Classic
                Motorcycle 2000 Yamaha V Star 650 Classic XVS650A
            V Star 650 Custom
                Motorcycle 2000 Yamaha V Star 650 Custom XVS650
    1999
        Yamaha
            V Star 650 Classic
                Motorcycle 1999 Yamaha V Star 650 Classic XVS650A
    1998
        Yamaha
            V Star 650 Classic
                Motorcycle 1998 Yamaha V Star 650 Classic XVS650A

OEM 4VR-81410-00-00

Dimensions :
Interior diameter : 55 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 780 mm
Length of pickup coil's wire to grommet : 200 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Wire to wire resistance :
Alternator : White Between each White = 0.4 ohms +-20%
Pickup : Black To White = 200 ohms +-20%
