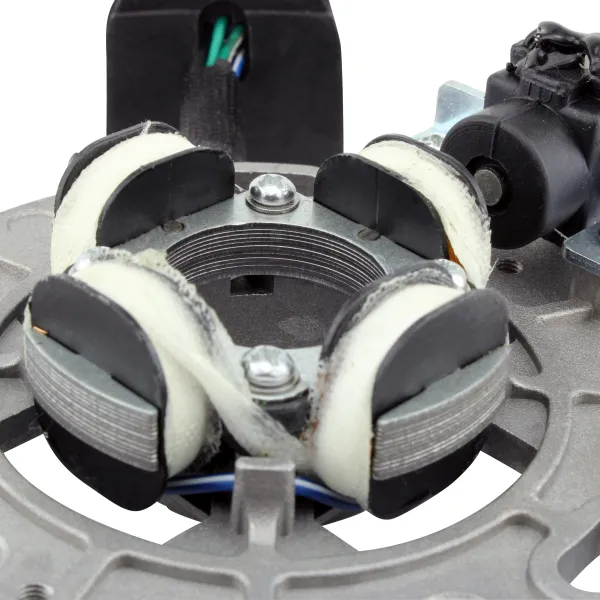

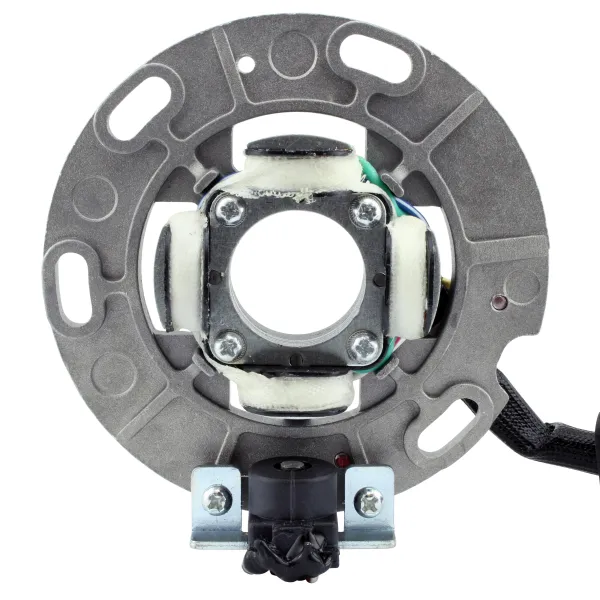

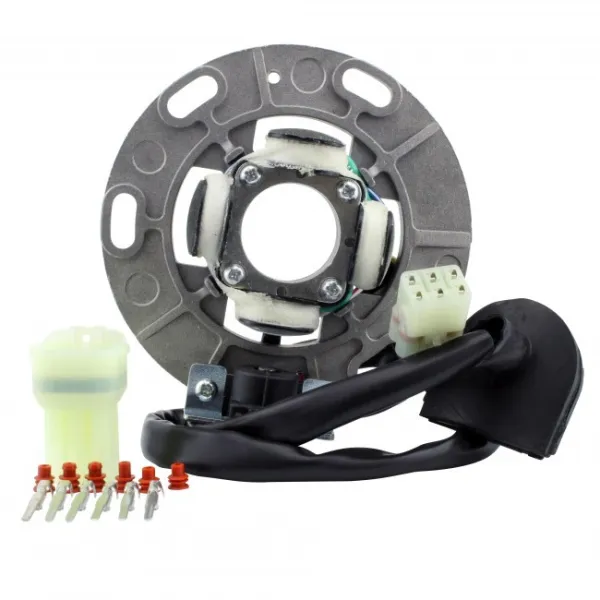

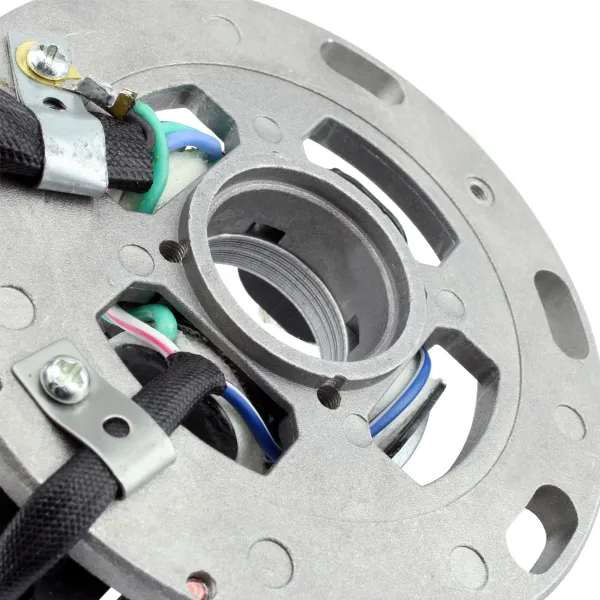

Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00
Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00

Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00

€168.00 Tax included

Stator Yamaha YZ250 YZ250X OEM 5CU-85560-20-00

Reference
CARMS010-102117
7-8 Days

Stator Yamaha

YZ 250 2006-2025

YZ 250 X 2016-2025

OEM 5CU-85560-20-00
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 59.30 mm
Thickness : 33 mm
Length of wires stator to grommet : 32 mm
Length of wires grommet to plug : 320 mm
Other specifications :
Number of wires : 6

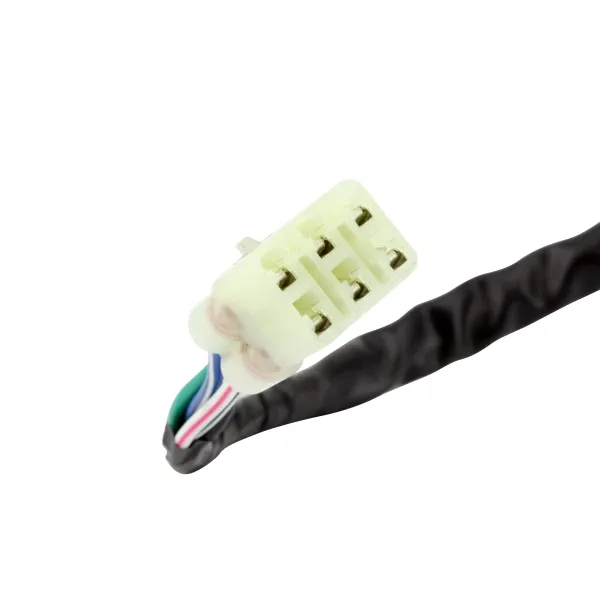

Number of plugs : 1
Number of pins : 6
Number of poles : 4

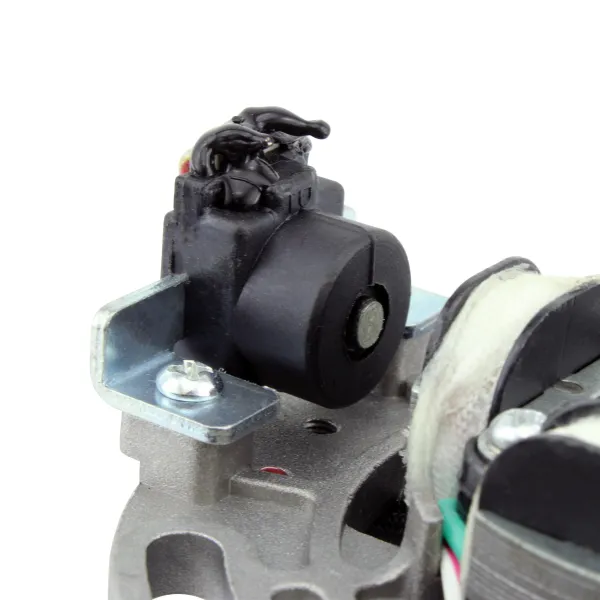

Pickup : White/Blue to White/Red = 285 ohms +-20%
Source #1 : Green/White to Green = 54 ohms +-20%
Source #2 : Black/Red to Black = 875 ohms +-20%

Ignition Only
