€190.80 Tax included

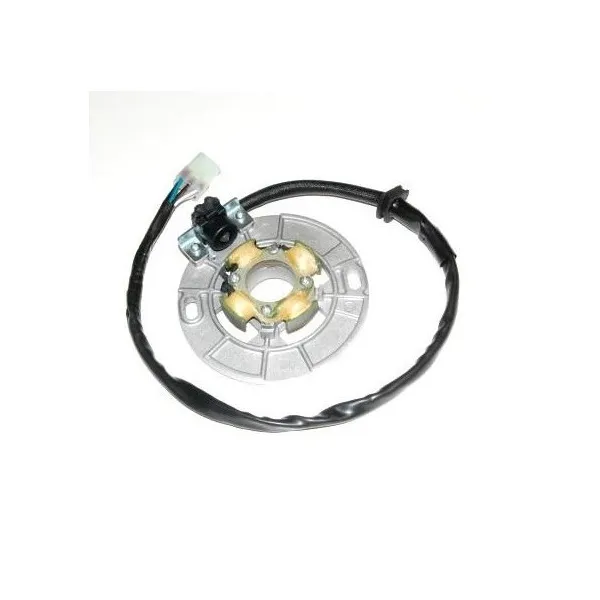

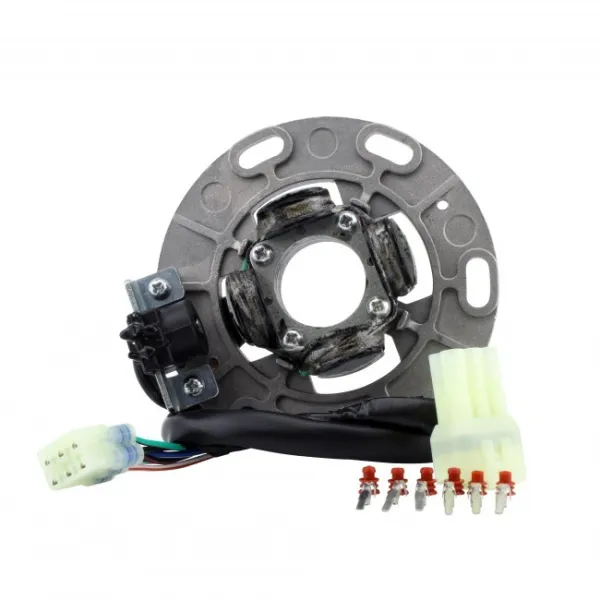

Stator Yamaha YZ85 (02-20)

Reference
CARMS010-105901
Contact Us

Stator Yamaha

2018-2020 Yamaha YZ 65
2002-2020 Yamaha YZ 85
OEM 5PA-85560-00-00
5PA-85560-01-00
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 60 mm
Thickness : 8 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to stator : 59 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Number of poles : 4
