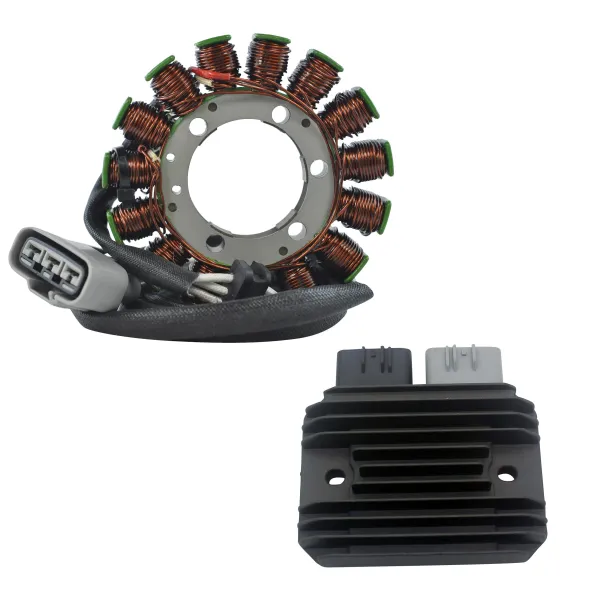

Kit Stator Regulator Rectifier Kawasaki Ninja ZX6R 2009-2012

Kit Stator Regulator Rectifier

Stator Resistant to 200 degrees Celsius

Kawasaki Ninja ZX6R 2009-2012

OEM
Stator
21003-0083
Voltage Regulator Rectifier
21066-0028
21066-0731
99999-0377

Stator
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 106 mm
Thickness : 15 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 775 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White Between Each White = 0.04 ohms +/-20%

Voltage Regulator Rectifier
Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 600mm
Other specifications :
Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
