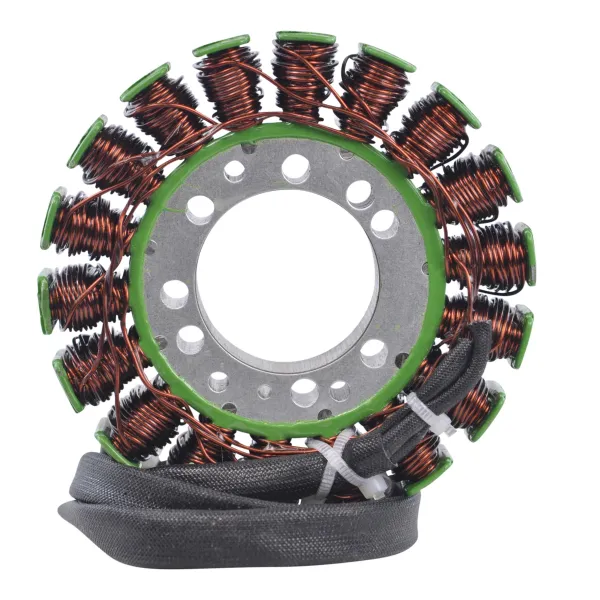

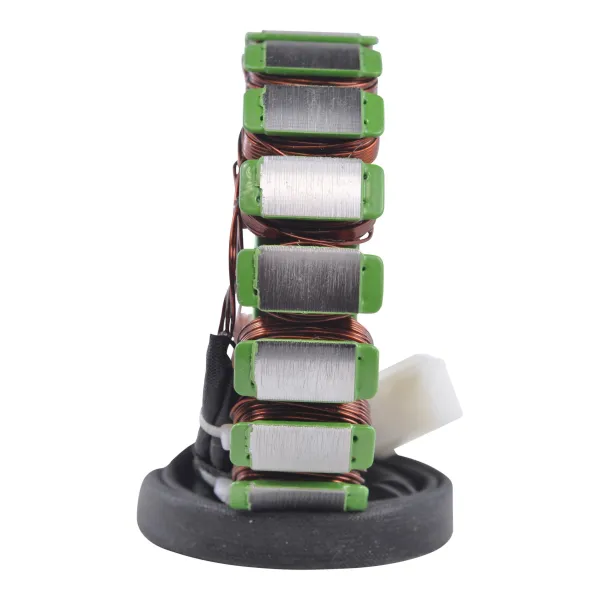

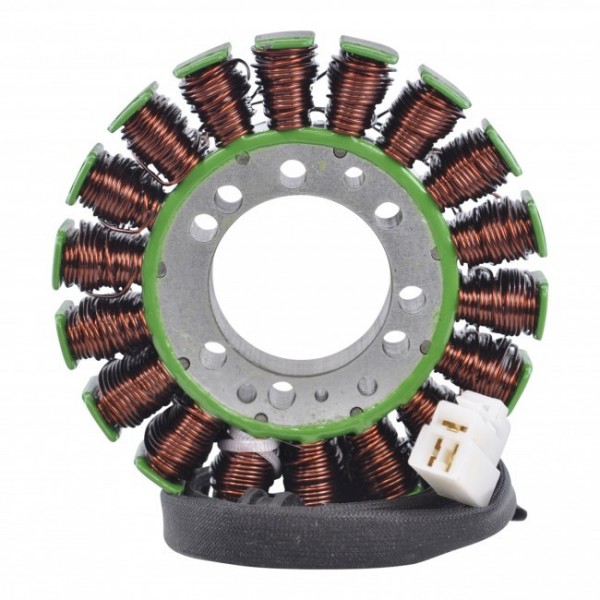

Stator-Triumph-Tiger 1050-Speed Triple 1050-Sprint ST1050

Stator

Resistant to 200 degrees Celsius

2020 Triumph Sprint ST 1050
2020 Triumph Sprint GT 1050
2019 Triumph Sprint ST 1050
2019 Triumph Sprint GT 1050
2018 Triumph Speed Triple 1050
2018 Triumph Tiger 1050
2018 Triumph Sprint GT 1050
2017 Triumph Speed Triple 1050
2017 Triumph Tiger 1050
2017 Triumph Sprint GT 1050
2017 Triumph Speed Triple 1050 R
2016 Triumph Speed Triple 1050
2016 Triumph Tiger 1050
2016 Triumph Sprint GT 1050
2016 Triumph Speed Triple 1050 R
2015 Triumph Speed Triple 1050
2015 Triumph Tiger 1050
2015 Triumph Sprint GT 1050
2015 Triumph Speed Triple 1050 R
2014 Triumph Speed Triple 1050
2014 Triumph Tiger 1050
2014 Triumph Sprint GT 1050
2014 Triumph Speed Triple 1050 R
2013 Triumph Speed Triple 1050
2013 Triumph Tiger 1050
2013 Triumph Sprint GT 1050
2013 Triumph Speed Triple 1050 R
2012 Triumph Speed Triple 1050
2012 Triumph Sprint ST 1050
2012 Triumph Tiger 1050
2012 Triumph Sprint GT 1050
2012 Triumph Speed Triple 1050 R
2011 Triumph Speed Triple 1050
2011 Triumph Sprint ST 1050
2011 Triumph Tiger 1050
2011 Triumph Sprint GT 1050
2011 Triumph Speed Triple 1050 R
2010 Triumph Speed Triple 1050
2010 Triumph Sprint ST 1050
2010 Triumph Tiger 1050
2010 Triumph Sprint GT 1050
2009 Triumph Speed Triple 1050
2009 Triumph Sprint ST 1050
2009 Triumph Tiger 1050
2008 Triumph Speed Triple 1050
2008 Triumph Sprint ST 1050
2008 Triumph Tiger 1050
2007 Triumph Speed Triple 1050
2007 Triumph Sprint ST 1050
2007 Triumph Tiger 1050
2006 Triumph Speed Triple 1050
2006 Triumph Sprint ST 1050
2006 Triumph Tiger 1050
2005 Triumph Speed Triple 1050
2005 Triumph Sprint ST 1050
2004 Triumph Speed Triple 1050
2003 Triumph Speed Triple 1050
2002 Triumph Speed Triple 1050
2001 Triumph Speed Triple 1050
2000 Triumph Speed Triple 1050
1999 Triumph Speed Triple 1050
1998 Triumph Speed Triple 1050
1997 Triumph Speed Triple 1050
1996 Triumph Speed Triple 1050
1995 Triumph Speed Triple 1050
1994 Triumph Speed Triple 1050

OEM
T1300111
T1300509

Exterior Diameter: 115mm
Interior Diameter: 42mm
Thickness: 21mm


Other specifications :
Number of wires = 3

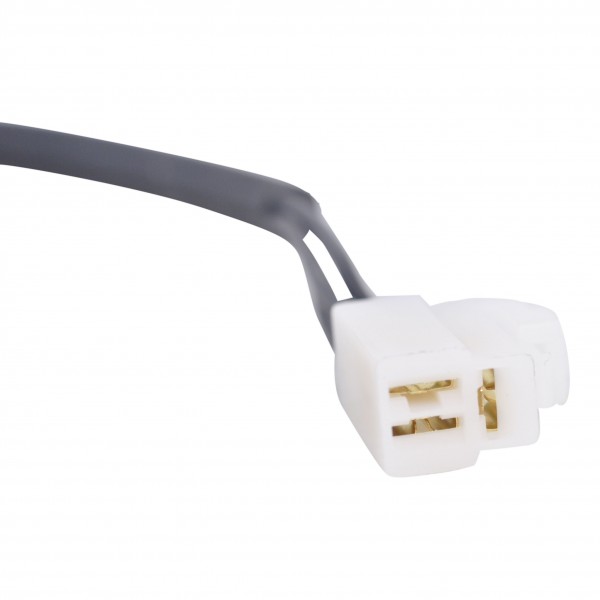

Number of plug = 1
Number of terminals = 3
Harness length Stator to grommet = 110 mm
Harness length grommet to plug = 600 mm
Wire to wire resistance :
Alternator : Black between each black = 0.5 ohms +/- 20%
