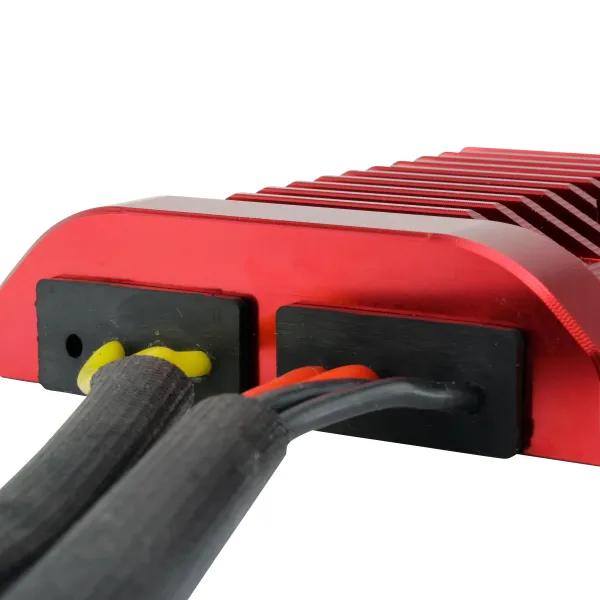

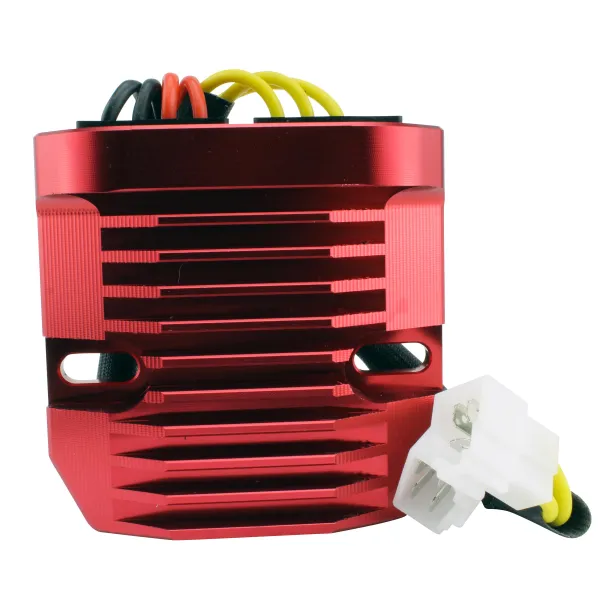

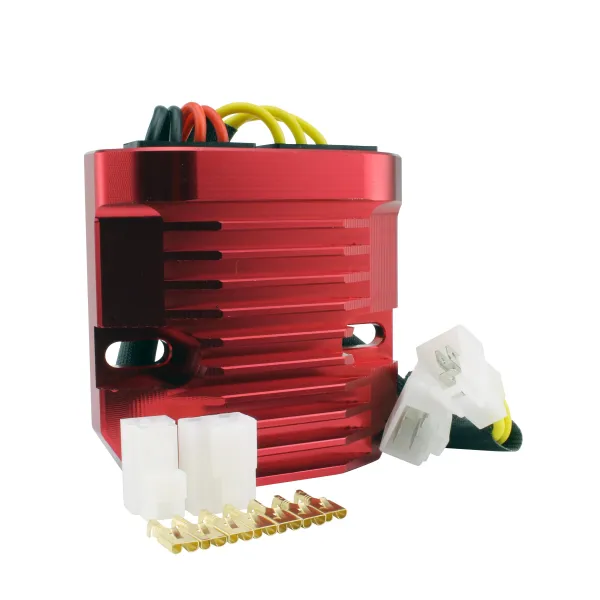

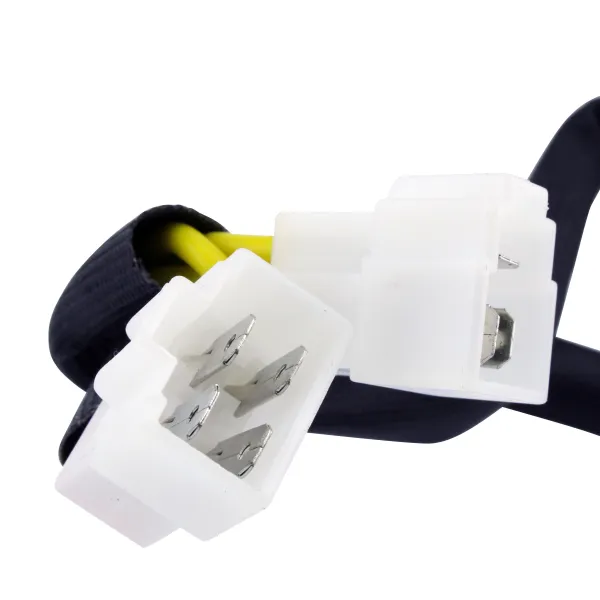

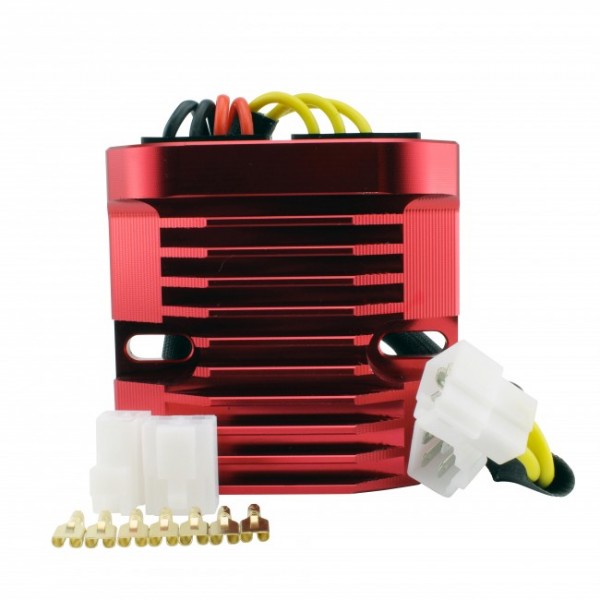

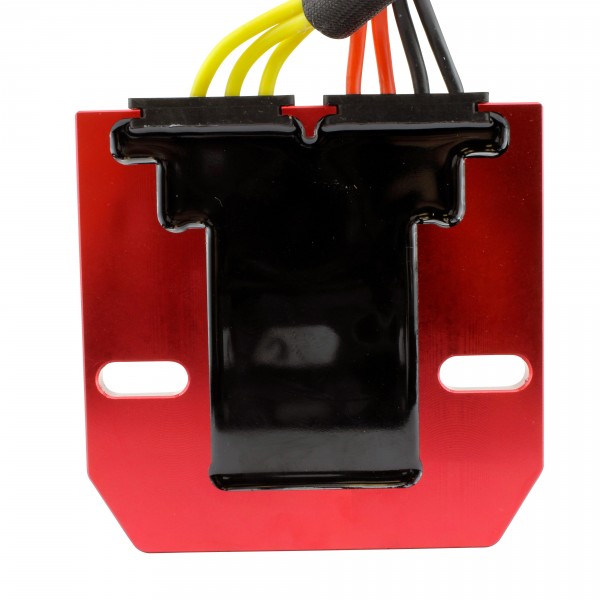

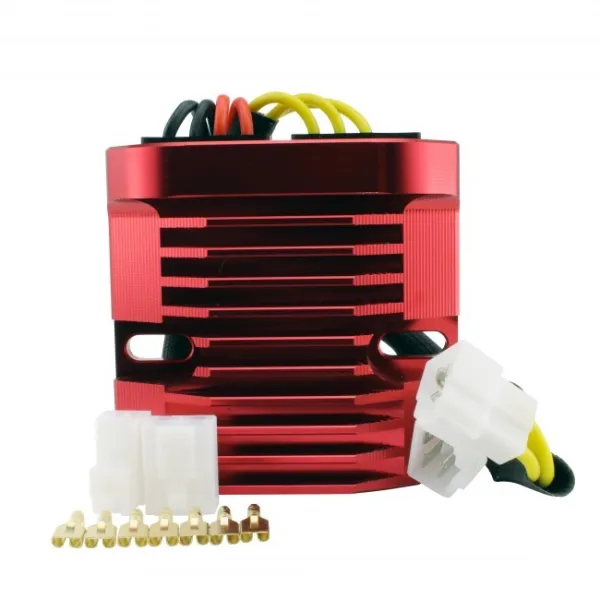

Aluminum Mosfet Regulator Triumph Street Triple 675R Tiger 955 Tiger 1050 OEM T1300560 T1304040

Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Fixation holes center to center: 79 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰

Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
