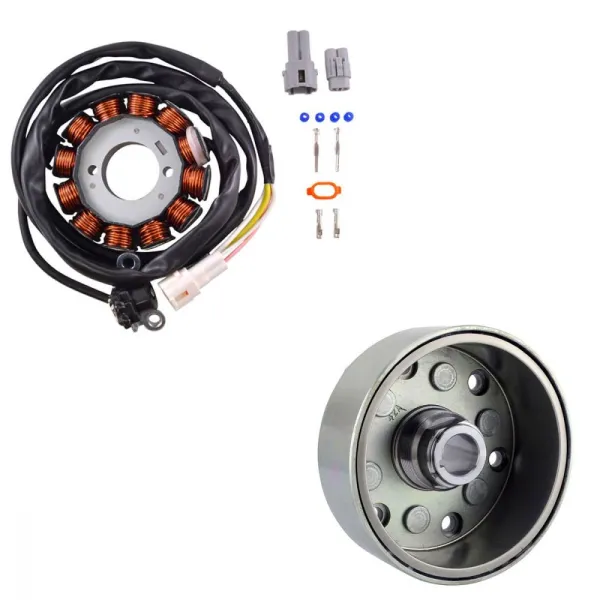

Stator Rotor 140W Yamaha YFZ450 OEM 5TG-81450-00-00 5TG-81410-00-00

Stator Rotor 140W Yamaha YFZ450

OEM 5TG-81450-00-00 5TG-81410-00-00

• 2024 Yamaha YFZ 450 R SE
• 2013 Yamaha YFZ 450
• 2012 Yamaha YFZ 450
• 2009 Yamaha YFZ 450
• 2008 Yamaha YFZ 450 SE II
• 2008 Yamaha YFZ 450 SE
• 2008 Yamaha YFZ 450
• 2007 Yamaha YFZ 450 SE II
• 2007 Yamaha YFZ 450 SE
• 2007 Yamaha YFZ 450 Bill Balance
• 2007 Yamaha YFZ 450
• 2006 Yamaha YFZ 450 SE
• 2006 Yamaha YFZ 450 Bill Balance
• 2006 Yamaha YFZ 450
• 2005 Yamaha YFZ 450 SE
• 2005 Yamaha YFZ 450
• 2004 Yamaha YFZ 450 SE
• 2004 Yamaha YFZ 450

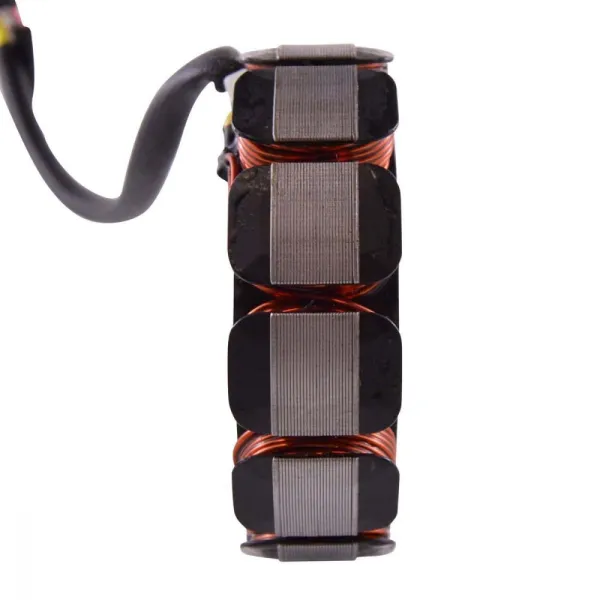

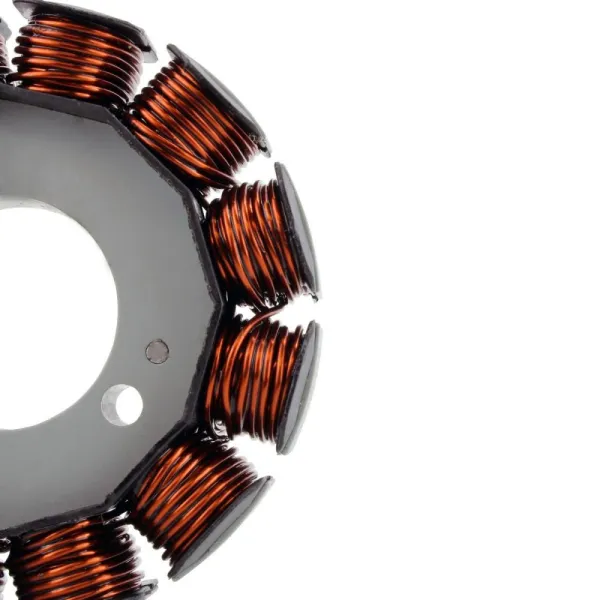

Dimensions Stator:

Interior diameter: 30 mm

Exterior diameter: 84 mm

Thickness: 12 mm

Length of wires stator to grommet: 180 mm

Length of wires grommet to plug: 980 mm

Length of pickup coil's wire to grommet: 95 mm

Other specifications:

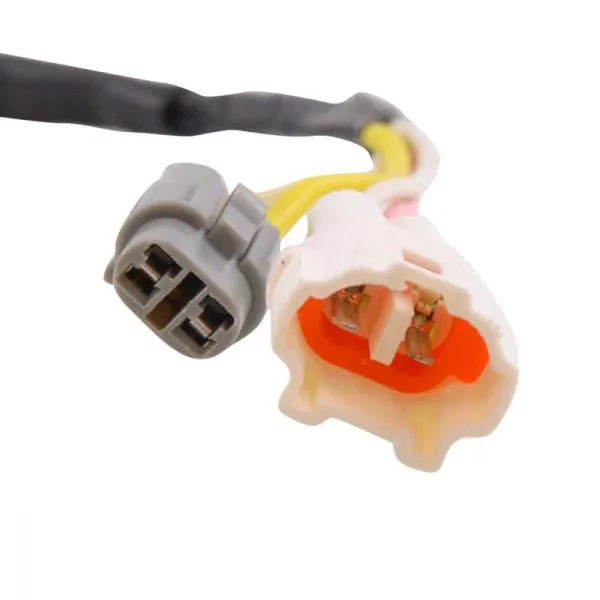

Number of wires: 4

Number of plugs: 2

Number of pins: 4

Wire to wire resistance:

Alternator: White to Yellow = 0.3ohms +/-20%

Pickup: White to Red = 264ohms =+/-20%

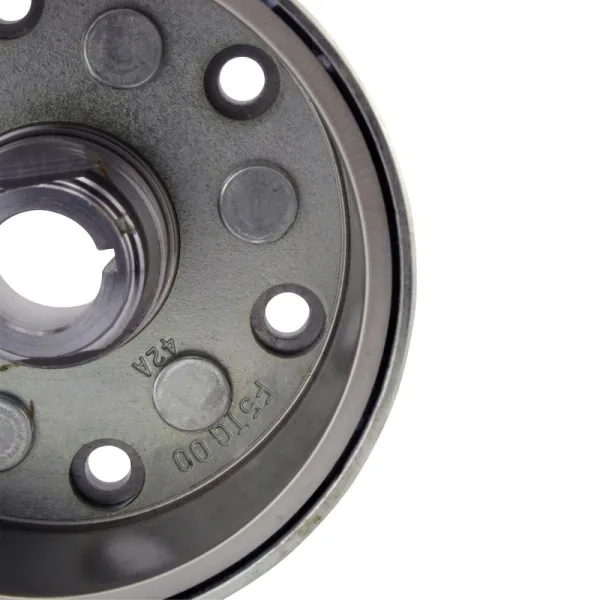

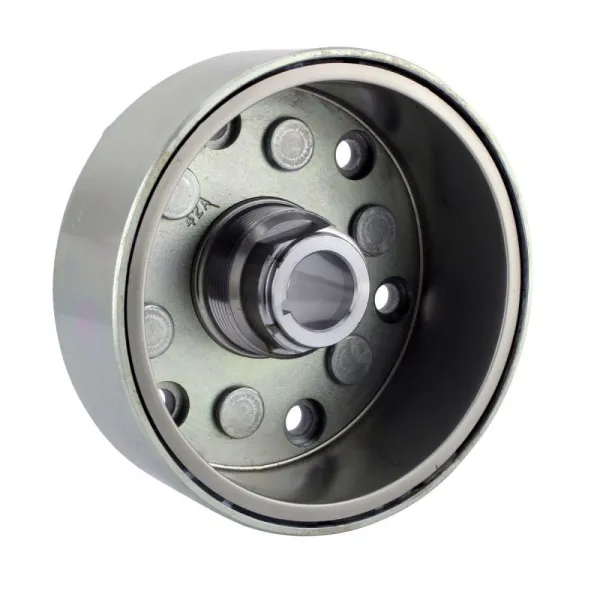

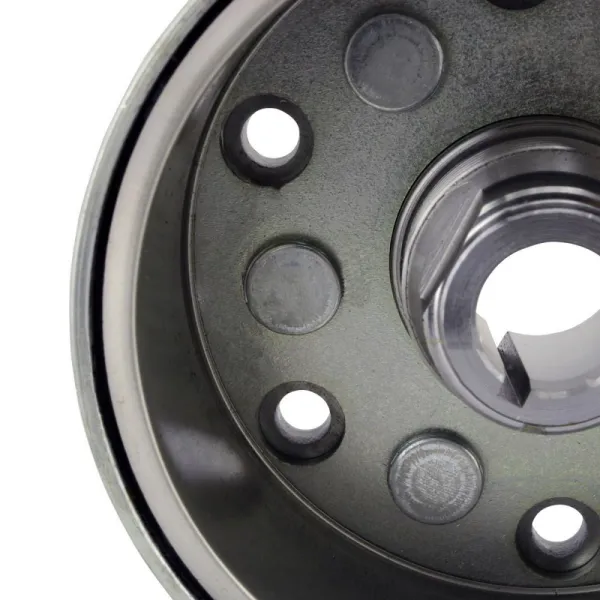

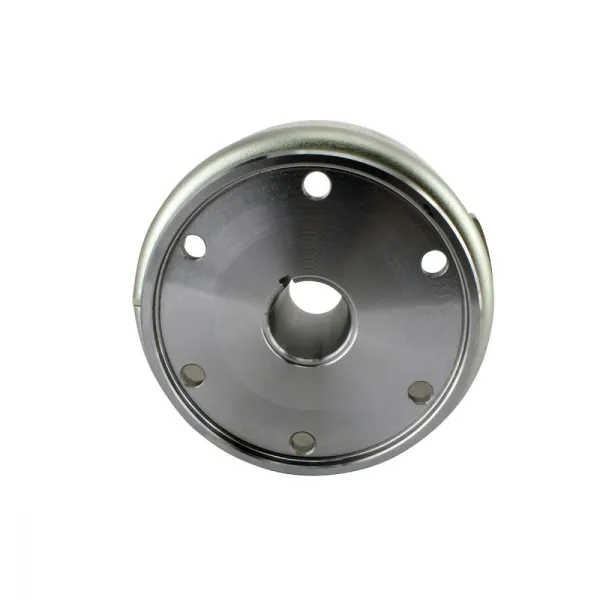

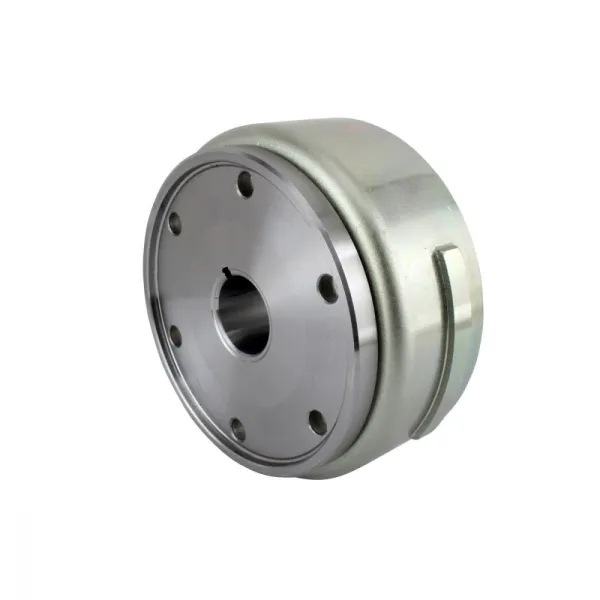

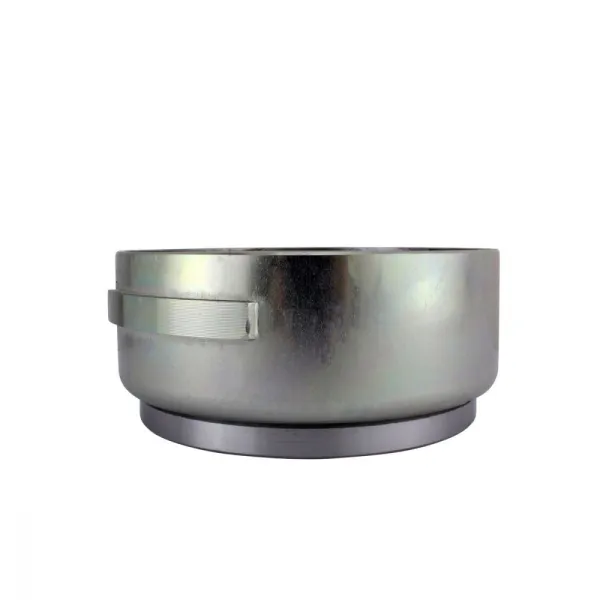

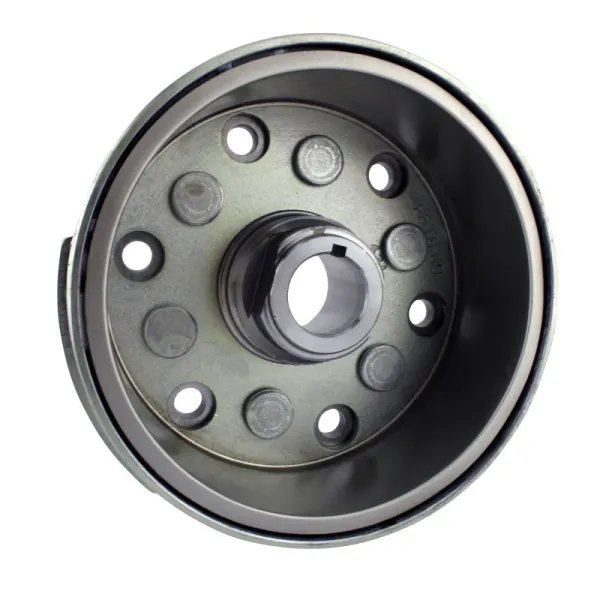

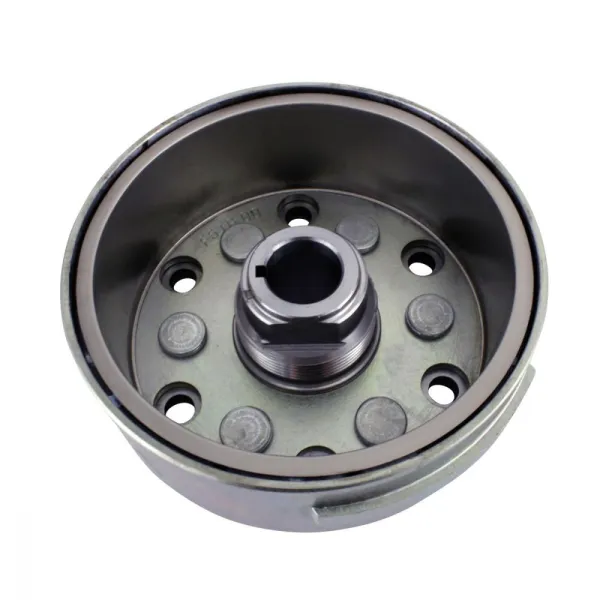

Specifications of Flywheel:

Dimensions:

Exterior Diameter: 100.4 mm

Interior Diameter: 86.5 mm

Interior Diameter Center Housing: 16 mm

Exterior Diameter Center Housing: 28 mm & 33 mm

Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
